Specifications
Brand Name :
XBY
Model Number :
CD11
Certification :
CE , ISO
Place of Origin :
China
MOQ :
1Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100 Set / Month
Delivery Time :
15 days after recive deposite
Packaging Details :
Standard Export Packing
Product Name :
Refrigerator
Usage :
Store Food
Compressor Brand :
Copeland
Panel Material :
Polyurethane insulation panel
Size :
Customized
Description

Commercial Customized Cold Storage Room For Supermarket / Coffee Shop

Project Instruction :

These two commercial cold storage room for coffee shop , one is freezer ( -18℃ ) , another is cold room ( +3℃ ) . More details as following :

Item No. Description Specification Qty
1 Cold Room

Cold Room Size : 3000L x 2200W x 2400H ( mm )

Wall & Ceiling Panel : Double painted color steel PU panel ( Thickness : 100mm )

Flooring panel : Inside painted Anti - Skidding Aluminum & outside painted color steel PU panel ( Thickness : 100mm )

Double Painted Color Steel Convex Door ( 800 * 1900mmH , Thickness : 100mm )

Temperature :+3℃

Refrigeration Unit: Air Cooled Split Refrigeration Unit 2P ( +3℃ )

 1set
2 Freezer

Freezer Size : 2300L x 1600W x 2400H

Wall & Ceiling Panel : Double painted color steel PU panel ( Thickness : 100mm )

Flooring panel : Inside painted Anti - Skidding Aluminum & outside painted color steel PU panel ( Thickness : 100mm)

Double Painted Color Steel Convex Door (800*1900mmH, Thickness : 100mm)

Temperature :-18℃

Refrigeration Unit : Air Cooled Split Refrigeration Unit 2P ( -18℃ )

 1set

Room Temperature For Your Reference :

Store Goods Temperature Range
Processing Room 10℃
Fruit , Vegetable , Dry Food 0℃ ~ 5℃
Medicine , Cake , Pastry , Chemical Material - 5℃ ~ 0℃
Ice Storage Room - 5℃ ~ - 10℃
Fish , Meat Storage - 18℃ ~ - 25℃
Deep Freezer - 25℃ ~ - 35℃

FAQ :

As all of our products are customized , before i can provide the quotation , please confirm the following requests :

1 . Dimension of the cold room and door ? L * W * H ( mm )
2 . What kind of cargos is gonna store in the room ?
3 . Daily be put in storage ( kg / day ) and total storage capacity ( kg )
4 . Required temperature inside the cold room ( °C ) .
5 . Entering temperature of cargo before putting into the cold room ( °C ) .
6 . Local power supply voltage ( V / Hz )

Please try to provide the answers to the above questions .

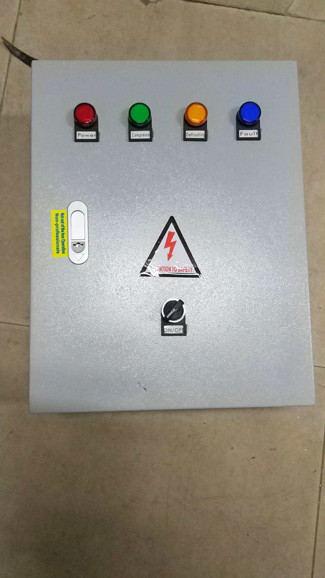

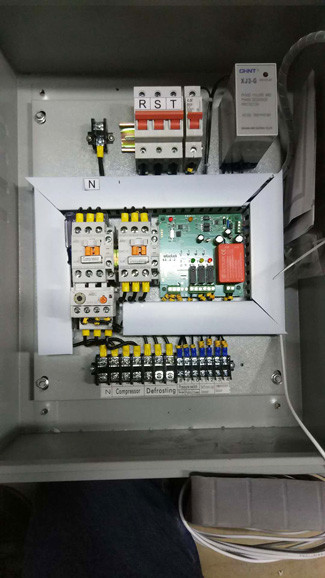

Unit Parts Picture Show :

Supermarket Cold Room Floor Construction , Coffee Shop Walk In Cold RoomSupermarket Cold Room Floor Construction , Coffee Shop Walk In Cold Room
