Semi Trailer Carrier Truck Refrigeration Units Self Powered Vector 1550
Semi Trailer Carrier Truck Refrigeration Units Self Powered Vector 1550
Specifications
Brand Name :
Carrier
Model Number :
Carrier
Place of Origin :
China
MOQ :
2
Price :
USD
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 Unit
Delivery Time :
20-35 work day
Packaging Details :
standard parking
Installation Kits:: :
Rubber Hoses, Drain Water Hoses, Wiring Harness Etc
Application: :
Cold Storage Room Freezer Room
Refrigerant: :
R404a
Condition: :
New
Operation :
High Speed Engine Operation
Rating :
24.8Hp (18.5Kw)@1,800RPM
Description

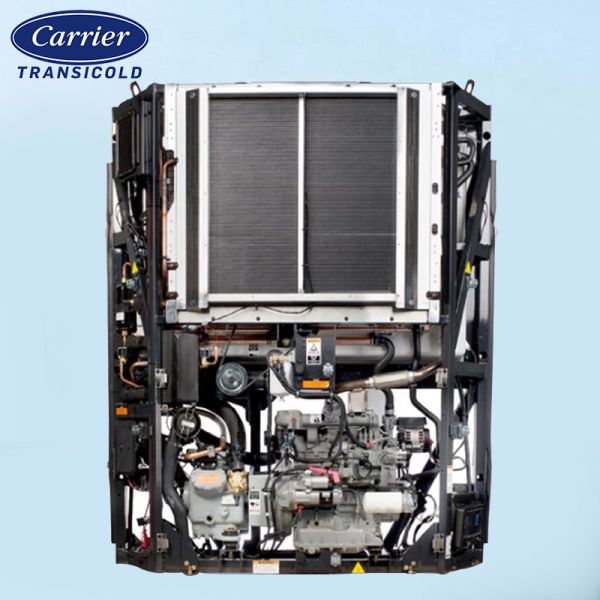

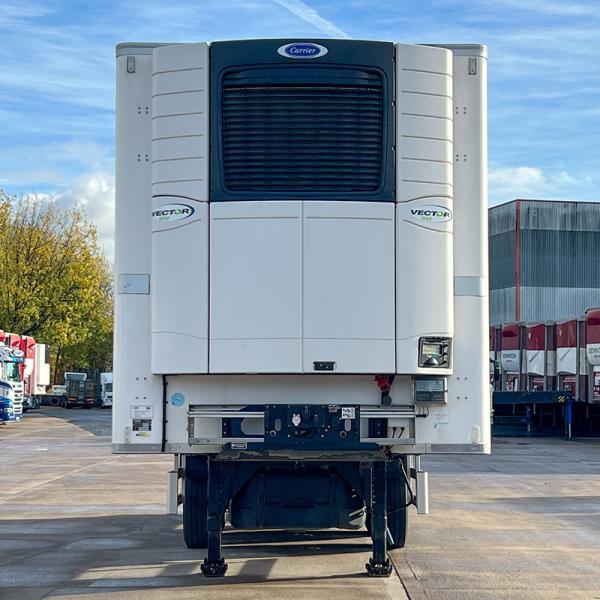

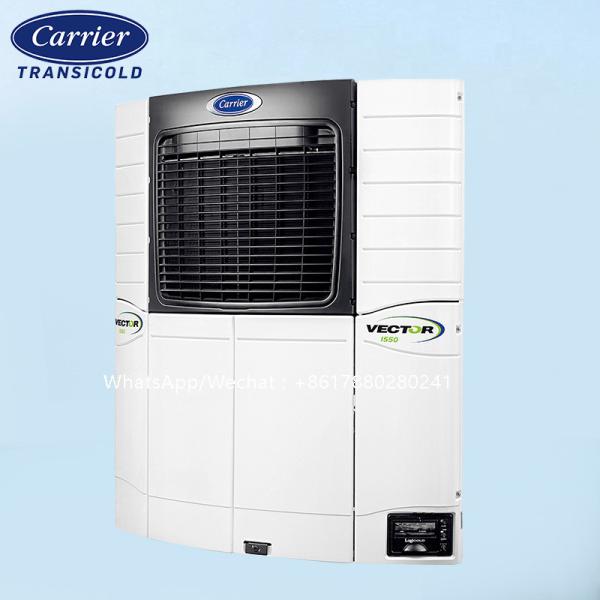

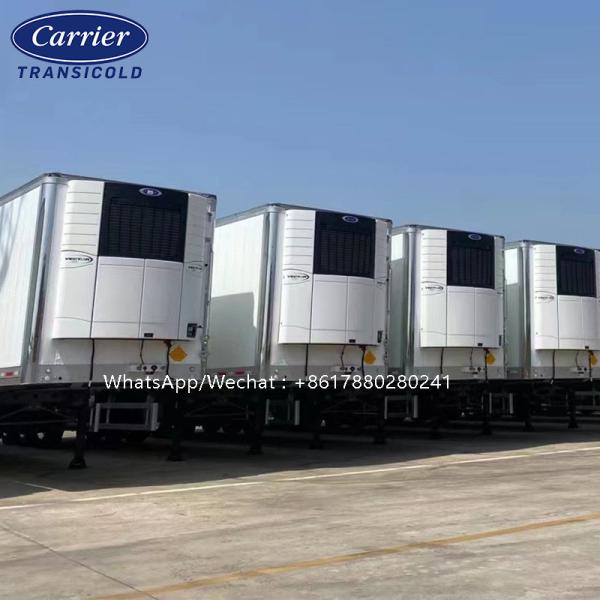

Carrier Vector 1550 Self-Powered Refrigeration Semi-Trailer Truck Refrigeration Units
Product Overviews
Refrigeration Unit Brand
Carrier
Refrigeration Unit Model
Vector 1550
Refrigeration Unit Type
Self-Powered Diesel Engine Driven, Condenser & Evaporator Combined
Refrigerant
HFC R404a
Condenser Mounted Method
Front Wall
Airflow
*On High Speed Engine Operation & 0Pa Static Pressure
Airflow Volume
5,180m3/Hr
Discharge Velocity (Air Throw)
Refrigeration Capacity:System Net Cooling Capacity
@ 100F (+38C) Ambient Temperature Per A.T.P. Procedure
Evaporator
Return
Air
Temperature
Refrigeration Capacity
(High Speed Diesel or Electric Standby Operation)
Btuh
Watts
35F(+2C)
66,000
19,345
0F(-18C)
35,000
10,260
-20F(-29C)
23,000
6,740
Automatic Hot Gas Defrost/Manual Defrost
Compressor
Features
The proven, large-displacement Carrier 05G compressor delivers higher capacity, high efficiency, and faster pulldown at lower speeds. Its superior efficiency reduces horsepower, saves fuel, and extends unit life. truck refrigeration units
Compressor Type
05G-41CFM truck refrigeration units truck refrigeration units truck refrigeration units
Compressor Displacement
40 in3
Max. Recommended Speed
1,350-1,800 RPM
Self-Powered Diesel Engine
*Only For Self-Powered Diesel Engine Driven Refrigeration Unit
Model
Tier 4 Final V2203L
Type
Smart Diesel Engine
Displacement
135in3 (2,216cm3)
No. of Cylinders
4
Rating
24.8Hp (18.5Kw)@1,800RPM
Oil Capacity
156qt. (14.2L)

For every mission, there is a Vector®.

Delivering fresh and frozen goods from “farm to fork” is a complex process - and the key to success is your equipment. It needs to be performant and reliable regarding each specific aspect of your mission. Our Vector range helps you take on the challenge with three specialized refrigeration units. Each unit is designed to maximize your cold chain performance, optimize your cost of ownership and minimize your environmental footprint

C-Series:
Carrier Transicold’s Citimax Refrigeration Unit Performance
Your cold chain is consistently under control
Your temperature-sensitive products must be delivered in ideal condition.
They need a stable environment during transportation with controlled temperature
and the ability to maintain the integrity of the cold chain. Citimax range allows you
to deliver fresh and frozen products safely and with confidence thanks to the cooling
power, the high refrigeration capacity (up to 58 m3) and easy fitting for any box size

.

C-Series Product Model:

Dimension(mm):
