380V 3pH 50Hz Unit-Spb05kl Air Cooled Condenser for Model 4Des-5y
380V 3pH 50Hz Unit-Spb05kl Air Cooled Condenser for Model 4Des-5y
380V 3pH 50Hz Unit-Spb05kl Air Cooled Condenser for Model 4Des-5y
380V 3pH 50Hz Unit-Spb05kl Air Cooled Condenser for Model 4Des-5y
380V 3pH 50Hz Unit-Spb05kl Air Cooled Condenser for Model 4Des-5y
380V 3pH 50Hz Unit-Spb05kl Air Cooled Condenser for Model 4Des-5y
Specifications
Brand Name :
RFJ
Model Number :
Spb03kl
Certification :
CC
Place of Origin :
China
MOQ :
1piece
Price :
discussed
Payment Terms :
T/T, Western Union
Supply Ability :
10000pieces
Delivery Time :
3-7 days
Packaging Details :
wooden packaging
Color :
Blue
Power Supply :
380V 3pH 50Hz
Cooling Capacity :
15.61kw
Input Power :
6.44kw
Original :
China
Tyoe :
condensing unit
OEM service :
Yes
Description
Unit-Spb05kl Air-Cooled Compressor Condensing for Model 4Des-5y


Product Description
Fan speed regulator:
Adjust condensing fan according to condensing temp.
Operation data display function:
To check important data such as current of compressor, and condensing temp.
System alarm function:
When fault effects, the system will make alarm sound to remind user
Independent Operation board:
1. For temp. showing, defrosting controlling, operation system data checking and temp. alarming
2. Can be installed anywhere available.

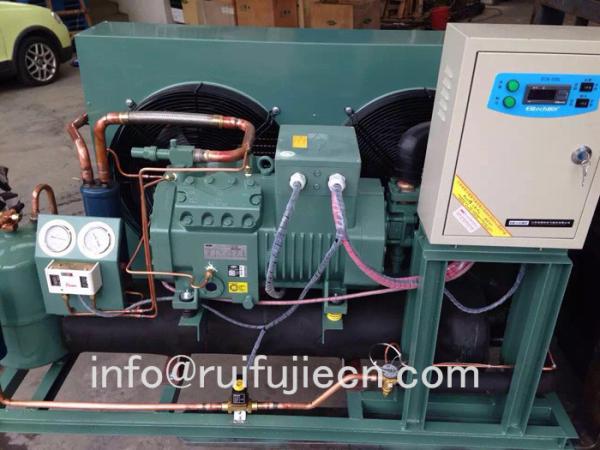

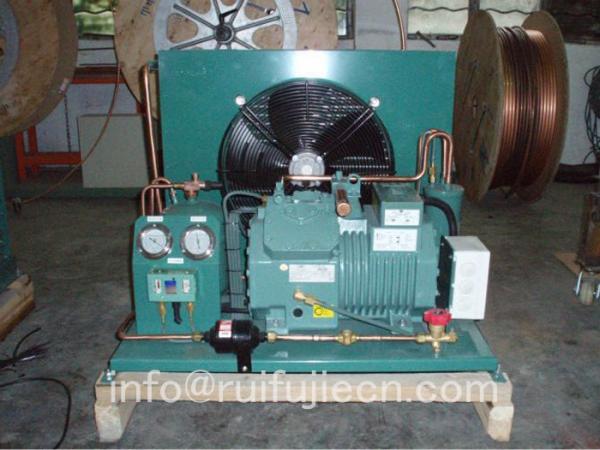

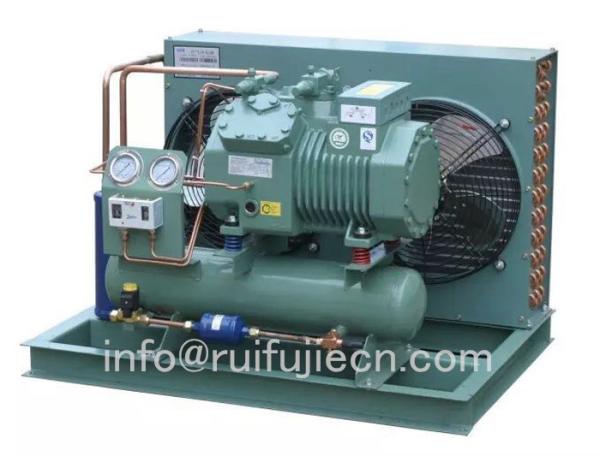

2.Picture

380V 3pH 50Hz Unit-Spb05kl Air Cooled Condenser for Model 4Des-5y

380V 3pH 50Hz Unit-Spb05kl Air Cooled Condenser for Model 4Des-5y

3.Technical

Technical Data Of Air Cooled Compressor Condensing Unit
Technical Data For Air-cooled Compressor Condensing Unit with medium & LowTemperature
Condensing Unit model Compressor Model Power Supply refrigerating capacity(KW) input power(KW)
SPB03KL 2CES-3Y 380V/3PH/50HZ 4.77 2.91
SPB04KL 4EES-4Y 6.49 4.05
SPB05KL 4DES-5Y 7.55 4.79
SPB06KL 4CES-6Y 9.28 5.66
SPB09KL 4TES-9Y 11.41 6.74
SPB12KL 4PES-12Y 12.64 7.34
SPB14KL 4NES-14Y 15.50 9.11
SPB18KL 4HE-18Y 21.90 12.67
SPB23KL 4GE-23Y 25.80 15.06
SPB28KL 6HE-28Y 32.30 18.68
SPB34KL 6GE-34Y 38.80 22.90
SPB44KL 6FE-44Y 46.20 27.50

4.FAQ

* Why we choose such big compressor horsepower?

Fresh food has a lot of heat and need the big compressor horsepower to cool down within 4-6 hours.

* Why does the blast cold room need to use the vertical air cooler?

The vertical air cooler have big fin spacing, big air flow and very easy to install.

* Can the blast freezer cooling time be shorter?

4-6 hours is fast enough and very economical. 2-3 hours will need even bigger horsepower compressor and more expensive.
