Compressor Air Cooled Condensing Unit / Cold Storage Room Model Spb12km
Compressor Air Cooled Condensing Unit / Cold Storage Room Model Spb12km
Compressor Air Cooled Condensing Unit / Cold Storage Room Model Spb12km
Compressor Air Cooled Condensing Unit / Cold Storage Room Model Spb12km
Compressor Air Cooled Condensing Unit / Cold Storage Room Model Spb12km
Compressor Air Cooled Condensing Unit / Cold Storage Room Model Spb12km
Specifications
Brand Name :
RFJ
Model Number :
SPB12KM
Certification :
CC
Place of Origin :
China
MOQ :
1piece
Price :
discussed
Payment Terms :
T/T, Western Union
Supply Ability :
10000pieces
Delivery Time :
3-7 days
Packaging Details :
wooden packaging
Color :
Blue
Power Supply :
380V 3pH 50Hz
Cooling Capacity :
15.61kw
Input Power :
6.44kw
Original :
China
Tyoe :
condensing unit
OEM service :
Yes
Description
Compressor Air Cooled Cold Room Condensing Unit Model Spb12km

1.Product Description
Multi protections:
Phase protection, phase lack, over current, constantly starts of compressor, discharge temp.
Fan speed regulator:
Adjust condensing fan according to condensing temp.
Operation data display function:
To check important data such as current of compressor, and condensing temp.
System alarm function:
When fault effects, the system will make alarm sound to remind user

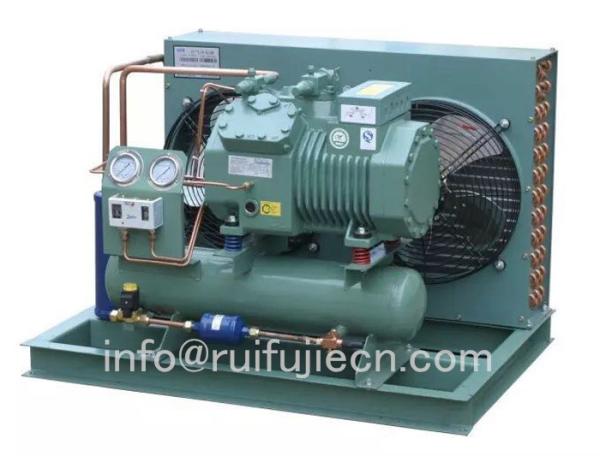

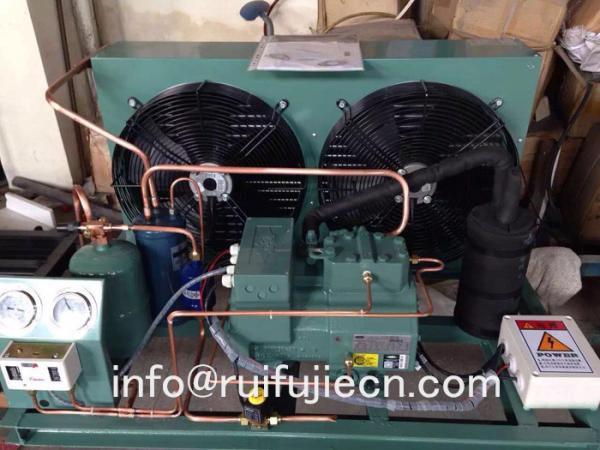

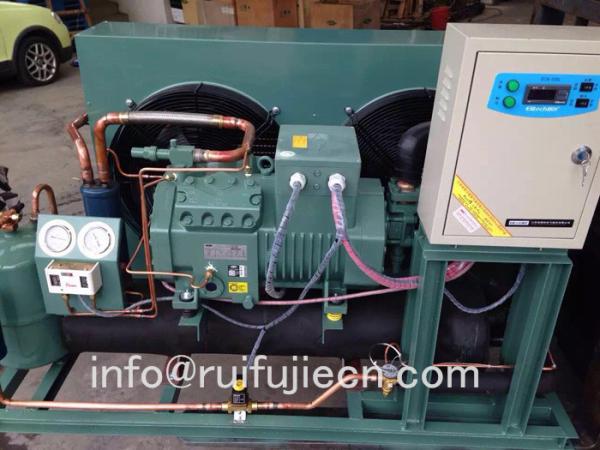

2.Picture

Compressor Air Cooled Condensing Unit / Cold Storage Room Model Spb12km

Compressor Air Cooled Condensing Unit / Cold Storage Room Model Spb12km


3.Technical

Technical Data Of Air Cooled Compressor Condensing Unit
Air-cooled Compressor Condensing Unit with medium Temperature
Condensing Unit model Compressor Model Power Supply refrigerating capacity(KW) Air cooled Condenser Specification of connecting tube
Model Total(m3/h) Dia of fan (mm) Out let(mm) Return gas(mm)
SPB03KM 2DES-3Y 380V 3PH 50HZ 7.68 FHN28 4400 350 10 16
SPB04KM 2CES-4Y 9.50 FHN37.5 4400 350 10 16
SPB05KM 4FES-5Y 10.28 FHN45 6000 400 12 16
SPB06KM 4EES-6Y 12.89 FHN55 6000 400 12 22
SPB07KM 4DES-7Y 15.61 FHN71 8800 350 12 22
SPB09KM 4CES-9Y 18.91 FHN80 12000 400 12 22
SPB10KM 4VES-10Y 19.61 FHN92 12000 400 12 28
SPB12KM 4TES-12Y 23.80 FHN100 12000 400 16 28
SPB15KM 4PES-15Y 27.00 FHN131 20000 450 16 28

4.FAQ

* Why does the blast cold room need to use the vertical air cooler?

The vertical air cooler have big fin spacing, big air flow and very easy to install.

* Why we choose such big compressor horsepower?

Fresh food has a lot of heat and need the big compressor horsepower to cool down within 4-6 hours.

* Why the temperature is so low?

Fresh food need to reach -20C within 4-6 hours so that need -35C or -40C cold room temperature.
