3-1/2Black Foam Rubber Pipe Insulation , Ac Pipe Insulation Material Custom Size
3-1/2Black Foam Rubber Pipe Insulation , Ac Pipe Insulation Material Custom Size
3-1/2Black Foam Rubber Pipe Insulation , Ac Pipe Insulation Material Custom Size
3-1/2Black Foam Rubber Pipe Insulation , Ac Pipe Insulation Material Custom Size
Specifications
Brand Name :
TB
Model Number :
3-1/2"
Certification :
RoHS
Place of Origin :
Chingqing, China
MOQ :
50ctns
Payment Terms :
L/C, T/T
Supply Ability :
10000ctns one month
Delivery Time :
15-20days
Packaging Details :
carton
Fireproof Grade :
Grade B
Working Temp. :
-40℃~105℃
Certificate :
IAF/CMA/ANAB/CNAS/RoHs/ISO
Density :
55Kg/CBM
Inner Diameter :
3-1/2"
Thickness :
1/4" 3/8" 1/2" 5/8" 3/4" 1" 1-1/4" or custom
Length :
1.8m or custom
Custom Size :
Accept
Description

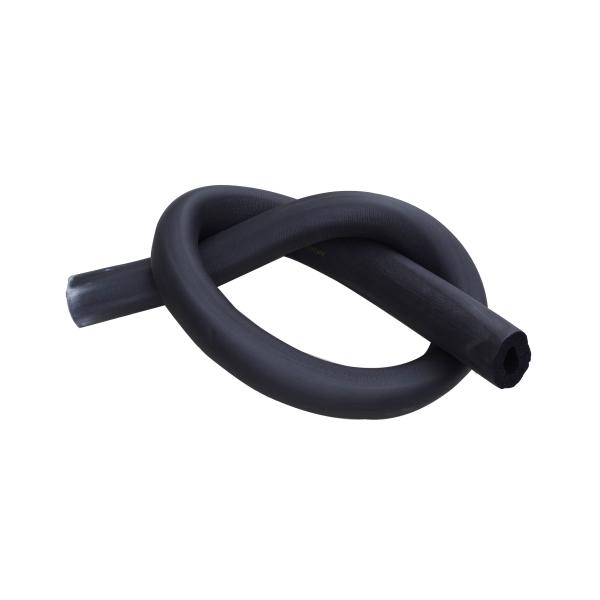

3-1/2" Black Color Custom Size High Quality Air Conditioner Rubber Foam Pipe Insulation

Introduction

rubber foam are used for the heat-insulating and heat-preservation of shell of big tanks and piping in the construction, business and industry, heat insulation of air conditioners ,heat insulation of joint pipes of house air conditioners and automobile air conditioners.

Advantages

- PERFECT HEAT PRESERVATION INSULATION: The high density and closed structure of selected raw material has the ability of low thermal conductivity and stable temperature and has an isolation effect of hot and cold medium.

- GOOD FLAME RETARDANT PROPERTIES: When burned by fire, the insulation material do not melt and resulting in low somke and do not make the flame spread which can guarantee the using safety; the material is determined as nonflammable material and the range of Using temperature is from -40℃ to 105℃.

- ECO-FRIENDLY MATERIAL: The environmental friendly raw material has no stimulation and pollution, no hazard to health and environment. Moreover, it can avoid the mold growth and mouse biting; The material has the effection of corrosion-resistant, acid and alkali, it can increase the life of using.

- EASY TO INSTALL, EASY TO USE: It is convenient to install due to it is not need to install other auxiliary layer and it is just cutting and conglutinating. It will save the manual work greatly.

Physical Characteristics

Item Inspection method Unit Test Result
Density Water Replacement Method KG/m³ 60-80
Water absorption ratio JISA95142 % 3.0
Working Temp. Actual Experiment ℃ -40~105
Longitudinal temperature GB6344 MPA 0.49
Horizontal tensile strength GB6344 MPA 0.40
Compression resistance, 25% Sample (Length 20mm) MPA 0.065
Heat compression 110℃/168H % 5.8
Aging resistance 120℃/1H / Passed
Glow-wire GB5969(550℃) / Passed
Flammability GB5969.5-85 / Non-flam
Conductivity factor Steady State Method W/M.K 0.038
Copper Corrosivity 60℃/100%RH/240H / Non-corrosion
Anti-ozone 24H in Sealed Container / Odorless

Product Details

3-1/2

3-1/2

Size Range

Insulation Pipe Size and Packing Quantity
Inner Diameter mm Wall Thickness mm Pcs/CTN Inner Diameter mm Wall Thickness mm Pcs/CTN
1/4"(6mm) 6 168 1/4"(6mm) 9 168
3/8"(10mm) 6 120 3/8"(10mm) 9 120
1/2"(13mm) 6 100 1/2"(13mm) 9 100
5/8"(16mm) 6 90 5/8"(16mm) 9 90
3/4"(19mm) 6 72 3/4"(19mm) 9 72
7/8"(22mm) 6 65 7/8"(22mm) 9 65
1"(25mm) 6 49 1"(25mm) 9 49
1-1/8"(28mm) 6 49 1-1/8"(28mm) 9 49
1-1/4"(32mm) 6 42 1-1/4"(32mm) 9 42
1-3/8"(35mm) 6 36 1-3/8"(35mm) 9 36
1-1/2"(38mm) 6 34 1-1/2"(38mm) 9 34
1-5/8"(42mm) 6 30 1-5/8"(42mm) 9 30
1-7/8"(48mm) 6 28 1-7/8"(48mm) 9 28
2"(51mm) 6 24 2"(51mm) 9 24
2-1/8"(54mm) 6 20 2-1/8"(54mm) 9 20
2-1/4"(57mm) 6 20 2-1/4"(57mm) 9 20
2-3/8"(60mm) 6 20 2-3/8"(60mm) 9 20
2-5/8"(67mm) 6 18 2-5/8"(67mm) 9 18
2-7/8"(73mm) 6 18 2-7/8"(73mm) 9 18
3"(76mm) 6 18 3"(76mm) 9 18
3-1/8"(79mm) 6 15 3-1/8"(79mm) 9 15
3-1/2"(89mm) 6 15 3-1/2"(89mm) 9 15
Inner Diameter mm Wall Thickness mm Pcs/CTN Inner Diameter mm Wall Thickness mm Pcs/CTN
1/4"(6mm) 13 81 1/4"(6mm) 15 81
3/8"(10mm) 13 72 3/8"(10mm) 15 72
1/2"(13mm) 13 56 1/2"(13mm) 15 56
5/8"(16mm) 13 49 5/8"(16mm) 15 49
3/4"(19mm) 13 42 3/4"(19mm) 15 42
7/8"(22mm) 13 36 7/8"(22mm) 15 36
1"(25mm) 13 36 1"(25mm) 15 36
1-1/8"(28mm) 13 30 1-1/8"(28mm) 15 30
1-1/4"(32mm) 13 30 1-1/4"(32mm) 15 30
1-3/8"(35mm) 13 25 1-3/8"(35mm) 15 25
1-1/2"(38mm) 13 25 1-1/2"(38mm) 15 25
1-5/8"(42mm) 13 20 1-5/8"(42mm) 15 20
1-7/8"(48mm) 13 16 1-7/8"(48mm) 15 16
2"(51mm) 13 16 2"(51mm) 15 16
2-1/8"(54mm) 13 16 2-1/8"(54mm) 15 16
2-1/4"(57mm) 13 15 2-1/4"(57mm) 15 15
2-3/8"(60mm) 13 15 2-3/8"(60mm) 15 15
2-5/8"(67mm) 13 12 2-5/8"(67mm) 15 12
2-7/8"(73mm) 13 12 2-7/8"(73mm) 15 12
3"(76mm) 13 10 3"(76mm) 15 10
3-1/8"(79mm) 13 9 3-1/8"(79mm) 15 9
3-1/2"(89mm) 13 9 3-1/2"(89mm) 15 9
Inner Diameter mm Wall Thickness mm Pcs/CTN Inner Diameter mm Wall Thickness mm Pcs/CTN
1/4"(6mm) 19 48 1/4"(6mm) 25 30
3/8"(10mm) 19 36 3/8"(10mm) 25 30
1/2"(13mm) 19 30 1/2"(13mm) 25 24
5/8"(16mm) 19 30 5/8"(16mm) 25 20
3/4"(19mm) 19 25 3/4"(19mm) 25 20
7/8"(22mm) 19 24 7/8"(22mm) 25 18
1"(25mm) 19 20 1"(25mm) 25 16
1-1/8"(28mm) 19 20 1-1/8"(28mm) 25 16
1-1/4"(32mm) 19 20 1-1/4"(32mm) 25 15
1-3/8"(35mm) 19 16 1-3/8"(35mm) 25 12
1-1/2"(38mm) 19 16 1-1/2"(38mm) 25 12
1-5/8"(42mm) 19 16 1-5/8"(42mm) 25 12
1-7/8"(48mm) 19 15 1-7/8"(48mm) 25 10
2"(51mm) 19 12 2"(51mm) 25 9
2-1/8"(54mm) 19 12 2-1/8"(54mm) 25 9
2-1/4"(57mm) 19 12 2-1/4"(57mm) 25 9
2-3/8"(60mm) 19 10 2-3/8"(60mm) 25 9
2-5/8"(67mm) 19 9 2-5/8"(67mm) 25 8
2-7/8"(73mm) 19 9 2-7/8"(73mm) 25 8
3"(76mm) 19 8 3"(76mm) 25 8
3-1/8"(79mm) 19 8 3-1/8"(79mm) 25 6
3-1/2"(89mm) 19 6 3-1/2"(89mm) 25 6
