High Accuracy R134A Refrigerant Gauge Set / Digital Ac Manifold Gauges Shockproof
High Accuracy R134A Refrigerant Gauge Set / Digital Ac Manifold Gauges Shockproof
High Accuracy R134A Refrigerant Gauge Set / Digital Ac Manifold Gauges Shockproof
High Accuracy R134A Refrigerant Gauge Set / Digital Ac Manifold Gauges Shockproof
High Accuracy R134A Refrigerant Gauge Set / Digital Ac Manifold Gauges Shockproof
High Accuracy R134A Refrigerant Gauge Set / Digital Ac Manifold Gauges Shockproof
Specifications
Model Number :
6889
Certification :
CE
Place of Origin :
Chingqing, China
MOQ :
100sets
Payment Terms :
L/C, T/T
Supply Ability :
10000sets per month
Delivery Time :
15-20 days
Packaging Details :
Plastic Box, paper box
Power :
DC 6V
Battery Life :
30 hours
Pressure Units :
KPa,INHG,KgF/cm2,PSI,Bar
Connection :
1/4" SAE Brass
Refrigent Suit :
R22 R134A R404A R410A
Charging Hose :
3pcs
Vacuum Measuring Range :
-101 Kpa~0Kpa
Refrigent Suit For :
CFC HCFC HFC
Description

High Accuracy Super Shockproof Digital Air Conditioner Manifold Gauge Set

Features


Switch between refrigerant pressure and vacuum.
Programmed with 88 refrigerant pressure and saturated temperature data taken from the latest NIST database.
Measuring Vacuum and shown in percentage.
Low battery indicator.Long battery life of 30 hours.
Show actual temperature,sub cooling,superheat,vacuum.
High resolution LCD with background lamp.
Low voltage DC 6V design.
2 way aluminum alloy manifold with diaphragm design.

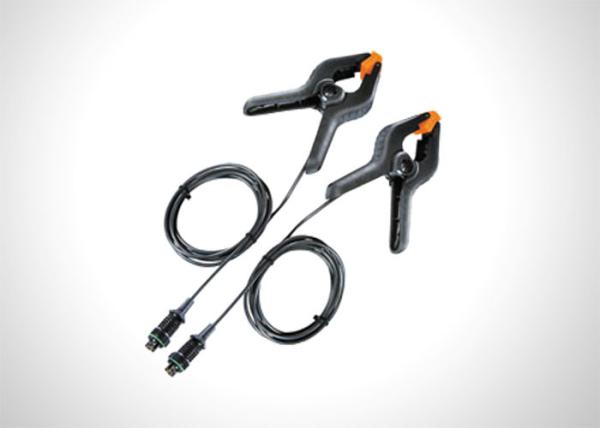

Sensors: 2 pressure sensors and 2 temperature sensors.
SPECIFICATION
Pressure units :KPA,INHG,KgF/cm2,PSI,Bar
Vacuum units:Torr,mmHg,Micron,%
Power:1.5V AA X 4=6V
Pressure measuring:actual pressure.
Temperature units:℉,℃
Measuring range: Vacuum:-101 Kpa~0Kpa
Proof prsddure:0 MPa~6 MPa
Refrigerant pressure:0 MPa~4 MPa
Sensor resolution: 1 KPa
Sensor accuracy:±0.5%
Overload limit: 100Bar,10Mpa
Operating temperature:-20℃~+60℃
Battery life: 30 hours
Sensor temperature range:-50C-150C(-58F-302F)
Temperature accuracy:<50C(+/-0.1C),>50-100C(+/0.2C),>100C(+/-1C)
Auto-off:15 min with disabling capability.

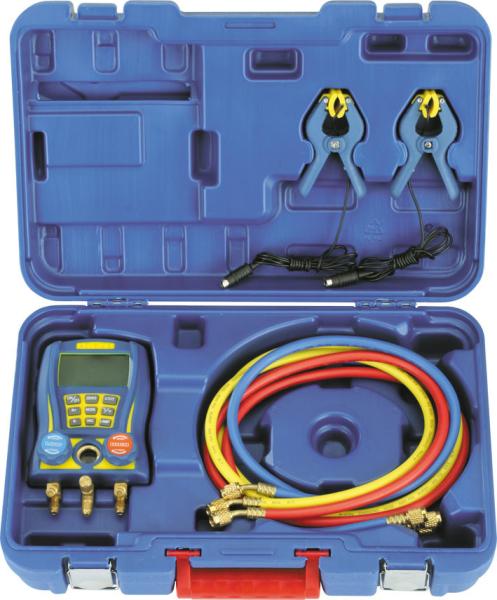

Manifold Gauge Compose

High Accuracy R134A Refrigerant Gauge Set / Digital Ac Manifold Gauges Shockproof

Technical Data

Item No. Size of hose Description
6889-L 60″(150cm) 2Valve Digital manifolds + 3Pcs of charge hose.Working pressure,800PSI,Burst 4000PSI + 5Pcs of 1.5VBattery + 2Pcs of temper ature sensor+ 1Pcs of suitcase.
