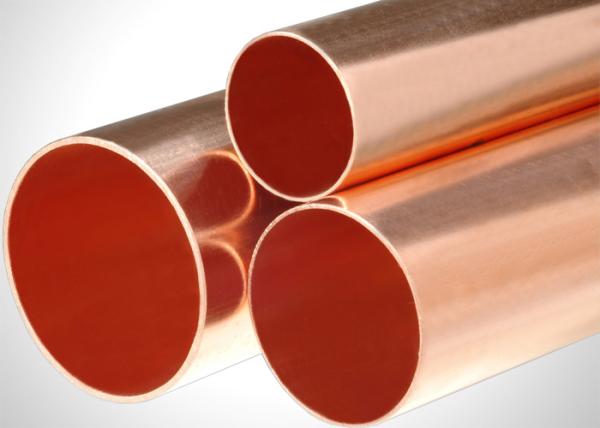

Multi Standard Type M Copper Pipe Plumbing Copper Tubing Recyclable 3-6m Length
Multi Standard Type M Copper Pipe Plumbing Copper Tubing Recyclable 3-6m Length
Specifications
Brand Name :
XC
Certification :
RoHS
Place of Origin :
Chingqing, China
MOQ :
100pcs
Payment Terms :
L/C, T/T
Supply Ability :
10000ton per month
Delivery Time :
20-25 working days
Packaging Details :
plastic wrap/woodencase
Material :
C1220 SF-Cu C12000
Standard :
JISH3300:1997,GB/T17791-2007
OD :
3/8"-8 1/8"
Wall Thickness :
0.28-5mm
Length :
3-6m
Usage :
AC/ refrigeration/ water and oil supply
Description

Type M Hard Drawn Straight Plumbing Copper Tubing Custom Size Accept

AREA OF USAGE

These can be used in water heater, combi boiler, heating installations, Home and Industrial Type air conditioning systems, solar energy systems, floor heating systems, air and oil installations, medical installations, heat exchangers and natural gas installments.

Technical Data

Regular Spec. of Straight Copper Tube (OEM Welcome)
Outer Diameter(U.S Standard) Outer Diameter(China Standard) Wall Thickness(mm) Length
　 　 Thickness Range Availiable Regular Thickness(R410) Common Use Thickness(R410) China Standard Thickness(R410) 　
3/8" 9.52 0.28-1.50 　 　 　 3m/pc
1/2" 12.7 0.35-2.00 　 　 　
5/8" 15.88 0.46-2.00 1 　 　
3/4" 19.05 0.6-2.00 1 　 　
7/8" 22.22 0.6-2.00 1 1.2 　
1" 25.4 0.6-2.00 1 1.2 　
1 1/8" 28.58 0.6-3.00 1 1.2 　
1 1/4" 31.75 0.6-3.00 1.2 　 　
1 3/8" 34.93 0.6-3.00 1.3 　 　
1 1/2" 38.1 0.6-3.00 1.4 　 　
1 5/8" 41.28 0.7-3.50 1.4 　 　
1 6/8" 44.45 0.7-3.50 1.5 　 　
2 1/8" 53.98 0.7-3.50 1.7 　 　
2 5/8" 66.68 1.0-4.00 2.1 　 　
3 1/8" 79.38 1.2-5.00 　 　 　
3 5/8" 92.08 1.5-5.00 　 　 　
4 1/8" 107.78 1.5-5.00 　 　 　
5 1/8" 130.18 　 　 　 　
6 1/8" 155.58 　 　 　 　
8 1/8" 206.38 　 　 　 　

Advantages

- Standard: JISH3300:1997,GB/T17791-2007,ASTM B280
- Top quality copper material C1220/SF-Cu/C12000
- Made by EXTRUSION process, perfect size tolerance.
- All pipes are checked by on line Eddy Current Inspection to ensure all the pipes are qualified products.
- Smooth and clean Outer/inner surface, no smudge and rust.
- Easy to braze and anti-corrosion
- Long service life and recyclable.
- Can be used for liquid fed applications such as air conditioning, ice makers, humidifiers, and refrigeration systems. Also used for oil lines for heating.
