C1220 SF-Cu C12000 3 4 Copper Refrigeration Tubing Coil For Liquid Fed
C1220 SF-Cu C12000 3 4 Copper Refrigeration Tubing Coil For Liquid Fed
Specifications
Brand Name :
XC
Certification :
RoHS
Place of Origin :
Chingqing, China
MOQ :
100pcs
Payment Terms :
L/C, T/T
Supply Ability :
10000ton per month
Delivery Time :
20-25 working days
Packaging Details :
plastic wrap/carton/pallet
Material :
C1220 SF-Cu C12000
Standard :
JISH3300:1997,GB/T17791-2007
OD :
3/16"-1 1/8"
Wall Thickness :
0.28-2mm
Length :
15-50m
Usage :
AC/ refrigeration/ water and oil supply
Description

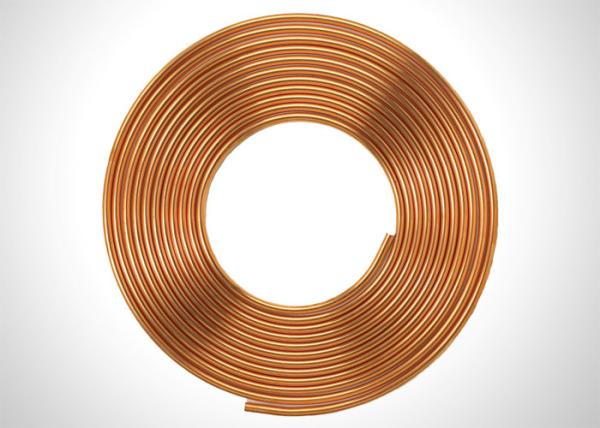

3/4" Soft Type Pancake Coil Air Conditioner Refrigeration Copper Tubing

1. Application: mainly used for air conditioning and refrigeration, installation of air conditioner, construction water and gas
2. Length according to customer required
3. Thickness according to customer required

Technical Data

Regular Spec. of Copper Coil (Custom Accept)
Outer Diameter(Inch) Outer Diameter(mm) Thickness(mm) Coil Length
3/16" 4.76 0.35-0.90 15-50m
1/4" 6.35 0.4-1.10
5/16" 7.94 0.4-1.20
3/8" 9.52 0.4-1.20
1/2" 12.7 0.45-1.20
5/8" 15.88 0.50-1.20
3/4" 19.05 0.60-1.20
7/8" 22.22 0.90-1.20

Advantages

- Standard: JISH3300:1997,GB/T17791-2007,ASTM B280
- Top quality copper material C1220/SF-Cu/C12000
- Made by EXTRUSION process, perfect size tolerance.
- All pipes are checked by on line Eddy Current Inspection to ensure all the pipes are qualified products.
- Smooth and clean Outer/inner surface, no smudge and rust.
- Easy to braze and anti-corrosion
- Long service life and recyclable.
- Can be used for liquid fed applications such as air conditioning, ice makers, humidifiers, and refrigeration systems. Also used for oil lines for heating.

Packing

C1220 SF-Cu C12000 3 4 Copper Refrigeration Tubing Coil For Liquid Fed

Detail

C1220 SF-Cu C12000 3 4 Copper Refrigeration Tubing Coil For Liquid Fed
