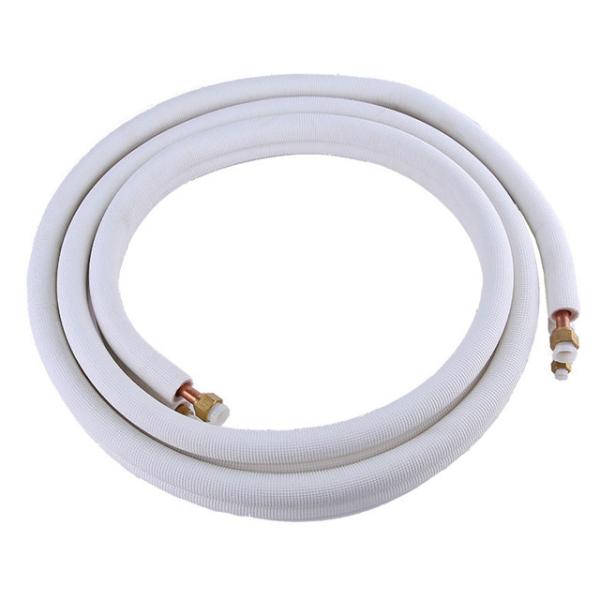

Good Thermal Ablility PE Insulated Copper Tube Single Pipe and Twin Pipe
Good Thermal Ablility PE Insulated Copper Tube Single Pipe and Twin Pipe
Good Thermal Ablility PE Insulated Copper Tube Single Pipe and Twin Pipe
Good Thermal Ablility PE Insulated Copper Tube Single Pipe and Twin Pipe
Specifications
Brand Name :
TB
Certification :
RoHS
Place of Origin :
Chingqing, China
MOQ :
1000m
Payment Terms :
L/C, T/T
Supply Ability :
1000000meters one month
Delivery Time :
10-15 working days
Packaging Details :
nylon wrap pack then put into carton
Insulation Material :
PE
Color :
White or custom
Use for :
Air conditioner or other insulation
Temp. Range :
-40℃ - 120℃
Standard :
Jis
Suit for :
Both Chiller and Thermal
Description

Environmental Friendly Good Thermal Ablility PE Insulated Copper Tube Single Pipe or Twin Pipe

Introduction

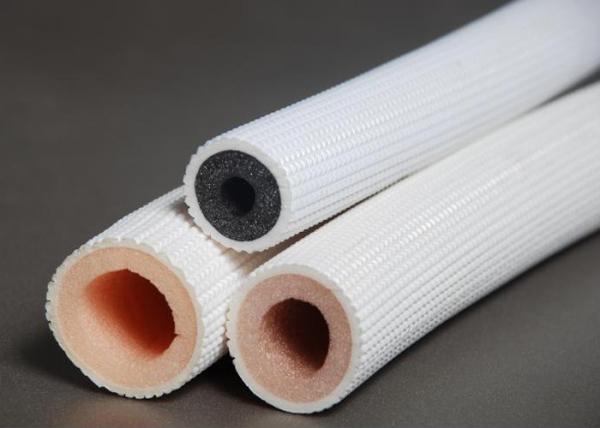

PE insulation is foamed by polyethylene water bridge,the middle layer is foamed by electronic bridge,
the other layer is made of polyethylene anti-aging and anti-untraviolet ray composite memberane,
which have high temperature resistant of 120℃.
Thermal insulated heat preservation tube material and characteristics JIS A9511:PE-C-P2 standard,use for:
1. Water,liquid,powder,granule transmission
2. Electrical wire protection tubing
3. Drain hose for construction,etc.
4. Especially for air conditioner drainage use(Heat preservation drain hose for air conditioners,
Drain hose for central air conditioning system).

Good Thermal Ablility PE Insulated Copper Tube Single Pipe and Twin Pipe

Advantage


1- Completely conformed to the newest EU envirmontal standards SVHC.
2- High thermal stability, which is suitable for higher processing temperature(>170℃).
3-It has good mechanical property. Performance in all respects has almost kept same with pure resin.
4-It has good colurability, which can be configured to all kinds of colors.

Flame Test


Fire Resistance Custom Make Air Conditioner Use PE Insulated Copper Tube
Little white smoke come out during flame retardant process,no residue contents after buring. No smelly smoke which is conformed to environmental requirement,fit the request of RoHS and SVHC standard.

Good Thermal Ablility PE Insulated Copper Tube Single Pipe and Twin Pipe

Size Range

Inner Diameter(mm) Wall Thickness(mm) Packing(m/roll) Ability Color
Φ6.35 13 200

Temperature Resistance 120°C

Flame Retardant

 White
Φ9.52 13 200 White
Φ12.7 13 200 White
Φ15.88 13 200 White
Φ19.5 13 200 White
Φ22.22 13 200 White
Φ25.4 13 200 White
Φ28.58 13 200 White
Φ31.75 13 200 White
Φ34.92 13 200 White
Φ38.1 13 200 White
Φ41.28 13 200 White
Φ44.45 13 200 White

Project Use

Good Thermal Ablility PE Insulated Copper Tube Single Pipe and Twin Pipe
