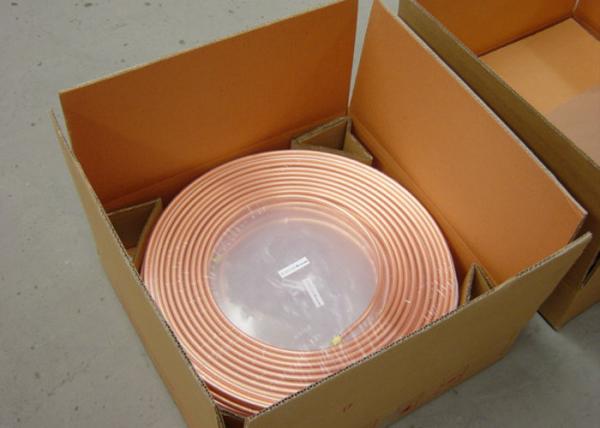

3/16 Copper Refrigeration Tubing Copper Pancake Coil for Refrigeration Equipment
3/16 Copper Refrigeration Tubing Copper Pancake Coil for Refrigeration Equipment
3/16 Copper Refrigeration Tubing Copper Pancake Coil for Refrigeration Equipment
3/16 Copper Refrigeration Tubing Copper Pancake Coil for Refrigeration Equipment
Specifications
Brand Name :
TB
Certification :
RoHS
Place of Origin :
Chingqing, China
MOQ :
1000kg
Payment Terms :
L/C, T/T
Supply Ability :
10000ton per month
Delivery Time :
20-25 working days
Packaging Details :
plastic wrap/carton/pallet
Model Number :
3/16"
Material :
C1220 SF-Cu C12000
Standard :
JISH3300:1997,GB/T17791-2007
OD :
3/16"
Wall Thickness :
0.28-2mm
Length :
15-50m
Usage :
AC/ refrigeration/ water and oil supply
Description

3/16" Copper Refrigeration Tubing Copper Pancake Coil for Refrigeration Equipment

1. It is light weight,good thermal conductivity and high strength at low temperature.
2. Copper tube with firm and corrosion resistant properties.
3. Copper tube is durable,safe and reliable,health,connecting fastness is also strong.
4. With high strength with general metal,meanwhile it is more easy than general metal to bend and reverse,and it is not easy to crack and break,it also has certain anti-frost and expansion and impact resistantce ability.

Technical Data

Regular Spec. of Copper Coil (Custom Accept)
Outer Diameter(Inch) Outer Diameter(mm) Thickness(mm) Coil Length
3/16" 4.76 0.35-0.90 15-50m
1/4" 6.35 0.4-1.10
5/16" 7.94 0.4-1.20
3/8" 9.52 0.4-1.20
1/2" 12.7 0.45-1.20
5/8" 15.88 0.50-1.20
3/4" 19.05 0.60-1.20
7/8" 22.22 0.90-1.20

Advantages

- Standard: JISH3300:1997,GB/T17791-2007,ASTM B280
- Top quality copper material C1220/SF-Cu/C12000
- Made by EXTRUSION process, perfect size tolerance.
- All pipes are checked by on line Eddy Current Inspection to ensure all the pipes are qualified products.
- Smooth and clean Outer/inner surface, no smudge and rust.
- Easy to braze and anti-corrosion
- Long service life and recyclable.
- Can be used for liquid fed applications such as air conditioning, ice makers, humidifiers, and refrigeration systems. Also used for oil lines for heating.

3/16

Production Line

3/16
