AC Repair Copper Tube Expander Hydraulic Copper Pipe Expander Tool Eco Friendly
AC Repair Copper Tube Expander Hydraulic Copper Pipe Expander Tool Eco Friendly
AC Repair Copper Tube Expander Hydraulic Copper Pipe Expander Tool Eco Friendly
AC Repair Copper Tube Expander Hydraulic Copper Pipe Expander Tool Eco Friendly
Specifications
Brand Name :
XC
Model Number :
XC-300
Certification :
CE
Place of Origin :
Chingqing, China
MOQ :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
10000sets per month
Delivery Time :
20-30 days
Packaging Details :
plastic hand case
Material :
Steel
Tube Suit For :
3/8"-1 5/8"
Type :
Mannual Hydraulic Type
Material Suit for :
Copper Tube
Description

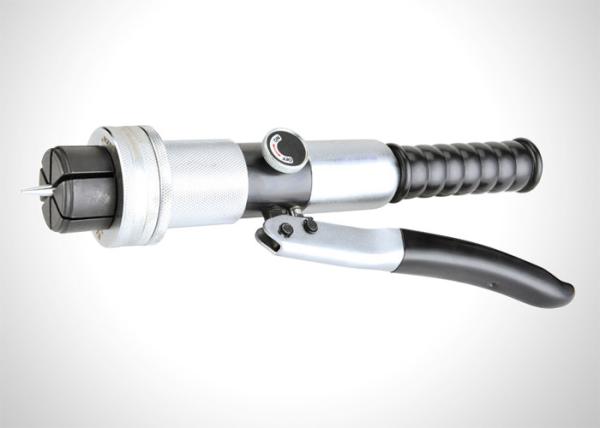

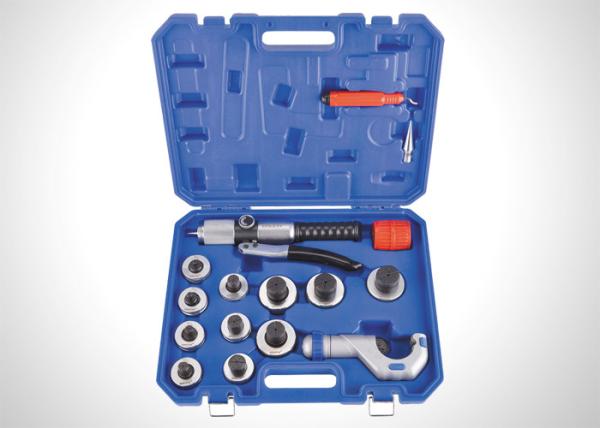

Easy To Use AC Repair Hydraulic Copper Tube Expander Tool Kit

Technical Data

Item No. Description
CT-300AL NEW 300A+650+209+207+300PL For inch:3/8",1/2",5/8",3/4",7/8",1",1-1/8",1-1/4",1-3/8",1-1/2",1-5/8" O.D.Tubing.
CT-300ML NEW 300M+650+209+207+300PL For metric:10,12,16,19,22,25,28,32,35,38,42mm O.D.Tubing.

Advantage
No copper coupling needed any more,Save cost of material.
Only one side need to be welded.Save cost and reduce possibility of leak.
Manual hydraulic mechanism design can expand tubings from 10mm to 42mm diameter.

Used for soft copper tube,Alumimum tube,Titanium tube,soft steel and other soft tube.

AC Repair Copper Tube Expander Hydraulic Copper Pipe Expander Tool Eco Friendly

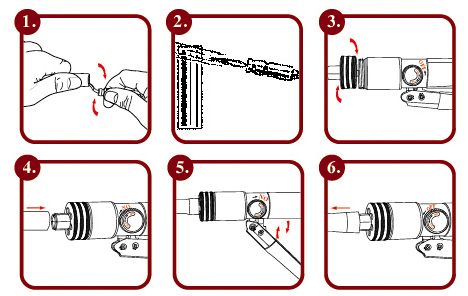

SIX EASY STEPS:
1.Deburr inside of tube.
2.Anneal the tube if necessary(for hard or thickwall tube).
3.Screw the expander head on expander.
4.Put the end of tube on expander head.
5.Tighten the relief valve knob to‘On’position then pump handle until tube is expanded to the end.
6.Turn the relief valve knob to‘OFF’possition to loosen expander head.Remove expanded tube.
