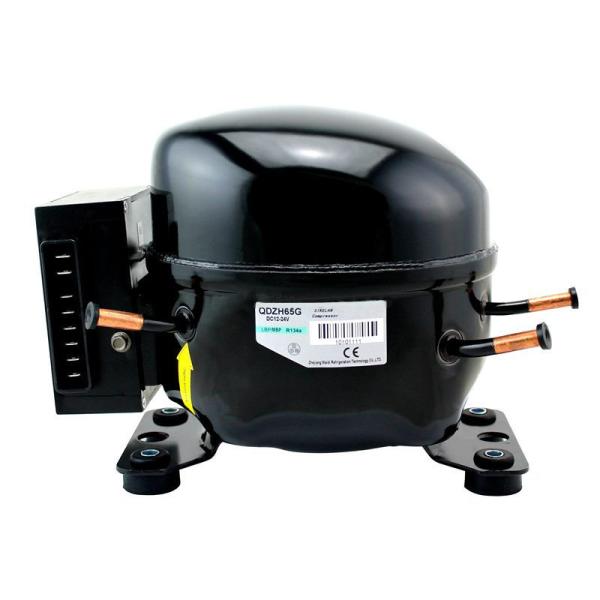

138W 24V Fridge Compressor R134a FAN Cast Iron 200L DC Series
138W 24V Fridge Compressor R134a FAN Cast Iron 200L DC Series
138W 24V Fridge Compressor R134a FAN Cast Iron 200L DC Series
138W 24V Fridge Compressor R134a FAN Cast Iron 200L DC Series
138W 24V Fridge Compressor R134a FAN Cast Iron 200L DC Series
138W 24V Fridge Compressor R134a FAN Cast Iron 200L DC Series
138W 24V Fridge Compressor R134a FAN Cast Iron 200L DC Series
138W 24V Fridge Compressor R134a FAN Cast Iron 200L DC Series
Specifications
Brand Name :
Hengxiang
Model Number :
QDZH43G, QDZH65G QDZH75G
Certification :
ISO, CE
Place of Origin :
China
MOQ :
300 PCS
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50000 PCS Per Week
Delivery Time :
30 Working days
Packaging Details :
Carton or Pallet
Material :
Cast Iron
Color :
Black
Application :
Refrigeration Parts
Power :
120W, DC 12/24V
Refrigerant: :
R600A
Net Weight :
9.8kg
Voltage :
12V24V
Loading Port :
Ningbo or Shanghai
Description

R134A 138W 12-24V of Light Commercial Refrigeration Compressor For AC Household Fridge Freezer Refrigerator

Product Performance

1) QDZH65G, DC series, use R134A refrigerant

2) Voltage application 12V and 24V

3) Cooling type: FAN

4)Application: Low Back Pressure, Middle Back Pressure

5) Max cooling capacity 210W

6) Suitable for freezer/refrigerator capacity: 180 to 200L

Serial Model Displacement (cm3) Rotate Speed (rpm) Capacity COP EER Oil charge Cooling Type Power Supply Certificate
-23.3ºC (ASHRAE)
W Kcal/h Btu/h W/W Btu/W.h ml
3000 75.0 64.3 254.0 1.06 3.62
3500 87.0 74.7 295.0 1.04 3.55
QDZH35G 3.5 2000 60.0 51.9 204.6 1.08 3.68
2500 73.0 63.1 248.9 1.07 3.65
3000 86.0 74.4 293.2 1.06 3.62
3500 100.0 86.5 341.0 1.05 3.58
QDZH43G 4.3 2000 80.0 69.1 273.0 1.15 3.92
2500 96.0 82.9 327.6 1.2 4.09
3000 115.0 99.4 392.4 1.25 4.27
3500 138.0 119.2 470.9 1.25 4.27
MK QDZH50G 5.0 2000 87.0 75.2 296.8 1.17 3.99 180
2500 104.0 89.9 354.8 1.13 3.86
3000 130.0 112.3 443.6 1.35 4.61
3500 163.0 140.8 556.2 1.2 4.09
QDZH65G 6.5 2000 120.0 103.6 409.4 1.2 4.09
2500 150.0 129.6 511.8 1.2 4.09
3000 180.0 155.5 614.2 1.2 4.09
3500 210.0 181.4 716.5 1.2 4.09

138W 24V Fridge Compressor R134a FAN Cast Iron 200L DC Series

138W 24V Fridge Compressor R134a FAN Cast Iron 200L DC Series

Package Details:

1PC/CTN, SIZE 26*16*16/19 CM

100PCS/PLT, SIZE 114*87*90 CM

120PCS/PLT, SIZE 114*87*110 CM

24PLTS/20GP, TOTAL 2640 PCS.
