Silver Stainless Steel Refrigerator Appliance Parts Thermostat Sensor 125V
Silver Stainless Steel Refrigerator Appliance Parts Thermostat Sensor 125V
Silver Stainless Steel Refrigerator Appliance Parts Thermostat Sensor 125V
Silver Stainless Steel Refrigerator Appliance Parts Thermostat Sensor 125V
Silver Stainless Steel Refrigerator Appliance Parts Thermostat Sensor 125V
Silver Stainless Steel Refrigerator Appliance Parts Thermostat Sensor 125V
Specifications
Brand Name :
HengXiang
Model Number :
PL004 3022A
Certification :
CE
Place of Origin :
China
MOQ :
300 PCS
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50000PCS Per Week
Delivery Time :
30 Working days
Packaging Details :
Cartons
Material :
Stainless Stell
Color :
Silver
Type :
Refrigerator Parts
Power Source :
Electric
Voltage :
250Vac/125Vac
Electric strength :
1800V/1min
Currents :
5Amps/10Amps
Operating Temperature :
Open:50 ℉ Close:30℉
Max. Operating Temperature :
90°C
Package :
45*35*23CM 500PCS/CTN
Package Weight :
GW:13KGS NW:12KGS
Resistance Between Terminals :
Below 50mW
Warranty :
1 Year
Loading Port :
Shanghai or Ningbo
Delivery Term :
By Sea or By Air
Description

Defrost Sensor and Bimetal Thermostat Sensor for Refrigerator, Silver stainless steel Material Voltage 250Vac/125Vac

Product Description

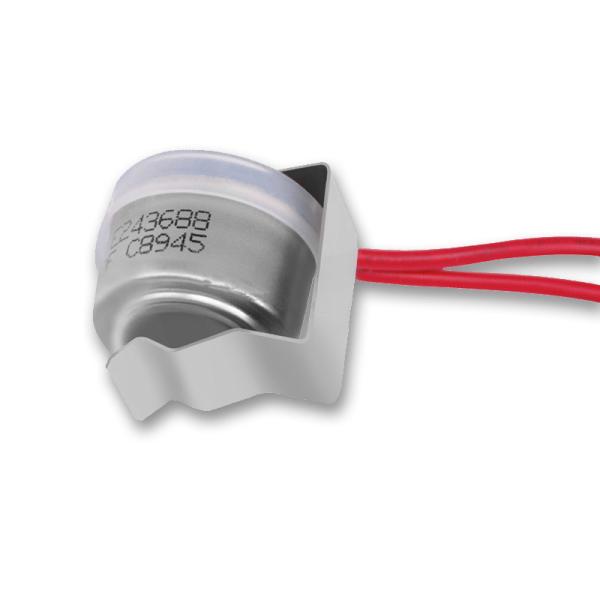

The bimetal temperature control offers reliability in a compact, versatile, cost-effective design. The snap action of the bimetal disc provides high-speed contact separation resulting in excellent life cycle characteristics at electrical loads up to I5 amps at 120VAC and 10 amps at 250VAC (10,000 cycles). A variety of terminal and mounting configurations are available for maximum design flexibility. The quality, reliability, affordability, versatility and world-wide agency approvals of this Series make the thermostat for a wide variety of temperature control applications.

Product Info

ltem NO PL004 3022A
Use Defrost/Temperature control/Protection
ApplianceR Refrigerators, Freezer
Reset type Automatic
Base material Stainless Steel, Epoxy Resin
Amperage 3A/6A/10A/25A
Max. Operating Temperature 90°C
Differential According to the requirement
Min. Diff 8°C
Tolerance Refer to the regulation
Cold-resistant Temperature -30°C
Limit of the tolerance(OFF) ±3°C
Limit of the tolerance(ON) ±3°C
Contact material Silver
Dielectric Strength Parts between electriferous components and non-electriferous ones can bear 2000V (3750V for Reinforced insulation type) 50Hz AC
current, which is nearly sine wave, for one minute as bearing test. Resulted no breakdown, no flashover.
Insulation Resistance With a DC 500V megger, borne DC 500V, the tested value is over 10MW.
Resistance Between Terminals Below 50mW
Temperature characteristics Normal close, Normal open
Maximum ambient temperature 90°C
Diameter of bimetal disc 25.4mm(1″)
Color Silver

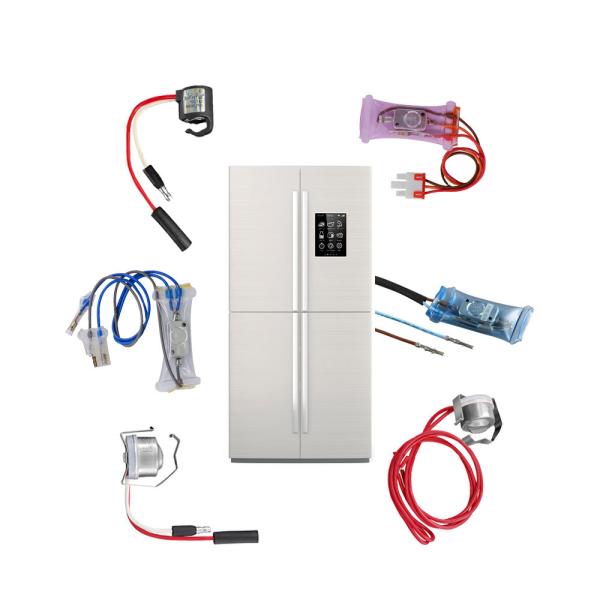

Variable Temperature Area Sensor:

Temperature sensor: Use for displaying the temperature and control of the variable temperature room (the temperature in this area is generally between -7 degrees to 5 degrees)

Defrost sensor: Temperature sensor generally disconnected at normal temperature, closed below -7 °C ! The defrost heater is electrified to heat up and defrost the evaporator! (In a refrigerator, this sensor must be used with a fuse)

Ice temperature sensor: Temperature sensor apply to display the temperature of the ice temperature area Refrigeration evaporator sensor: temperature sensor, used to control the temperature of the refrigerator compartment.

Silver Stainless Steel Refrigerator Appliance Parts Thermostat Sensor 125V

Silver Stainless Steel Refrigerator Appliance Parts Thermostat Sensor 125V
