Refrigeration Hvac Valve Actuator Electrically Controlled 50Hz
Refrigeration Hvac Valve Actuator Electrically Controlled 50Hz
Refrigeration Hvac Valve Actuator Electrically Controlled 50Hz
Refrigeration Hvac Valve Actuator Electrically Controlled 50Hz
Refrigeration Hvac Valve Actuator Electrically Controlled 50Hz
Refrigeration Hvac Valve Actuator Electrically Controlled 50Hz
Refrigeration Hvac Valve Actuator Electrically Controlled 50Hz
Refrigeration Hvac Valve Actuator Electrically Controlled 50Hz
Specifications
Brand Name :
Hengxiang
Model Number :
DFQ-XFK, DFQ-XMF
Certification :
SCOC
Place of Origin :
China
MOQ :
300 Sets
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50000 PCS/Month
Delivery Time :
30 Working days
Packaging Details :
Carton
Product Name :
Motorized zone valve
Material :
Aluminum Alloy
Weight :
4.5kg
Fluid Temperature :
<95℃
Warranty :
1 year
Thrust :
1000N
Power :
Electric, 24VAC±10% 50/60Hz
Customized support :
OEM, ODM
Description

Refrigeration Hvac Valve Actuator Electrically Controlled Valve For Air Conditioner Actuator Suitable for Siemens

Product Introduction:

DQF-X series motorised valve actuator is matched with 2,3-way motorised valve to adjust the medium flow.It's widely used in central air conditioning system, heating system and other occasions to meet the user from simple single-room temperature control to complex building automatic control requirements. It can achieve the required ambient temperature,obtain a comfortable environment and save energy through flow control.

Product Features:

1. Easy installation.


2. Terminal limit switch


3. Connecting rod is unnecessary


4. Forward and reverse action


5 .Accurate valve positioning


6. Synchronous motor


9. With manual operator


10. Corrosion protection design


11. Maintenance free

Loading Port & Delivery

Loading Port: Ningbo/Shanghai

Delivery Support: By Land, by Sea or by Air

Product Type and Size:

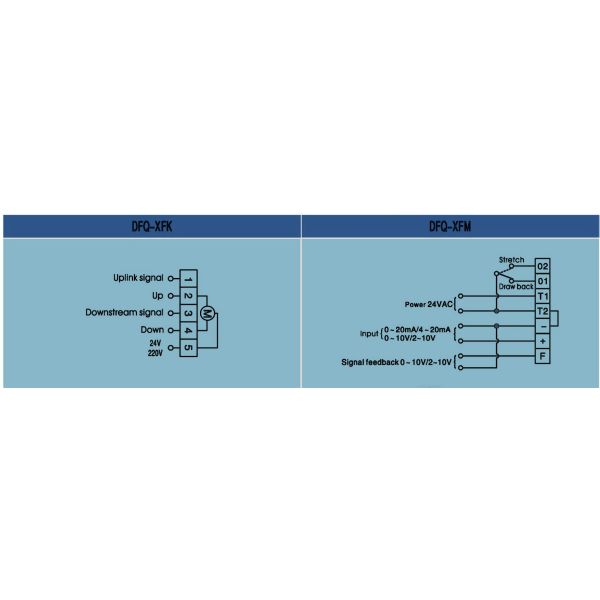

Model No. DFQ-XFM DFQ-XFM-485 DFQ-XFK
Power 24VAC±10% 50/60Hz
Power consumption 20.1W when frequency is 50Hz
26.0W when frequency is 60Hz		 20.5W when frequency is 50Hz
27.6W when frequency is 60Hz
Input signal 0(2)~10V,0(4)~20mA optional 24VAC
Signal feedback 0(2)~10V 0(2)~10V,
0(4)~20mA optional		 24VAC
Thrust 5000N
Journey 40mm
Journey time 240 seconds when 50Hz
200 seconds when 60Hz
Material Gear: formaldehyde, nylon
Lower plate of reducer: galvanized steel
Bracket: die-cast aluminum alloy
Housing: flame retardant ABS engineering plastic
Temperature Ambient temperature: -10 ~ +50ºC Storage temperature: -40 ~ +50ºC
Protection Class IP54
Humidity 1%-95% RH no dew
Fluid temperature <150ºC
Weight 4.25kg

Refrigeration Hvac Valve Actuator Electrically Controlled 50Hz
