Stainless Steel HVAC Control Parts Electric Thermal Valve DRF For Air Conditioner
Stainless Steel HVAC Control Parts Electric Thermal Valve DRF For Air Conditioner
Stainless Steel HVAC Control Parts Electric Thermal Valve DRF For Air Conditioner
Stainless Steel HVAC Control Parts Electric Thermal Valve DRF For Air Conditioner
Stainless Steel HVAC Control Parts Electric Thermal Valve DRF For Air Conditioner
Stainless Steel HVAC Control Parts Electric Thermal Valve DRF For Air Conditioner
Stainless Steel HVAC Control Parts Electric Thermal Valve DRF For Air Conditioner
Stainless Steel HVAC Control Parts Electric Thermal Valve DRF For Air Conditioner
Stainless Steel HVAC Control Parts Electric Thermal Valve DRF For Air Conditioner
Stainless Steel HVAC Control Parts Electric Thermal Valve DRF For Air Conditioner
Specifications
Brand Name :
Hengxiang
Model Number :
DRF-W, DRF-N
Certification :
SCOC
Place of Origin :
China
MOQ :
300 Sets
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50000 PCS/Month
Delivery Time :
30 Working days
Packaging Details :
Carton
Product Name :
Motorized zone valve
Material :
Forged Brass Body, Stainless Steel
Sealing Material :
Nitrile rubber(NBR)
Fluid Temperature :
5-95℃
Warranty :
1 year
Power :
Electric
Customized support :
OEM, ODM
Description

Electric Thermal Valve DRF And Electric Thermal Valve Actuator DRQ For Air Conditioner

Product Introduction:

DRF Electric thermal valve is available for controlling central air conditioning and water heating system's opening and closing to control

the room temperature. The control valve depends on the paraffin wax propeller drive the spring to reset. The electric thermal valve is

normally closed when it doesn't work. If it needs to work, the thermostat will provide a signal of opening, then the electric thermal valve will

gets the power to work. Opening the valve, the cold and hot water will come into the fan coil to provide the cold or hot air. when the set

temperature is achieved, the thermostat will cut off the electric thermal valve's power,then the reset spring can close the valve to stop the

Loading Port & Delivery

Loading Port: Ningbo/Shanghai

Delivery Support: By Land, by Sea or by Air

Product Type and Size:

Model No.
Valve Typ
DN
Connection Type
Thread Size
Kvs
Dimensions
L
H
B
F
DRF-W-215
2-way
15
Male
G1/2
1.7
52
44
-
-
DRF-W-220
2-way
20
Male
G3/4
2.6
56.5
44
-
-

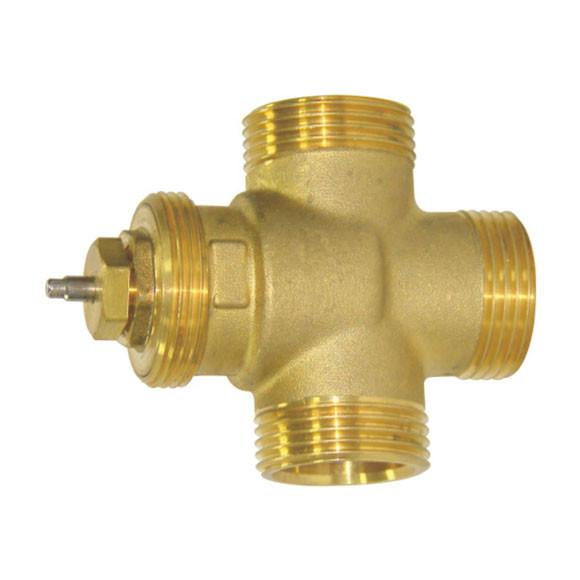

DRF-W-315
3-way
15
Male
G1/2
1.7
52
44
26
-
DRF-W-320
3-way
20
Male
G3/4
2.8
56.5
44
28
-

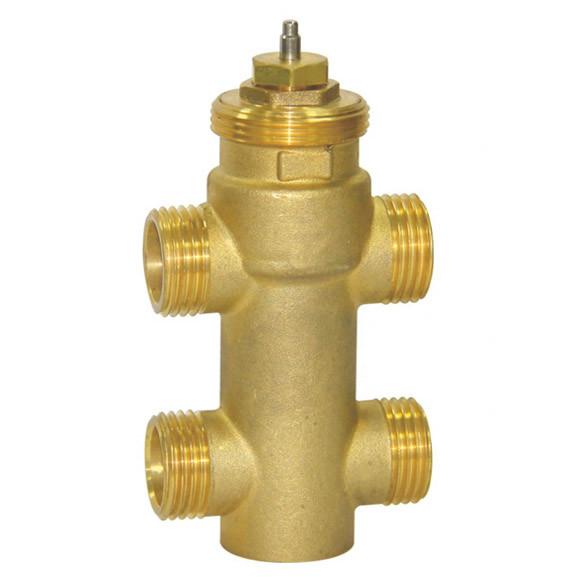

DRF-W-415
4-way
15
Male
G1/2
1.7
52
44
40
113.5
DRF-W-420
4-way
20
Male
G3/4
2.6
56.5
44
50
101

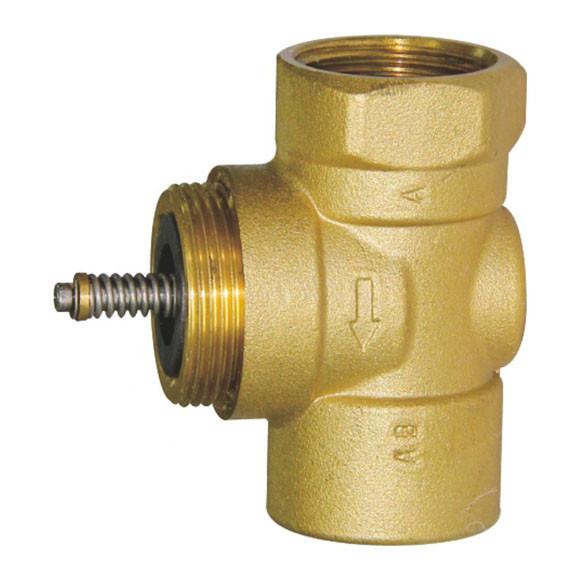

DRF-N-220
2-way
20
Female
G3/4
2.6
52
44
-
-
DRF-N-220A
2-way
20
Female
G3/4
2.6
52
44
-
-
DRF-N-225
2-way
25
Female
G1
4.5
63
50
-
-

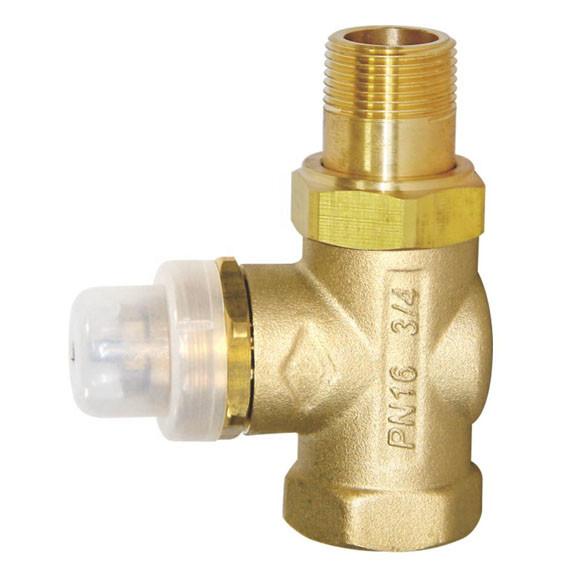

DRF-WN-220
2-way
20
Male and
G3/4
2.6
95
48
-
-
female
DRF-WN-225
2-way
25
Male and
G1
4.5
105
52
-
-
female
DRF-B-N-220
2-way
20
Female
G3/4
2.5
64
52
-
-
DRF-B-N--225
2-way
25
Female
G1
3.3
70
55
-
-

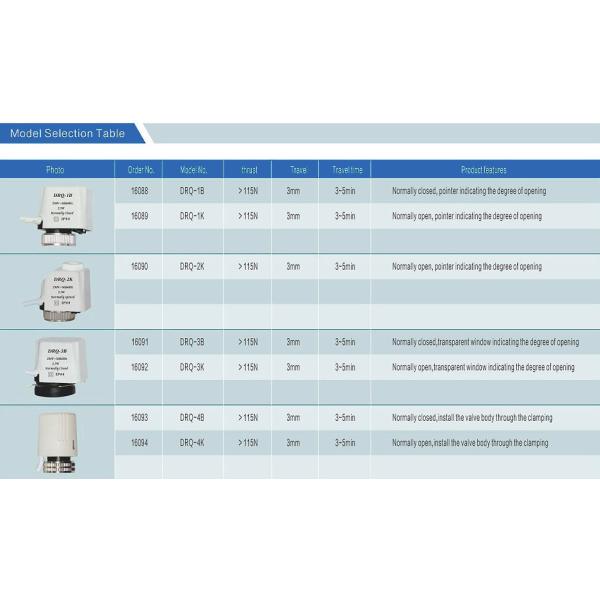

Order No.
Model No.
thrust
Travel
Travel time
Product features
H16088
DRQ-1B
＞115N
3mm
3~5min
Normally closed, pointer indicating the degree of opening
H16089
DRQ-1K
＞115N
3mm
3~5min
Normally open, pointer indicating the degree of opening
H16090
DRQ-2K
＞115N
3mm
3~5min
Normally open, pointer indicating the degree of opening
H16091
DRQ-3B
＞115N
3mm
3~5min
Normally closed,transparent window indicating the degree of opening
H16092
DRQ-3K
＞115N
3mm
3~5min
Normally open,transparent window indicating the degree of opening
H16093
DRQ-4B
＞115N
3mm
3~5min
Normally closed,install the valve body through the clamping
H16094
DRQ-4K
＞115N
3mm
3~5min
Normally open,install the valve body through the clamping

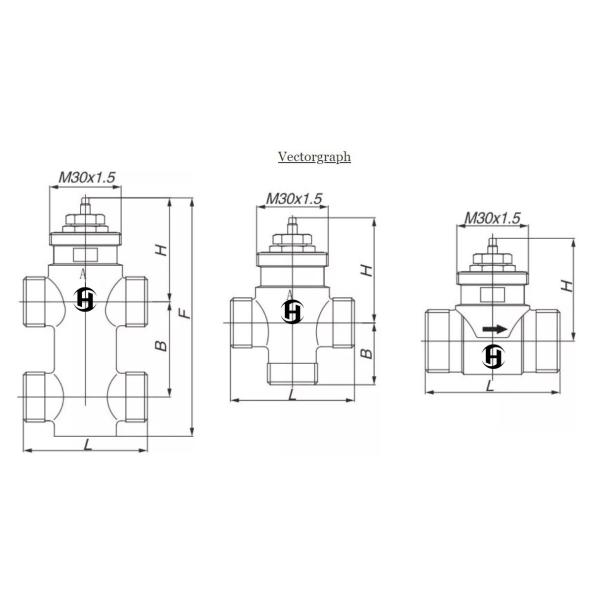

Drawings:

Stainless Steel HVAC Control Parts Electric Thermal Valve DRF For Air Conditioner

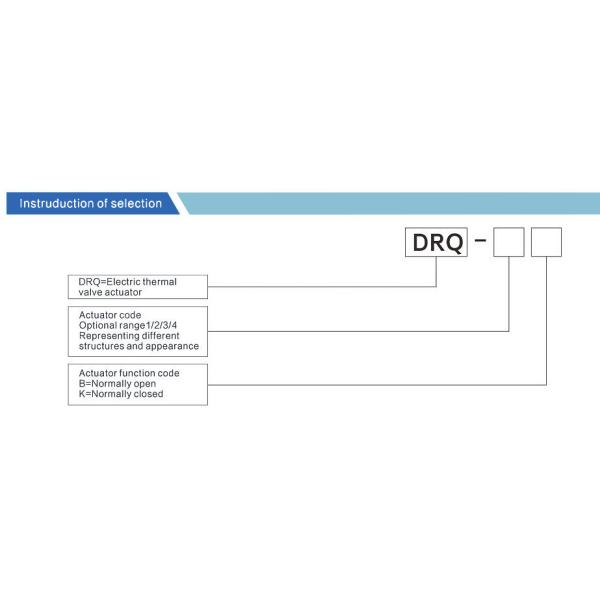

Types For Selections:

Stainless Steel HVAC Control Parts Electric Thermal Valve DRF For Air Conditioner

Stainless Steel HVAC Control Parts Electric Thermal Valve DRF For Air Conditioner

Stainless Steel HVAC Control Parts Electric Thermal Valve DRF For Air Conditioner
