Specifications
Brand Name :
Hengxiang
Model Number :
DDF-X
Certification :
SCOC
Place of Origin :
China
MOQ :
100 Sets
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50000 PCS/ per Month
Delivery Time :
30 Working days
Packaging Details :
Carton
Product Name :
Motorized zone valve
Material :
Forged brass
Type :
Valve 2- way
Warranty :
1 year
Temperature of Media :
5-95 degree
Working medium :
Water
Power :
Electric
Customized support :
OEM, ODM
Description

2-Way and 3- Way DN 15-25 Easy Installation Brass Temperature Control Motorized ValveGate Valvesfor HVAC Control

Product Details:

Product Name: Gate Valves, Water Heater Service Valves, Temperature & Pressure Relief Valves

Valve type: 2-way

Place of Origin: Zhejiang, China

Temperature of Media: Normal Temperature

Working medium: Cold/Hot water

Working pressure:1.6 Mpa

Loading Port & Delivery

Loading Port: Ningbo/Shanghai

Delivery Support: By Land, by Sea or by Air

Product Introduction:

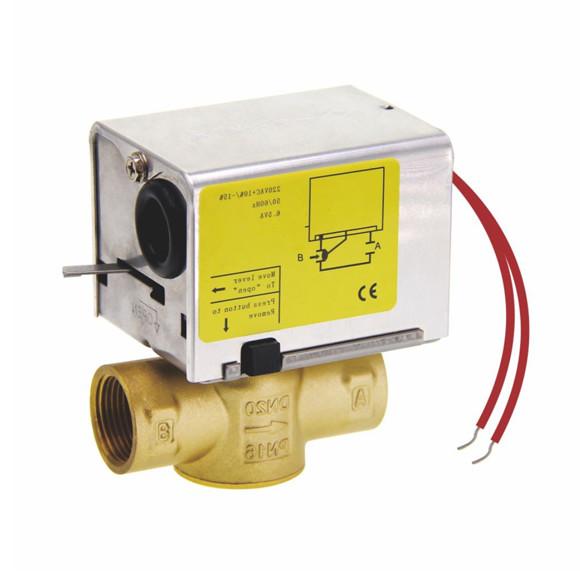

DDF-X series motorized valve is available for controlling central air conditioning and water heating system's opening and closing to control the

room temperature. The control valve depends on the paraffin wax propeller drives the spring to reset. The actuator is normally closed when it

doesn't work. If it needs to work, the thermostat will provide a signal of opening, then the actuator will get the power to work. Opening the valve,

the cold and hot water will come into the fan coil to provide the cold or hot air. When the set temperature is achieved, the thermostat will cut off

the actuator 's power, then the reset spring can close the valve to stop the water which flows into the coil. Hence the room temperature is always

maintained within the set range by the valve's opening and closing. The actuator and valve are connected by clamp connection way. Actuator

should be installed after the valve. The installation is very convenient. Actuator installation can be close to the wall to savespace. This product is

durable and reliable.The operating noise is very low.

Specification:

Order
No.
Model No.
Valve
Type
DN
Thread
Size
Kvs
Maximum
differential
pressure
kPa
Dimensions
L
W
H
12000
DDF-X-215*DFQ-XA1-220
2-way
15
G1/2
2.2
200
81
21
19
12001
DDF-X-220*DFQ-XA1-220
2-way
20
G3/4
3
180
81
21
19
12003
DDF-X-225*DFQ-XA1-220
2-way
25
G1
2.9
150
88
25
23
12008
DDF-X-315*DFQ-XA1-220
3-way
15
G1/2
2.6
200
81
35
19
12009
DDF-X-320*DFQ-XA1-220
3-way
20
G3/4
3.4
180
81
35
19
12010
DDF-X-325*DFQ-XA1-220
3-way
25
G1
2.9
150
92
42
23

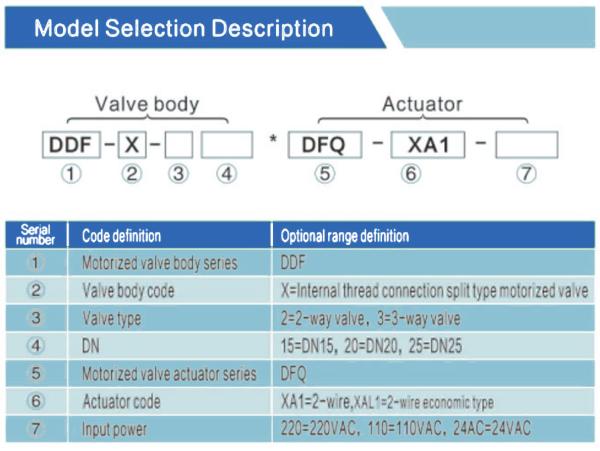

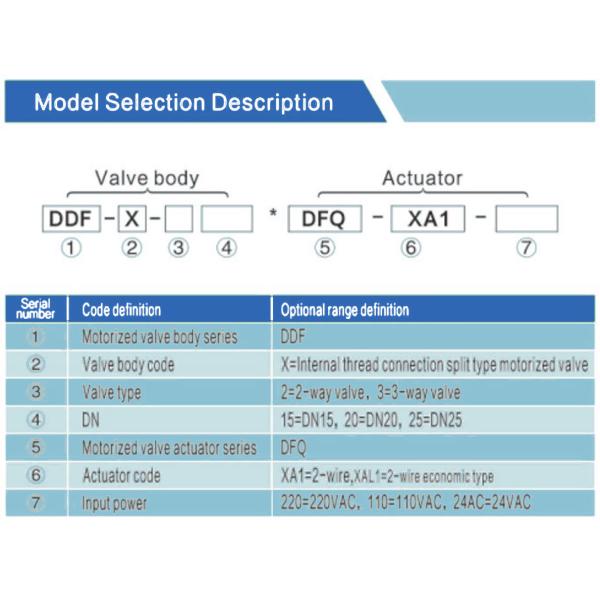

Note: The table is recommended model, you can refer to the following selection
description of the combination of models, please consult the sales staff for details.
