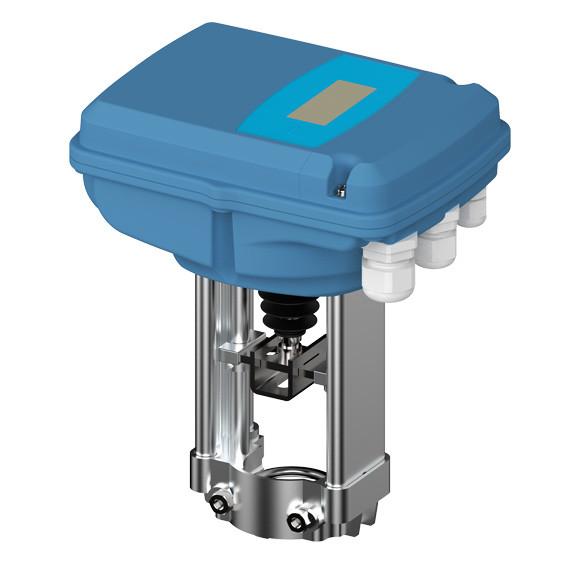

Brass HVAC Control Parts Cast Ironed Electric Motorized Valve 2 way SCOC
Brass HVAC Control Parts Cast Ironed Electric Motorized Valve 2 way SCOC
Brass HVAC Control Parts Cast Ironed Electric Motorized Valve 2 way SCOC
Brass HVAC Control Parts Cast Ironed Electric Motorized Valve 2 way SCOC
Brass HVAC Control Parts Cast Ironed Electric Motorized Valve 2 way SCOC
Brass HVAC Control Parts Cast Ironed Electric Motorized Valve 2 way SCOC
Brass HVAC Control Parts Cast Ironed Electric Motorized Valve 2 way SCOC
Brass HVAC Control Parts Cast Ironed Electric Motorized Valve 2 way SCOC
Specifications
Brand Name :
Hengxiang
Model Number :
DDF-S-J- DN32, DN40, DN50,DN65, DN80,DN100, DN150,DN200
Certification :
SCOC
Place of Origin :
China
MOQ :
200 PCS
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
300000 PCS/ per Month
Delivery Time :
30 Working days
Packaging Details :
Carton box
Material :
Brass, Stainless steel
Valve Type :
2-way 3-way
Nominal pressure (PN) :
1.6MPa
Working medium :
Water, fluid temperature -10-95℃
Valve leakage :
less than 0.05% of KVs
Flange standard :
GB/T 17241.6-2008 PN10
Stem Seal :
Four layers V type O nitrile rubber seals, PTFE envelope
Description

Features and Notes

1.The series valve can be compatible with Johnson actuator.

2.The valve stem downward running is the closing direction of the valve.

Make sure the pipe is clean and without oxide and metal after welding before installation.

3. It must be at the same point and free from shocks when connecting

the pipe and valve body. The flow direction should be same as the direction of the label.

4. When the actuator is vertically installed on the valve ,please avoid installing it under the valve to leave enough space for daily maintenance (like remove the actuator).

5.Cut off the electricity to make sure there is no pressure in the water system when maintenance.

Loading Port & Delivery

Loading Port: Ningbo/Shanghai

Delivery support: By Land, by Sea or by Air

Customized support: OEM, ODM

Product Type and Dimension:

Model No.
DN
Connection
Kvs
Travel
Dimensions
type
L
d
D
H
H1
DDF-S-J-232
32
Flange
21
20
180
ø100
ø135
125
118
DDF-S-J-240
40
Flange
28
20
200
ø110
ø145
128
130
DDF-S-J-250
50
Flange
34
20
230
ø125
ø165
128
145
DDF-S-J-265
65
Flange
54
20
290
ø145
ø185
140
176
DDF-S-J-280
80
Flange
67
20
310
ø160
ø200
147
178
DDF-S-J-2100
100
Flange
120
40
350
ø180
ø220
191
210
DDF-S-J-2125
125
Flange
180
40
400
ø210
ø250
205
240
DDF-S-J-2150
150
Flange
256
40
480
ø240
ø285
221
280
DDF-S-J-2200
200
Flange
330
40
600
ø295
ø340
254
340
DDF-S-J-332
32
Flange
21
20
180
ø100
ø135
125
118
DDF-S-J-340
40
Flange
28
20
200
ø110
ø145
128
130
DDF-S-J-350
50
Flange
34
20
230
ø125
ø165
128
145
DDF-S-J-365
65
Flange
54
20
290
ø145
ø185
140
176
DDF-S-J-380
80
Flange
67
20
310
ø160
ø200
147
178
DDF-S-J-3100
100
Flange
120
40
350
ø180
ø220
191
210
DDF-S-J-3125
125
Flange
180
40
400
ø210
ø250
205
240
DDF-S-J-3150
150
Flange
256
40
480
ø240
ø285
221
280
DDF-S-J-3200
200
Flange
330
40
600
ø295
ø340
254
340

Brass HVAC Control Parts Cast Ironed Electric Motorized Valve 2 way SCOC

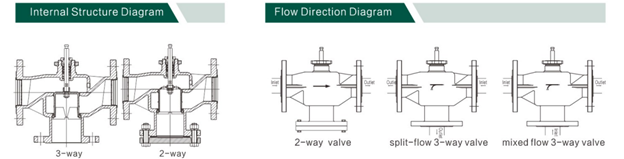

Structure Diagram

Brass HVAC Control Parts Cast Ironed Electric Motorized Valve 2 way SCOC

Brass HVAC Control Parts Cast Ironed Electric Motorized Valve 2 way SCOC
