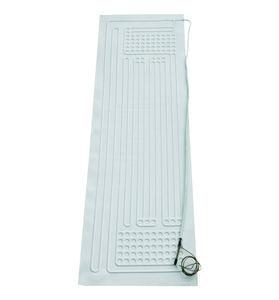

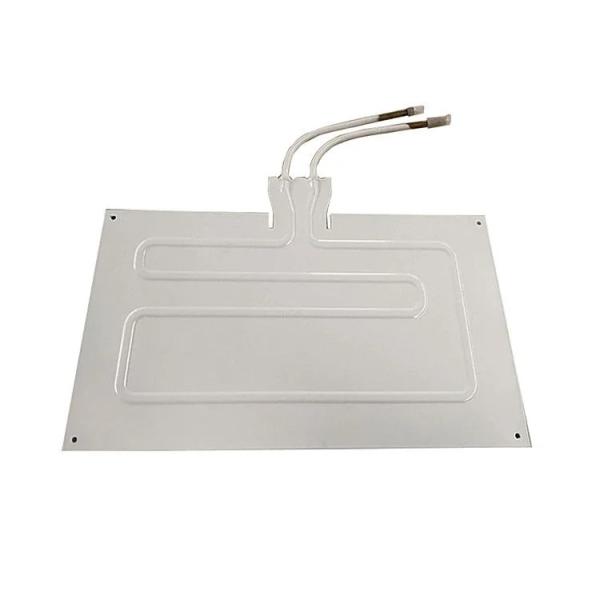

Aluminium Roll Bond Plate Type Evaporator 3.0mm For Refrigerator
Aluminium Roll Bond Plate Type Evaporator 3.0mm For Refrigerator
Aluminium Roll Bond Plate Type Evaporator 3.0mm For Refrigerator
Aluminium Roll Bond Plate Type Evaporator 3.0mm For Refrigerator
Aluminium Roll Bond Plate Type Evaporator 3.0mm For Refrigerator
Aluminium Roll Bond Plate Type Evaporator 3.0mm For Refrigerator
Aluminium Roll Bond Plate Type Evaporator 3.0mm For Refrigerator
Aluminium Roll Bond Plate Type Evaporator 3.0mm For Refrigerator
Aluminium Roll Bond Plate Type Evaporator 3.0mm For Refrigerator
Aluminium Roll Bond Plate Type Evaporator 3.0mm For Refrigerator
Aluminium Roll Bond Plate Type Evaporator 3.0mm For Refrigerator
Aluminium Roll Bond Plate Type Evaporator 3.0mm For Refrigerator
Aluminium Roll Bond Plate Type Evaporator 3.0mm For Refrigerator
Aluminium Roll Bond Plate Type Evaporator 3.0mm For Refrigerator
Aluminium Roll Bond Plate Type Evaporator 3.0mm For Refrigerator
Aluminium Roll Bond Plate Type Evaporator 3.0mm For Refrigerator
Specifications
Brand Name :
HX
Model Number :
HX02W-061
Certification :
ISO9001,ROHS
Place of Origin :
CHINA
MOQ :
1pc
Price :
To be negotiated
Payment Terms :
T/T
Supply Ability :
5000pcs/day
Delivery Time :
30 days
Packaging Details :
pack in seaworthy wooden case
Application :
Commercial,household
Afte-sales service provided :
Free spare parts,onsite installation
Product name :
Roll bond type aluminum evaporator
Thickness of aluminium plate :
1.8-3.0mm
Usage :
Refrigetor
Warranty :
One year
Type :
Refrigerator parts
Power Source :
Gas
Condition :
New
Material :
Aluminum plate
Surface :
Powder painting
Structure :
single side or double side
Description

Aluminium Roll Bond Evaporator plate for refrigerator

Product Description:
Commercial Refrigerator Shell And Tube Chest Freezer Roll Bond Type Aluminum Evaporator
No frost roll bond evaporator,refrigerator roll bond evaporator,roll bond evaporator.

If you are interested in our products, please don't hesitate to contact me! We can produce according to your drawings or your samples!

No frost(oil) bond evaporator, refrigerator roll bond evaporator, roll bond evaporator.
Raw Al-plate:finished products thickness:1.12.0mm,
material raw material Al plate thickness:1.42.5mm
　 Double side rollbond evaporator.
Structure single side rollbond evaporator,
　 part single side rollbond evaporator
　 Prepare the material, Cleaning, roughing surface, Printing, Riveting, Rolling, Annealing, Blow up,
Key process Punching Folding and shaping Capillary connecting, Assembly weirding, Leakage Test, cleaning and
　 drying, Coating, Curling, Inspection, Packing
Technical 1) Size:width 590(max), length 2050(max)
Standards 2) Can produce according to the drawing or sample supplied by clients, also can help the clients design
　 and produce different models of roll bond evaporator.
　 1) Surface treated with powder painting to prevent the corrosion
Performance 2) inner cleanness can meet the requirement of R134a&CFC cooling system.
　 3) Can satisfy the cooling capability requirements.
Capacity3.5 million sets per year(10000 sets per day)
R134a Cooling System Tube Inside standards
Residual moisture s5/100cm3
Residual impurity s1/100cm3
Residual mineral oil s100/100cm3
Residual chlorine <5vloppm
Residual paraffin ≤3/
Biggest single impurity so.5mm
　
Specification of coating
Coating thickness thickness of coating4090m
Hardness of coating 22H
Impact of coating 50cm? kg/cm impact, no crack
Adhesion of coating ztwo grade
Flexibility of coating Around R=3D bend 180?, no crack or no fall off
Color tolerance of powder

FAQ
1. Q: What is the minimum order?


A: Yes, our company mainly deals with wholesale deals, but if you insist buying one piece, or you just need one piece, we would be very likely to make the MOQ as 1 piece for you though.


2. Q: How can I get a sample to check your quality? How long can I get the sample?

A: After price confirmed, SAMPLE could be provided for your evaluation.After you confirm the sample details, the samples will be ready for delivery in 3-7days,and will be sent to you via express and arrive in 3-5days.

3. Q: What payment methods your company accept?

A: We accept T/T.

4. Q: What's the shipment terms and delivery time of your company?

A: FOB,CFR,CIF,15-50days

5. Q: Do you give any discount ?


A: We'll surely try our best to help you get those by the best price and good service at the same time.
