Specifications
Brand Name :
HengXiang
Model Number :
LQF
Certification :
ISO9001, CE
Place of Origin :
CHINA
MOQ :
300 PCS
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50000PCS Per Week
Delivery Time :
30 Working days
Packaging Details :
Cartons
Product Name :
compact ball valve
Material :
Brass
Color :
Golden Yellow
Medium temp :
-30degree~+120degree
Type :
Air Conditioner Parts
Size :
1/4"~3-1/8"
Customized Support: :
OEM, ODM
Warranty :
1 Year
Loading Port :
Shanghai or Ningbo
Description

Product Features

1,Small fluid resistance, simple structure, small size, light weight, compact and reliable, good sealing performance, convenient operation, quick on/off convenient maintenance, wide range of application.

2.Automatic switching without manual operation.

3.Built-in position indicating device, observe the opening and closing of the valve at any time.

4.With manual adjustment mechanism, allowing manual operation in emergency situations for fast positioning.

5.Full automatic overload protection.

Technical Data

1.Applicable medium:R22,R134aR407C. R410a etc.

2.Applicable medium temperature:-30°~+120℃.

3.Maximum working pressure:42MPa.

4.Applicable environment temperature:-20°C-+60℃C.




Product Specifications:

LQF series (without charging port)

Order No. Model No. Specification Dimension(mm) PCS/CTN
D H L L1
H31028 LQF-02 1/4 ∅6.35 35 165 7 80
H31000 LQF-03 3/8 ∅9.52 35 165 10 80
H31001 LQF-04 1/2 ∅12.7 35 165 10 80
H31002 LQF-05 5/8 ∅15.88 36.8 165 14 30
H31003 LQF-06 3/4 ∅19.1 42 180 15 30
H31004 LQF-07 7/8 ∅22.3 42.7 200 16 30
H31005 LQF-08 1 ∅25.4 42.7 200 16 30
H31006 LQF-09 1-1/8 ∅28.6 54 215 20 15
H31007 LQF-10 1-1/4 ∅31.8 54 215 20 15
H31008 LQF-11 1-3/8 ∅34.9 58.5 256 24 12
H31009 LQF-13 1-5/8 ∅41.3 68 288 25 6
H31010 LQF-17 2-1/8 ∅54 77.6 322 33 4
H31011 LQF-21 2-5/8 ∅66.7 84.5 377 35 3
H31012 LQF-24 3 ∅76.2 84.5 379 36 3
H31013 LQF-25 3-1/8 ∅79.4 84.5 377 36 3

LQF-A with charging port

Order No. Model No. Specification Dimension(mm) PCS/DTN
D H L L1 L2
H31014 LQF-03A 3/8 ∅9.52 35 165 10 34.5 80
H31015 LQF-04A 1/2 ∅12.7 35 165 10 37 80
H31016 LQF-05A 5/8 ∅15.88 36.8 165 14 37 30
H31017 LQF-06A 3/4 ∅19.1 42 180 15 40.5 30
H31018 LQF-07A 7/8 ∅22.3 42.7 200 16 51 30
H31019 LQF-08A 1 ∅25.4 42.7 200 16 51 30
H31020 LQF-09A 1-1/8 ∅28.6 54 215 20 52 15
H31021 LQF-10A 1-1/4 ∅31.8 54 215 20 52 15
H31022 LQF-11A 1-3/8 ∅34.9 58.5 256 24 67 12
H31023 LQF-13A 1-5/8 ∅41.3 68 288 25 77 6
H31024 LQF-17A 2-1/8 ∅54 77.6 322 33 78 4
H31025 LQF-21A 2-5/8 ∅66.7 84.5 377 35 108 3
H31026 LQF-24A 3 ∅76.2 84.5 379 36 95 3
H31027 LQF-25A 3-1/8 ∅79.4 84.5 377 36 96 3

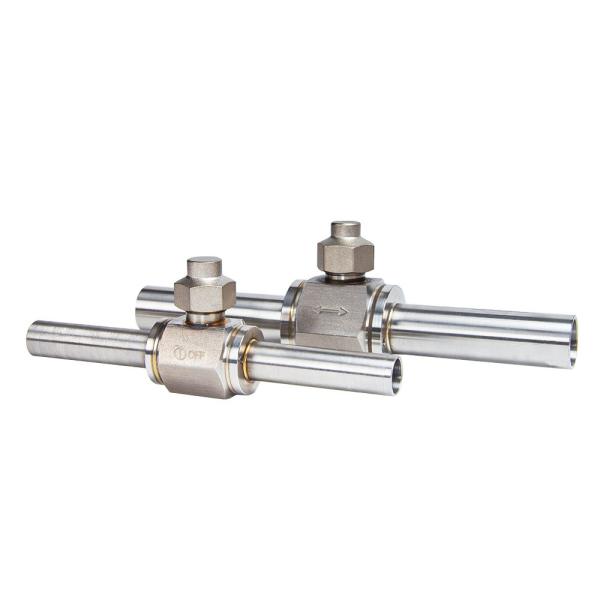

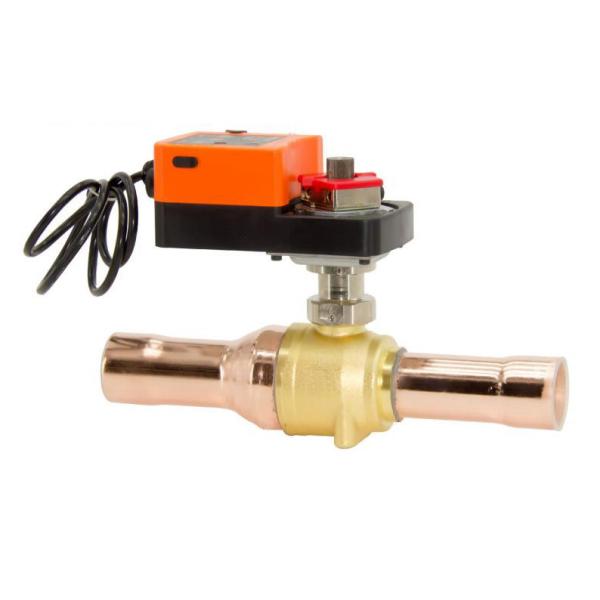

Refrigeration Control Compact ball Valve Brass -30degree For R22Refrigeration Control Compact ball Valve Brass -30degree For R22


Q1: Can you provide sample?

A1: Yes, we can send the sample for free but not pay the sample freight.


Q2: What kind of Certificate do you have?
A2: Our products have the ISO9001,ISO17025,ISO14001,ISO14001,ISO 45001 SCOC.


Q3: How are orders packed?
A3: Normally boxes packed inside an outer carton and placed on a wooden pallet.

Q4: How long is the warranty of your products?
A4: We provide one year after-sale guarantee.

Q5: Can you produce the products labeled with the client's brand?

A5: OEM, ODM are supported.

Q6: What kind of payment terms do you accept?
A6: Normally 30% T/T in advance as deposit, balance paid before shipment.
