Specifications
Brand Name :
Hengxiang
Model Number :
SFK Series
Certification :
ISO, CE
Place of Origin :
China
MOQ :
500 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
40000 PCS per Month
Delivery Time :
30 Working days
Packaging Details :
Carton or Pallet
Material :
Stainless Steel
Color :
Dark Blue
Type :
Filter Drier for Refrigeration \ chiller filter drier
Application :
Commercial Refrigerator & Freezer
Warranty :
1 Year
Loading Port :
Ningbo or Shanghai
Delivery Term :
By Air or By Sea
Description

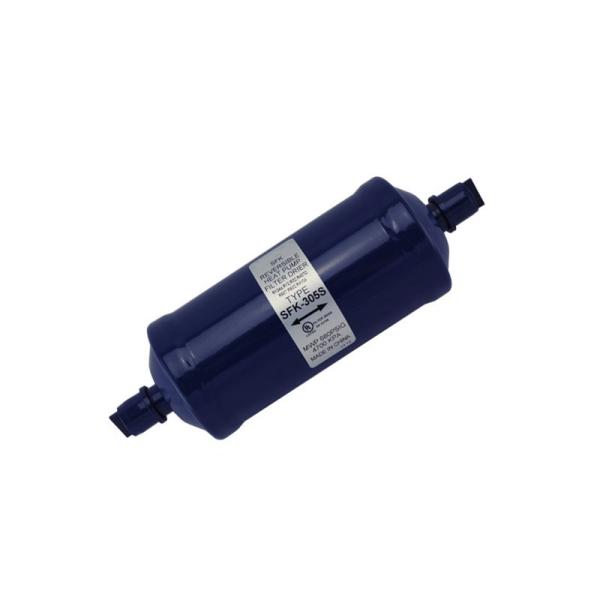

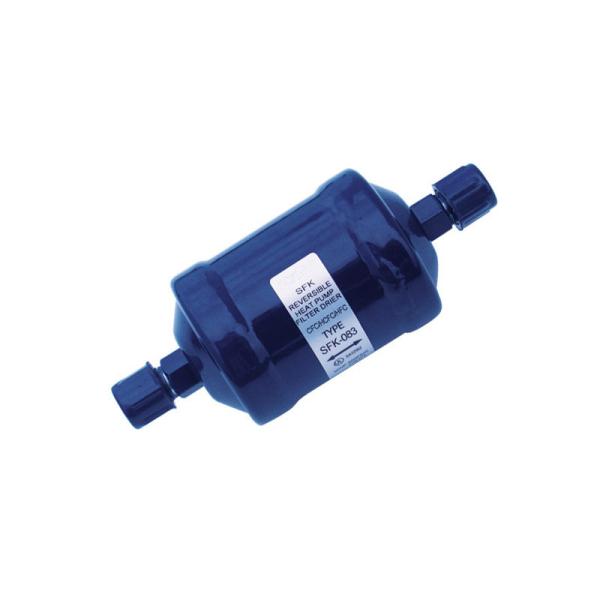

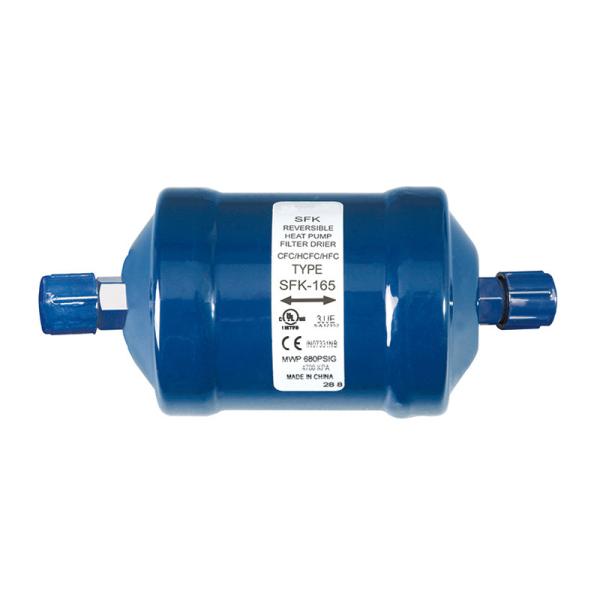

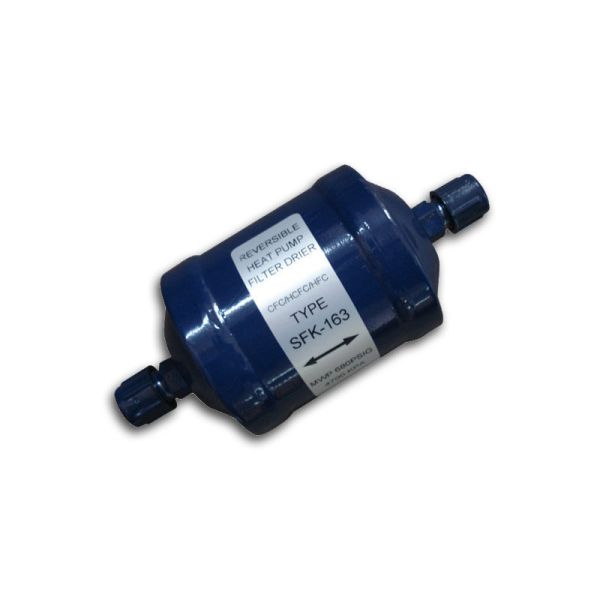

Bi Flow Liquid Line Drier For Refrigeration SFK Series

Product Introduction:

SFK series reversible heat pump liquid line filter-drier, using high-quality compression of small spherical particles sintered desiccant module, combined with high-density filter cloth, each end of the installation of a non-reflux valve can reverse Impurities, to the role of drying filter, that can effectively filter residual water and debris in the system.

Feature:

1. Small spherical particles of high strength sintered desiccant module, to make run-time without shock and friction, reduce wear of the desiccant
2. High moisture and acid removal capacity.

3. Drying and filtering effect of combining, both ends of the installation of a non-reflux valve, two-way operation can intercept stolen goods
4. Filtration: 20 microns.

5. With minimum pressure drop design allows the system to play better energy efficiency in the run-time.

6. Corrosion resistant epoxy powder paint finish, salt spray test above 500 hours
7. Two kinds of connection methods: ODF and SAE; In order to facilitate welding, ODF adoption of TP2 copper reserve.
8. For a variety of refrigerant R-12, R-134A, R-22, R-404A, R-407C, R-410A, R-500, R-502, R-507. Ect.
9. Maximum working pressure: 4.7mpa(680 psig), with the UL certification

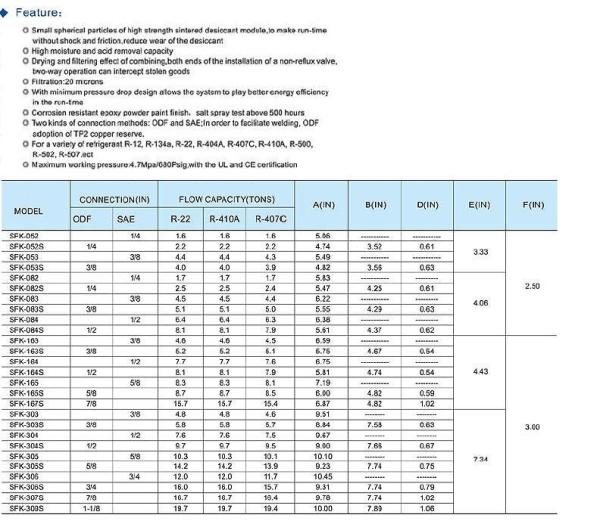

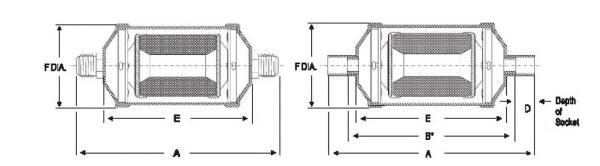

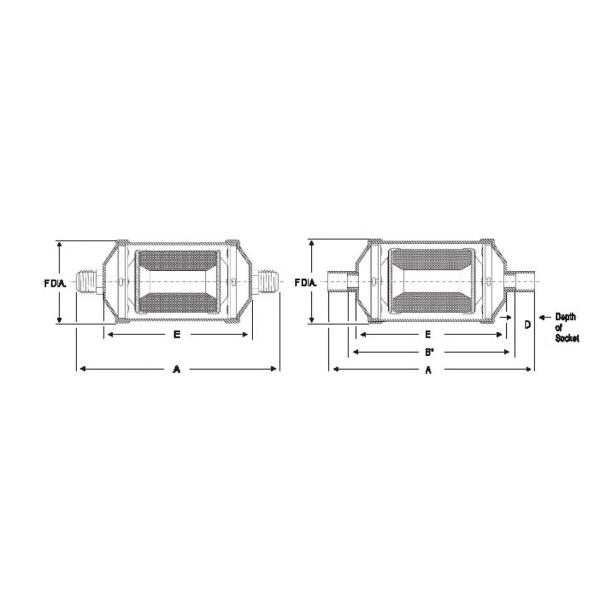

Product Data:
Model No. CONNECTION KWR22
LIQUID FLOW CAPACITY KWR22
A(in )
B(in)
ΦC(in)		 WATER CAPACITY WATER DROP
LIQUID TEMP 24/52
ODF SAE
SFK-083 3/8 22.5 5.94 4.06



2.64

7.26.0
SFK-083S 3/8 25.3 5.31
SFK-084 1/2 32.0 6.19 4.06
SFK-084S 1/2 33.4 5.38
SFK-085 5/8 38.6 6.63 4.13
SFK-085S 5/8 40.4 5.63
SFK-163 3/8 22.9 6.75 4.88



3.15

11.89.6
SFK-163S 3/8 26.0 6.13
SFK-164 1/2 38.3 7.00 4.88
SFK-164S 1/2 40.4 6.13
SFK-165 5/8 41.5 7.44 4.88
SFK-165S 5/8 43.3 6.44 4.88
SFK-167S 7/8 44.3 7.00

Dark Blue Bi Flow Liquid Line Drier 4.7mpa For Refrigeration SFK Series

Dark Blue Bi Flow Liquid Line Drier 4.7mpa For Refrigeration SFK Series

FAQ:

Q1: Can you provide sample?

A1: Yes, we can send the sample for free but not including the sample freight.

Q2: What kind of Certificate do you have?


A2: Our products have the ISO9001,ISO17025,ISO14001,ISO14001,ISO 45001 SCOC.

Q3: How are orders packed?


A3: Normally boxes packed inside an outer carton and placed on a wooden pallet.

Q4: How long is the warranty of your products?


A4: We provide one year after-sale guarantee.

Q5: Can you produce the products labeled with the client's brand?

A5: OEM, ODM are supported.


Q6: What kind of payment terms do you accept?


A6: Normally 30% T/T in advance as deposit, balance paid before shipment.
