Accuracy Refrigeration Hand Tools Eccentric Cone Flaring Tool Cordless WK - 806A
Accuracy Refrigeration Hand Tools Eccentric Cone Flaring Tool Cordless WK - 806A
Accuracy Refrigeration Hand Tools Eccentric Cone Flaring Tool Cordless WK - 806A
Accuracy Refrigeration Hand Tools Eccentric Cone Flaring Tool Cordless WK - 806A
Accuracy Refrigeration Hand Tools Eccentric Cone Flaring Tool Cordless WK - 806A
Accuracy Refrigeration Hand Tools Eccentric Cone Flaring Tool Cordless WK - 806A
Accuracy Refrigeration Hand Tools Eccentric Cone Flaring Tool Cordless WK - 806A
Accuracy Refrigeration Hand Tools Eccentric Cone Flaring Tool Cordless WK - 806A
Specifications
Brand Name :
HengXiang
Model Number :
WK - 806A
Certification :
IOS9001,SGS,CE
Place of Origin :
CHINA
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
30 work days
Supply Ability :
100000000000 Set/Sets per Year
Packaging Details :
color box OR plastic box +color box +carton
MOQ :
30 Sets
product name :
Eccentric Cone Type Flaring Tool
Type :
Flaring and swaging tool
Material :
Alloy Steel
Applicable Pipe :
Copper Pipe
Color :
Silver
For Inch :
1/4",5/16",3/8",1/2",5/8"&3/4"
For metric :
6mm,8mm,10mm,12mm,16mm&19mm
Customized support :
OEM, ODM
Description

Detail

Accuracy Refrigeration Hand Tools Eccentric Cone Flaring Tool Cordless WK - 806AAccuracy Refrigeration Hand Tools Eccentric Cone Flaring Tool Cordless WK - 806AAccuracy Refrigeration Hand Tools Eccentric Cone Flaring Tool Cordless WK - 806AAccuracy Refrigeration Hand Tools Eccentric Cone Flaring Tool Cordless WK - 806A

Item No Description
WK-806A(M) For inch:1/4″,5/16″,3/8″,1/2″,5/8″&3/4″O.D.Tubing individual packed in color box.
For metric:6mm,8mm,10mm,12mm,16mm & 19mmO.D.Tubing individual packed in color box.
WK-808A(M) For inch:3/16″,1/4″,5/6″,3/8",1/2",5/8"&3/4″O.D.Tubing individual packed in color box.
For mctric:5mm,6mm,8mm,10mm,12mm,16mm,&19mmO.D.Tubing individual packed in color box.
WK-809AM For inch and metric:6mm,1/4″,5/16″(8mm),3/8″,10mm,12mm,1/2″,5/8″(16mm)&3/4″(19mm)O.D.Tubing individual packed in color box.

Description

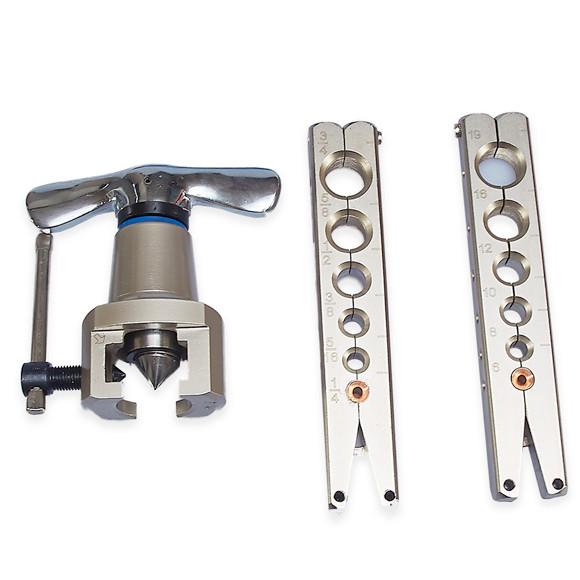

The pipe flaring tool, also known as tube expander,pipe swaging tool, is used for cutting and swaging the copper joint. It is
widely applied in the fields including air conditioning installation , car and other machine maintenance.
Pipe expander Flaring tools feature:
1. Flaring trip ring riveting process ensures long and reliable use.
2. Circular arc transition of flaring nozzle , makes the copper tube will not be broken after used long time.
3. Ergonomic design handle, comfort and effort.
4. Ring riveting, accurate flaring tube.

How to use a flaring tool to expand a tube (operation )


Used for copper tube expanding to bell mouth, so that the indoor and outdoor units of the split type air conditioner will be
connected through piping.
2. When flaring, attach the coupling nut to the annealed copper pipe first,
3. Then place the copper tube into the corresponding aperture of the gripping pliers, the height of the copper tube showed out of
the clamp is1/5 of the diameter;
4. Tighten the nut on both ends of the gripping pliers (clamp);
5.Use the the taper head of the flaring tool to press on the pipe nozzle ;
6. Slowly rotate the screw clockwise and squeeze the pipe nozzle into the bell-mouth
7. Eccentric cone will be rebound automatically after the work is finished, make the idle top head in revolution again for 1-2 times and have the flare face in fricition to make it prettier.
