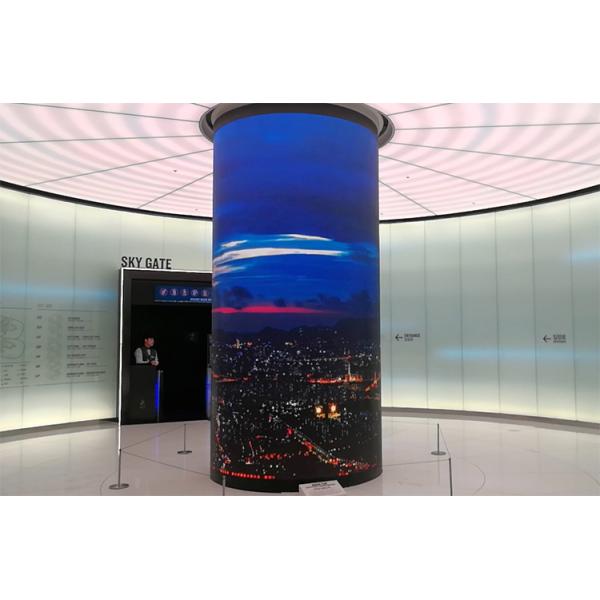

SMD2121 P4 1500nits Flexible Led Curtain Screen IP31
SMD2121 P4 1500nits Flexible Led Curtain Screen IP31
Specifications
Brand Name :
Reiss
Certification :
ROHS CE FCC EMS
Place of Origin :
ShenZhen
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Delivery Time :
7 work days
Pixel :
P2.5 P3 P4 P5 Etc
Customized :
According To Customer Requet To Produce
Warranty :
5 Years
Led Lamps :
Kinglight ,Nationstar , Epistar Etc
Controller System :
Novastar , Linsn ,Colorlight
Description

Merkmale:

1. flexibel und weich, kann jede Form, die einfach zu installieren.

2. Silikon-Maske. Gute Planlage.

3. Magnet installieren und front Öffnung Dienst, einfach zum zusammenbauen und pflegen.

(4) high-Definition kann das Bild sichtbar.

5. hohe Helligkeit. Die Helligkeit kann bis zu 1500 cd/qm, Helligkeit angepasst werden.

6. kein Mosaik durch hervorragende Ebenheit und schöne Einheitlichkeit der leuchtende, das Bildermachen weicher und lebendig.

7. unterstützt die Anpassung der Helligkeit und Weißabgleich benutzerdefinierte Anpassung mit 256 Stufen, die Mischung Verwendung von verschiedenen Chargen des Displays ermöglicht.

8. hohe Stabilität und lange Lebensdauer.

9. Treffen Sie Kunden verschiedene Form anfordern (Zylinder, Flasche, Kurve, Welle Blume Fackel etc.)

Technische Daten:

Flexible LED Screens Parameters

ITEM UNIT F2.5 F3 F4 F5
LED Type N/A SMD1010 SMD1515 SMD2121 SMD2121
Pixel Pitch mm 2.5 3 4 5
Ingress Protection IP 31, not water-proof, indoor installation only
Viewing Distance in/meter 98/2.5 118/3 155/4 195/5
Driving Way IP Constant Current
Driving Type Scan 1/24 1/30 1/16 1/16
Module Size mm 240×120 240×120 256×128 320x160m
Module Pixel Pixel 96×48 80×40 64×32 64×32
Working Voltage DC 5V±10%
Module Current(MAX) A ≈4A
Module Consumption W ≈20W
Power Port N/A VH4
Data Port W HUB75D(IDC16)
Module Maintenance N/A Front / back
Brightness Nits 800-1000
Refresh rate Hz 1920/3840
Digital Processing Bit 14
Gray Scale Level 16384
Colors Million 687
Color Temperature Deg.K 3,200-9,300 Adjustable
Brightness Control N/A 255
Contrast Ratio N/A 4000:1
Viewing Angle H Deg. 140
Viewing Angle V Deg. 140
AC Speration V AC90~264
Storage Tem. F/C -4 ~ 140F/-20C ~ +60C
Storage Humidity RH 10% ~ 85%
Operating Tem. F/C -4F ~ 140F/-20C ~ +60
Operating Humidity RH 10% ~ 85%
Lift time(50% brightness) Hour 100,000
Installation Type N/A Wall mounted
Control Mode N/A Video Sync
Bright/Color Correction N/A Support
Video Effect N/A 2K, 4K

SMD2121 P4 1500nits Flexible Led Curtain Screen IP31
