Indoor 1000 Nits P1.25 SMD0808 LED Moving Display Board
Indoor 1000 Nits P1.25 SMD0808 LED Moving Display Board
Indoor 1000 Nits P1.25 SMD0808 LED Moving Display Board
Indoor 1000 Nits P1.25 SMD0808 LED Moving Display Board
Indoor 1000 Nits P1.25 SMD0808 LED Moving Display Board
Indoor 1000 Nits P1.25 SMD0808 LED Moving Display Board
Indoor 1000 Nits P1.25 SMD0808 LED Moving Display Board
Indoor 1000 Nits P1.25 SMD0808 LED Moving Display Board
Specifications
Brand Name :
REISS
Model Number :
REISS-P1.25
Certification :
CE ROHS EMS FCC
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
5-10 work days
Product name :
Small Pitch LED Display
Dimension :
Customized
Tube chip color :
Full Color
Application :
Advertising Video Wall Screen
Warranty :
3 Years
Life span :
100000 Hours
Description

16:9 Golden Division Ratio

Our mission is to exceed our clients' expectations with a level of satisfaction that keeps them coming back. We realize that relationships are built on trust and dependability. We not only want your business today, we want to create a long lasting, lifetime business relationship.

IU Series HD led video wall can be point to point spliced ​​to the LED display fo standard 720P, 1080P, 2160P, 3840P, etc.

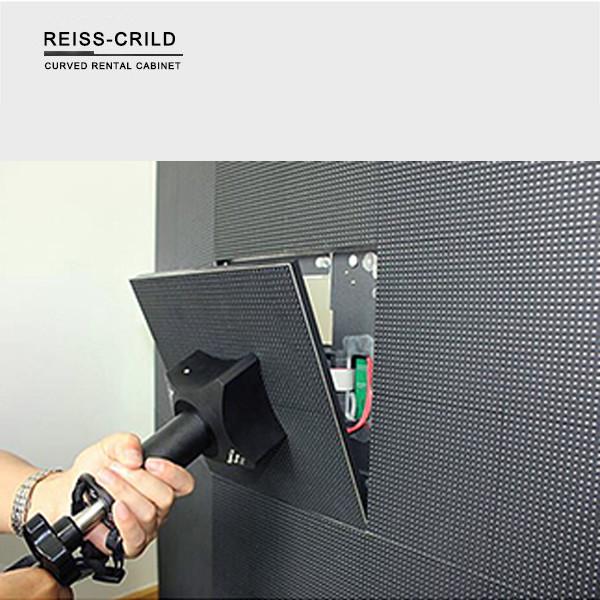

Front Maintenance

The IU series HD led video wall LED modules, receiver card, power supply are all front maintenance,
meet the needs of small space or where the needs of the cabinet thickness, enhanced the vision of
the space as well as its visionary effect.

Dual Backup System

Supporting Dual Control System,Dual Power Supply backup,Autoatically Switch the Picture in an
LED screen when it occurs any problems to make sure a stable and reliable image.

1. Ultra High definition: made with high quality SMD0808 black led beams


2. Seamless spliced, good evenness for 2K or 4K HD video, perfect display vision

3. High refresh rate up 3800 Hz, no ghost effection

4. Wide view angle: up to 160 degree for vertical and horizontal, no color difference

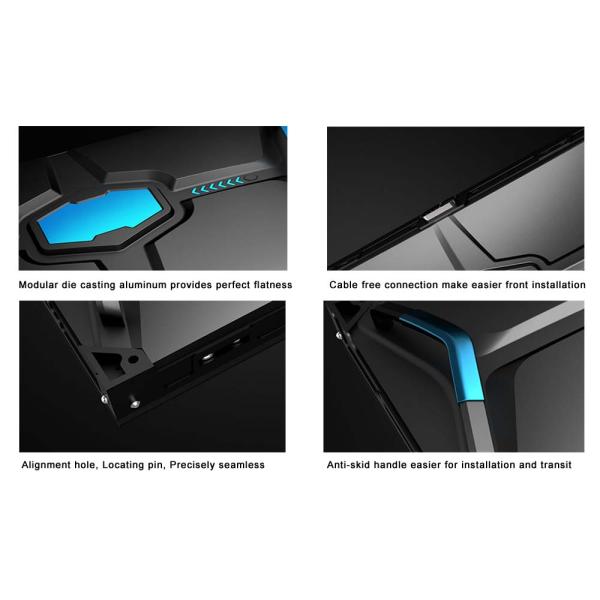

5. High strength: made with strong Die-casting Aluminum cabinets, good heat dissipation, and longer working life

6. Good resolution ratio: cabinet size based on 16:9 for screen size with 16:9 too, ensure the images with high fineness

7. Double back-up: double data and power supply to keep the data in safe condition and keep working even power is interrupt

Module
Model No.
REISS-P1.25
Pitch
1.25mm
Screen mode
Real Pixel
Physical density
640000 dots
Module size
200x 168.75mm
Module resolution
160 x135 pixels
LED type
SMD0808 Black
Drive mode
constant current
Cabinet
Resolution
480 x 270 pixels
Width
600mm
Height
337.5mm
Depth
65mm
Weight
10 KG/cabinet
Cabinet color
Black
Material
Die-casting Aluminum
LED panel
Brightness
<1000nits
Flatness
Gap≤0.2mm
Grey scale
65536 level
Screen color
281 trillion
Scan method
1/27 scan
Operation power
AC110V~220V, 50/60Hz
Max power consumption
1000W/m2
Ave power consumption
500W/m2
Control Mode
Synchronous display with control PC by DVI
Screen Refresh Frequency
3840Hz,
View angle
160°/160°
Support Input
composite, S-video, DVI,HDMI, SDI,HD-SDI,VGA
Control Distance
Ethernet cable≤120m or Fiber Optic>120m
Brightness Correction
pixel, module, cabinet
Operating humidity
10% - 95% RH
Operating life
100,000 hours
MTBF
5,000 Hours
Protection level
Indoor use
Out of control rate
0.02%

Indoor 1000 Nits P1.25 SMD0808 LED Moving Display Board

Indoor 1000 Nits P1.25 SMD0808 LED Moving Display Board

Indoor 1000 Nits P1.25 SMD0808 LED Moving Display Board

Indoor 1000 Nits P1.25 SMD0808 LED Moving Display Board

Show details

Indoor 1000 Nits P1.25 SMD0808 LED Moving Display Board

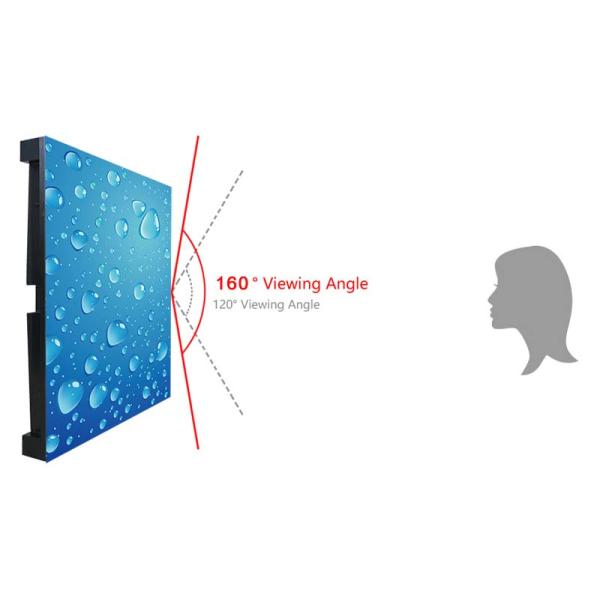

Wide Viewing Angle

160°wide horizontal & vertical viewing angle will be still claer image from different directions.
Indoor 1000 Nits P1.25 SMD0808 LED Moving Display Board
