1R1G1B P4 300W/M2 1500nits Indoor LED Video Wall IP43
1R1G1B P4 300W/M2 1500nits Indoor LED Video Wall IP43
1R1G1B P4 300W/M2 1500nits Indoor LED Video Wall IP43
1R1G1B P4 300W/M2 1500nits Indoor LED Video Wall IP43
Specifications
Brand Name :
Reiss
Model Number :
OFLD
Certification :
ROHS CE FCC UL EMS
Place of Origin :
shenzhen China
MOQ :
1
Price :
Negotiable
Usage :
Indoor
Pixels :
4mm
Display function :
Video,text,message,image,picture
Brightness :
1500nits
Warranty :
3~5 Years
Module size :
256X128 Mm
Life span :
100000hours
Color :
1R1G1B,Full-color
Scan mode :
1/16S
Refresh rate :
3840Hz,≥1920 Hz
Description

Features of P4 indoor led screen:

1, High quality LED chip and high anti-static electricity capacity.
2, Large viewing angle and smooth displaying provide excellent visual effect from every angle.
3, Ultra high brightness,low attenuation,high reliability and weather ability.
4, High Refresh Rate up to 1920Hz/s, could be adjusted.
5, High-Energy Saving, which could be save 66% energy.

Product Specifications of Indoor LED Video Screen:

Parameter Value
Physical Parameter Pixel Configuration 1R1G1B
Pixel Pitch (mm) 4
Pixel Matrix per m2 (dots) 62500
Pixel Matrix per Module 64*32
Pixel Matrix per Panel 192*192
Module Dimensions (L*W) / (mm) 256*128
Module Quality per Cabinet 3*6
Panel Dimension (L*W) / (mm) 768*768
Panel Material Iron / Aluminum
Panel Weight (Kg) 38Kg
Electronic Parameter Color Grayscale (Bit) 14
Gray Scale per Color (Level) 16384
Refresh Rate (Hz) 1280
Driving Type 1/16
Frame Frequency (Hz) 50/60
Signal Transmission Distance (m) CAT5 cable:<100m；Single mode fiber:<10km
Optical Parameter Brightness (cd/m2) ≥2000
Color Temperature (K) 6500-7500
Color Contrast 4000:1
Optimal Horizontal Viewing Angle (°) 160
Optimal Vertical Viewing Angle 160
Electrical Parameter AC Input Voltage (V) 100~240
AC Input Frequency (Hz) 50/60
AC Input Power Maximum Value (W/m2) 900
AC Input Power Typical Value (W/m2) 300
Circumstance Parameter Storage Temperature (℃) -40~+60
Operating Temperature (℃) -20~+50
Storage Humidity (RH) 10%~90%
Operating Humidity (RH) 10%~90%
IP Rating (Front / Rear) IP43 / IP31
Lifrtime Typical Value (Hrs) 100,000

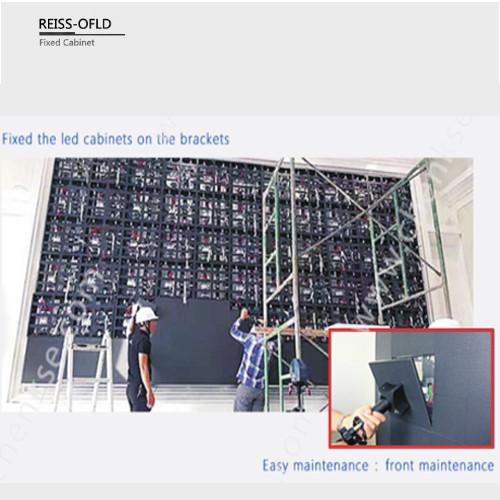

Installation type Cabinet Installation Type Fixed
Maximum Number of Panel for Lifting 8
