High Definition Video LED Module P2 Flexible LED Video Wall Circular Hanging Soft Any Shape
High Definition Video LED Module P2 Flexible LED Video Wall Circular Hanging Soft Any Shape
High Definition Video LED Module P2 Flexible LED Video Wall Circular Hanging Soft Any Shape
High Definition Video LED Module P2 Flexible LED Video Wall Circular Hanging Soft Any Shape
Specifications
Brand Name :
Reiss
Model Number :
P2
Certification :
ROHS CE FCC EMS
Place of Origin :
ShenZhen
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Delivery Time :
7 work days
Pixel :
P2
Customized :
according to customer requet to produce
Warranty :
5 years
Led lamps :
Kinglight ,Nationstar , Epistar etc
Controller system :
Novastar , Linsn ,Colorlight
Description

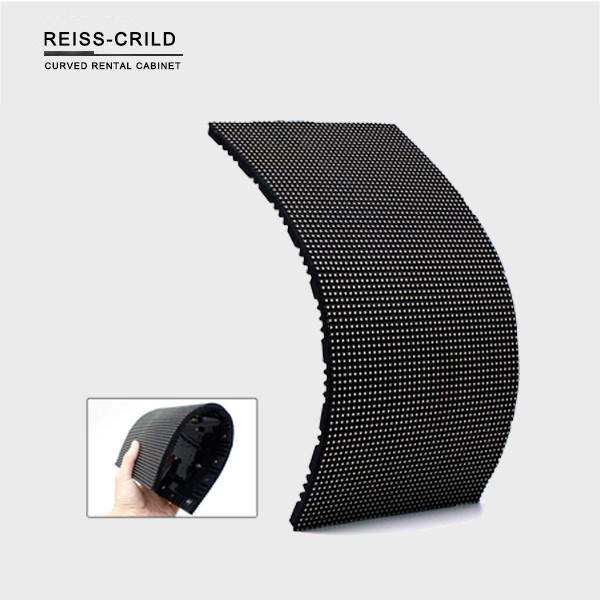

P2 Soft LED Display Screen Any Shape Round Hanging Soft Video LED Module

1. Flexible and soft, can be any shape.

2. Silicone mask, good flatness, no color difference.

3. Attractive shape, simple to use and come with audio and video system, fantastic showing.

4. Perfect signal transfer, support various signals such as AV,DP,VGA,DVI,YPBPR,HDMI,SDI etc. High-fidelity image playing.

5. Flight case and plywood box can be chosen for packing, making more convenient for packaging and transportation, also do enough protection for the led cabinet.

6. High refresh rate, support hanging, permanent installation and so on, a good choice for stage decoration, 360 degree shooting angle, avoid shooting flashing.

7. No mosaic due to excellent flatness and beautiful uniformity of the luminous, making the picture softer and more alive.

8. Supports customization of brightness and white balance customization with 256 levels, which allows mixing use of different batches of the display.

9. High stability and long life.

10. Meet clients request different shape (cylinder, bottle, curve, wave flower torch etc.)

Competitive Advantage

1.The ultra-slim and ultra-lightweight structure, increased design opportunities and lower transportation costs.

2.Advanced Surface Mount Technology (SMD)technology takes super wide viewing angle for the LED display;

3.Better color performance, higher contrast and refresh ratio,high luminance and definition

4.No significant color loss from the standard viewing angle

5.Professional lock design makes seamless connection available

6.Very stable and safety

7.Latest design of arc led display, even to the 360 angle

8.Sharpest video and high definition pic

High Definition Video LED Module P2 Flexible LED Video Wall Circular Hanging Soft Any Shape

High Definition Video LED Module P2 Flexible LED Video Wall Circular Hanging Soft Any Shape

Flexible LED Screens Parameters

Module parameters Pixel pitch 2mm
Pixel density 250000dots/m2
LED shape SMD 3 in 1
LED configuration 1R1G1B
Module Resolution 120*120
Module Size 240*240
Drive mode 1/26
Cabinet parameters Cabinet Resolution 240*240
Cabinet Size 480*480
Module Quantity 4pcs
Cabinet Weight 12kg/pcs
Display parameters Optical Brightness ≥3000cd/m2
Brightness adjustment Red,Green and Blue4096Grade/Each
Viewing angle H/V 140/140
Best viewing distance 1m-15m
Display color 16.7 million
Grey Scale 10bits/1024levels
Power Max Power Consumption 1000w/m2
Ave Power Consumption 500m/m2
Working Voltage AC 220V±10%
Control System Frame Frequency 60-85HZ
Refresh Rate 3000HZ
Color Temperature 5000-9300K
Signal Input Composite ,S-video,Component,VGA,DVI,HDMI,SDI,HD_SDI,etc
Controlling System PCTV non-linear editting card+DVI display card+main controller+optical fiber transmission(optical)
Controlling Distance

By CAT5 Cable:100M, Multi-Mode fiber: 500M,

Single-Mode fiber : 10 KM
Reliability Working Temperature -20+65℃
Working Humidity 10-90%RH
Life Span 100000hours
MTBF(Ave No Failure Time) 5000hours
Pixel Failing Rate 0.01%
IP rate IP31
