Outdoor External P10 Led Display High Contrast Ratio Large Viewing Angle
Outdoor External P10 Led Display High Contrast Ratio Large Viewing Angle
Outdoor External P10 Led Display High Contrast Ratio Large Viewing Angle
Outdoor External P10 Led Display High Contrast Ratio Large Viewing Angle
Specifications
Brand Name :
REISS
Model Number :
P10
Certification :
ROHS FCC CE EMS UL
Place of Origin :
Shenzhen
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
L/C, D/A, , Western Union, MoneyGram
Delivery Time :
7-10 Work days
Pixel :
10mm
Material :
Die casting aluminum or Iron
Module size :
320x160mm
Waterproof :
support
Cabinet size :
960x960mm or 1280x1280mm
Brightness :
more than 6500
Description

P10 Sports Perimeter Stadium led stadium advertising boards

Led Sport Cricket Live digital Scoreboard,P10 rgb Star Sports Led Display Screen outdoor

High Brightness
Durable outdoor SMD led with 5500-7000 nits high brightness to match different
occasions;
High Uniformity & Contrast
High quality led lamp and mask for super bright display and high contrast image;
Anti-UV Module
Anti-Oxidation module frame with anti-UV material to protect high temperature
ultraviolet radiation;
IP65 Waterproof Protect
With waterproof tape around the modules, prevent the rain and dust;
Reliable
Over 100000 working hours for longtime use;
Multi-Control Systems
Synchronous and asynchronous systems for option.

Application

Products have been widely used in airports, stations, ports, stadiums, banks, schools, churches, etc.

Outdoor External P10 Led Display High Contrast Ratio Large Viewing Angle

Outdoor External P10 Led Display High Contrast Ratio Large Viewing Angle

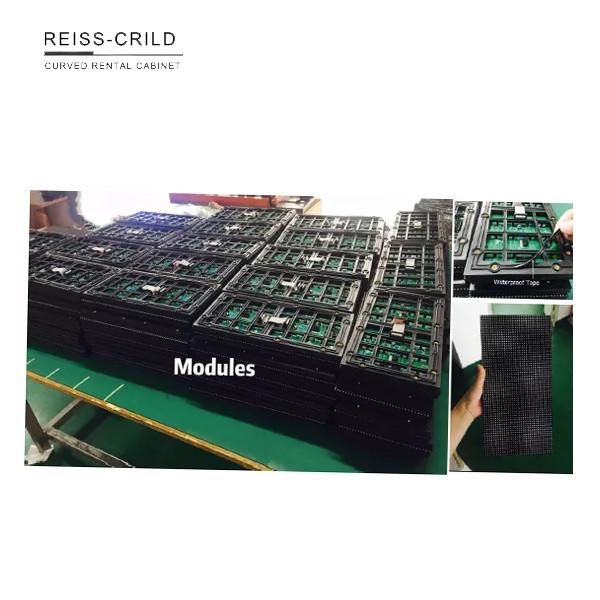

Module
Pitch/mm
P10
Module size/mm
320*160
Density of pixel/(dots/m2)
10000dots
Pixel composition
1R1G1B
Led encapsulation
SMD3535
Resolution of module
32*16
Screen
Optimum viewing distance
10-150m
View angle / °
120H,120V
Max power consumption
1000W/sqm
Size of cabinet/mm
960X960
Resolution of cabinet
96*96

Driving method
1/4 scan
Refresh rate Hz/S
≥960
Luminance of white balance
≥6500cd/sqm
Operation of Environmental
Temperature/℃
below 30 to above 50
Protective grade
IP65
Working voltage
110-220 VAC/+/- 10%
Grey scale/color
14bits
Brightness adjustment
4096 levels of each color(manually),
100 levels of each color(automatically)
Input signal
RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
Control system
Linsn / Nova(sending card, receiving cards and Hubs)
Average of non-failure life
>10,000h
Life span
>100,000h
Functionless dot rate
<0.0001
