P12 Outdoor RGB Led Billboard Display Waterproof IP65 , Electronic Billboard Signs
P12 Outdoor RGB Led Billboard Display Waterproof IP65 , Electronic Billboard Signs
P12 Outdoor RGB Led Billboard Display Waterproof IP65 , Electronic Billboard Signs
P12 Outdoor RGB Led Billboard Display Waterproof IP65 , Electronic Billboard Signs
Specifications
Brand Name :
Reiss
Model Number :
P12
Certification :
CE ROHS FCC EMS
Place of Origin :
Shenzhen
MOQ :
Negotiation
Price :
Negotiable
Supply Ability :
200000000000
Packaging Details :
wooden case
Usage :
Outdoor
Display Function :
Video
Product Name :
Full Color LED Display Sign
Feature :
High Temperature Resistance
Color :
RGB
Type :
Electronic Billboard Signs
Description

P12 Outdoor RGB Led Billboard Display Waterproof IP65 , Electronic Billboard Signs

1. CE&RoHS certificate

2. 36 months warranty and Life long free tech-support

3. Excellent contrast ratio, high resolution/high definition

4. Perect uniformity and no mosaic

5. Waterproof IP65

6. Light weight and easy to install

7. Available models: P10, 12, 16, 20, 25, 31.25, ect.

Application:

Commercial advertising, Stadium perimeter, mobile media, night club, entertainment events, business establishments, such as banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio, shopping malls, railways, airports, harbors, etc;

Advantage:

1. High Contrast ratio: 4000:1

2. First-class LED chip

3. Clear vivid image quality

4. Long life time

5. Easy Installation & Operation

6. Convenient Servicing

P12 Outdoor RGB Led Billboard Display Waterproof IP65 , Electronic Billboard Signs

SBO-P12 (Pitch 12mm outdoor full color-1/2 scan)
Colour temperature 5000~9000 k
Pixel structure φ3 oval lamp, 1R1G1B
Pixel pitch 12mm
Pixel density 6, 944 dots/㎡
Luminance 7, 000cd/㎡
Module dimension 192mm(W) * 192mm(H)
Module resolution 16 pixel(W) * 16 pixel mm(H)
Cabinet dimension 1152 * 768mm
Cabinet resolution 96 * 64
Cabinet area 0.885 sq. meter
Optimal visual distance >12m
Visual angel 110 / 50 degree (H/V)
Max power consumption ≤1100w / ㎡
Average power consumption ≤700w / ㎡
Brightness adjustment Adjust according to the environment
brightness software (0%-100%adjustable)
Gray scale point by point 4096 gray grade levels of
each color, 16 bits γ correction available
Drive mode 1/2 dynamic scan, constant current
Frame frequency ≥60HZ
Refresh frequency ≥1000HZ
Input voltage AC 90~260 volts
Operation temperature ﹣40℃~ +65℃
Operation humidity 10％～90％
Input signal S-video, RF, RGB, Yuv, YC, composite…

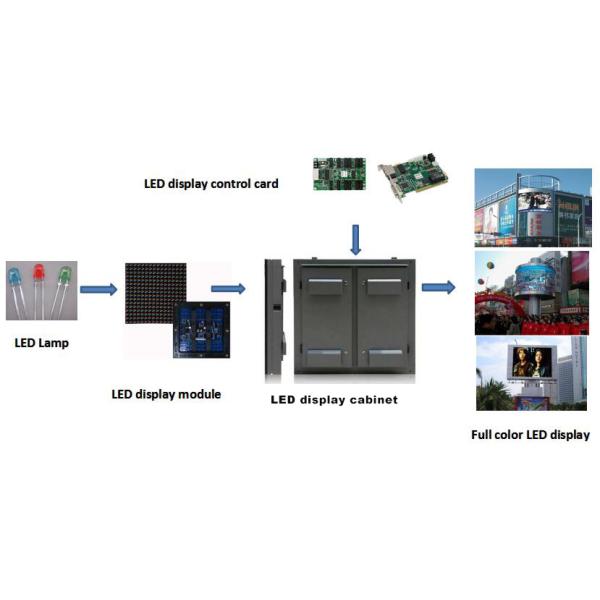

Control system DVI card + master control card + receiver card
MTBF >5000 hrs
Life span (50% brightness) 100, 000 hrs
Malfunction dot rate 1/10000
Ingress protection rate (Front/ rear) IP65 / IP54
Cabinet material Epoxy paint coated, aluminum / iron
Application: Rental / Permanent installation available
