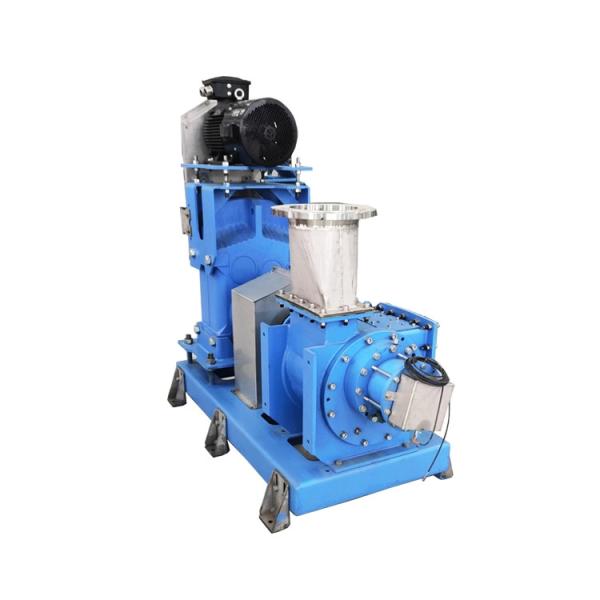

Model Is YPB15A-1 Rendering Material Pump Material Transfer Pump

1. GM PVC material transfer PAC pump diaphragm metering pump chemical dosing pump is compact structure, no leakage, safe operation and easy to maintain.

2. The flow can be adjusted by controling the speed regulating handwheel. And the multi-layer composite structure diaphragm has longer service life.

3. Medium can be corrosive and high viscosity, and should be without solid and with viscosity range of 0.3~800 mm2/s.

4. The chemical dosing pump is widely used in petroleum, chemical industry, spinning, food industry, papermaking, atomic energy, power plants, plastics, pharmacy, water works, environmental protection or other industries.

5. PTFE, PVC, SS304, SS316 materials pump bodies could be chosen to transfer liquids for all kinds of applications.

Working principle

The impeller is installed in the pump casing and fastened to the pump shaft, which is directly driven by the motor. There is a liquid suction pipe in the center of the pump housing. The liquid enters the pump through the bottom valve and the suction pipe. The liquid discharge port on the pump casing is connected with the discharge pipe. Before the pump is started, the pump casing is filled with the liquid being transported; after starting, the impeller is driven by the shaft to rotate at a high speed, and the liquid between the blades must also rotate with it. Under the action of centrifugal force, the liquid is thrown from the center of the impeller to the outer edge and gains energy, leaving the outer edge of the impeller at a high speed into the volute pump casing. In the volute, the liquid decelerates due to the gradual expansion of the flow channel, and converts part of the kinetic energy into static pressure energy, and finally flows into the discharge pipe at a higher pressure and is sent to the place where it is needed. When the liquid flows from the center of the impeller to the outer edge, a certain vacuum is formed in the center of the impeller. Because the pressure above the liquid level of the storage tank is greater than the pressure at the inlet of the pump, the liquid is continuously pressed into the impeller.

It can be seen that as long as the impeller rotates continuously, the liquid will be continuously sucked and discharged. The working principle of the linear pump is different from any other pump. It adopts the principle of magnetic levitation and the spiral ring hydrodynamic structure to achieve fluid propulsion, that is, cancel the shaft, cancel the shaft connection, and cancel the shaft sealing structure. After starting, the current is transformed into a magnetic field, and the magnetic force drives the spiral ring to rotate, that is, the spiral ring promotes the fluid to move forward.It is specially designed for large-particle, high-viscosity biological materials. It is mainly used for whole raw fish, cooked fish, fish gills, slaughterhouse internal organs,

The transport of materials such as poultry viscera and broken animal carcasses.

The raw material transfer pump is a positive volume pump. During the operation, the volume of the transfer chamber changes with the change of the blade, so that the material works between the feed and the discharge, and the discharged material is transported by pipeline to avoid contact with the outside.
