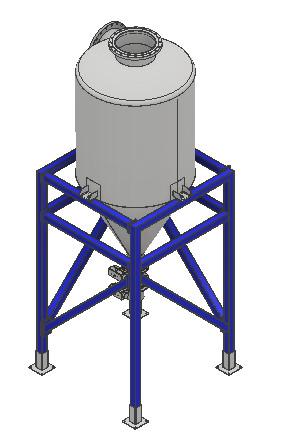

Stainless Steel, Cyclone Separator , Screen The Grease And Solids Discharged From The Screw Press

The hydrocyclone is a device for separating and removing substances such as heavier coarse-grained silt from sewage. Sometimes used for mud dewatering. It is divided into two types: pressure type and gravity type. It is usually made of circular column structure or metal tube. The water enters the tangential line from the upper part of the structure (or metal tube) by pressure or gravity. Under the action of centrifugal force, the coarse and heavy particulate matter is thrown to the wall and rotated downward to discharge together with the formed concentrated liquid. The smaller particulate matter is rotated to a certain extent and then discharged with the secondary upper vortex.

Application Field

Hydrocyclones are used for grading, desliming and concentration. For pulverized coal and dense metal minerals, it can sometimes be used for sorting. When referring to heavy media, the cyclone can be used for pre-selection or rough selection of ore.

The oil slag separator produced by Jiangsu Sunrise is used to screen the grease and solids discharged from the screw press. It has the characteristics of large processing capacity, good separation effect and convenient maintenance.

Equipment classification :

(1) Mechanical dust removal equipment includes gravity dust removal equipment, inertial dust removal equipment, centrifugal dust removal equipment, etc. 　　

(2) Washing type dust removal equipment includes water bath type dust removal equipment, foam type dust removal equipment, Venturi tube dust removal equipment, water film type dust removal equipment, etc. 　

(3) Filter type dust removal equipment includes bag dust removal equipment and particle layer dust removal equipment, etc. 　

(4) Electrostatic dust removal equipment. 　　

(5) Magnetic dust removal equipment. 　　

Mechanical force: 　　

Inertial dust removal equipment is a dust removal equipment that makes dusty gas collide with the baffle or changes the direction of the air flow sharply, and uses inertial force to separate and collect dust. Inertial dust removal equipment is also called inert dust removal equipment. 　　Inertial dust removal equipment is divided into two types: collision type and rotary type: the former is to install one or more baffles along the direction of the airflow, and the dust-containing gas collides on the baffle to separate dust particles from the gas. Obviously, the higher the gas velocity before hitting the baffle and the lower after the collision, the less dust it carries and the higher the dust removal efficiency. The latter is to change the direction of the dust-containing gas many times, and separate the dust during the turning process. The smaller the radius of curvature of the gas turning. The higher the turning speed, the higher the dust removal efficiency.

Matching: bracket, vacuum lock (two pneumatic butterfly valves)
