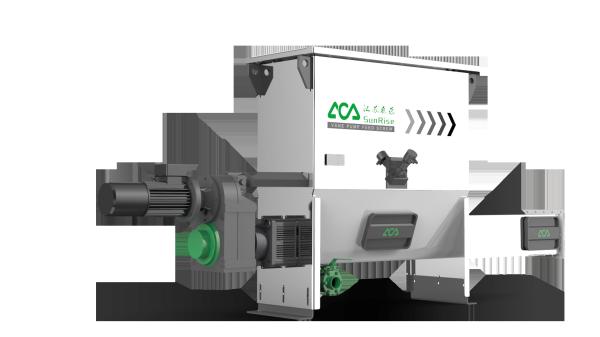

3250mm Length 3kw Horizontal Screw Conveyor
3250mm Length 3kw Horizontal Screw Conveyor
3250mm Length 3kw Horizontal Screw Conveyor
3250mm Length 3kw Horizontal Screw Conveyor
Specifications
Brand Name :
Jiangsu Sunrise
Model Number :
290-110-3250-01A
Place of Origin :
Jiangsu Sunrise
MOQ :
1 unit
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
1 unit 30day
Delivery Time :
30day
Packaging Details :
4946*1780*640
Certification :
CE/ISO9001
Motor power :
3kw
Motor brand :
Simens
shipping weight :
1350kg
volume :
1m³
diameter of shaft :
290mm
length of shaft :
3250mm
name :
vane pump feeding screw conveyor
shell material :
S30408
shaft material :
Q235B
shipping size :
4946*1780*640
Description

Shaft Length Is 3250mm By Sea Shipping Feed Screw Conveyor

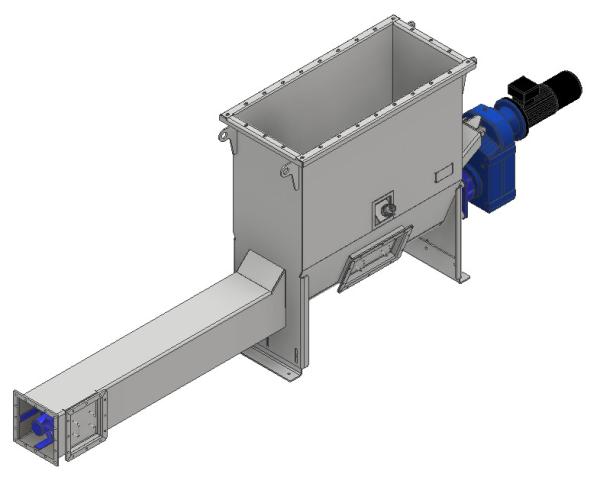

The blade pump feed screw conveyor produced by Jiangsu Sunrise is used for forced feeding of the vane pump. The screw conveyor is upgraded on the basis of the ordinary screw conveyor, and the screw conveyor has the function of material buffer.

The feed pump feed screw adopts the high-strength structure of the screw shaft and the shell to meet the conditions of material extrusion and conveying. The low-carbon steel wear plate is used between the spiral and the shell to avoid direct friction between the blade and the groove bottom, thereby increasing the service life of the equipment. At the same time, the position of the spiral buffer bin is set with a level sensor. When the material is piled up, the feed can be automatically stopped to prevent material blockage.

Length of screw shaft 3250mm
Material S30408(Shell)/Q235B(Screw shaft)
Intermediate bin volume 1m³
Motor power:7.5kw 3kw
Motor brand Simens
Reducer brand JIE
shaft brand SKF
shipping size 4946*1780*640
shipping weight 1350kg

3250mm Length 3kw Horizontal Screw Conveyor
