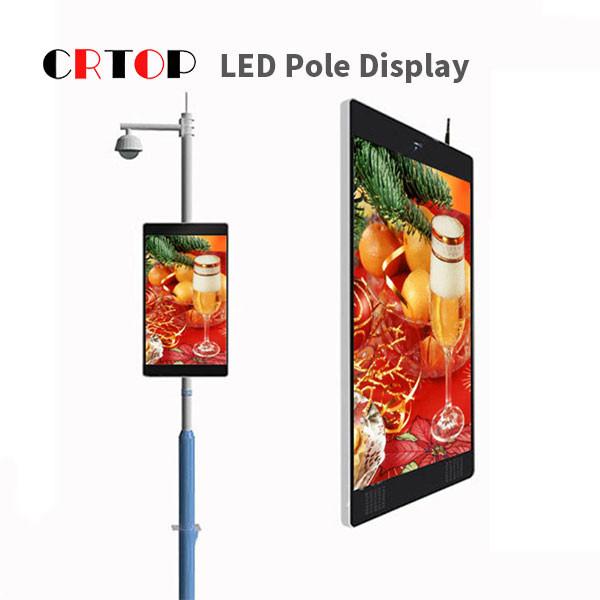

Intelligent P2.5mm Street Light Pole LED Display Outdoor Vedio
Intelligent P2.5mm Street Light Pole LED Display Outdoor Vedio
Intelligent P2.5mm Street Light Pole LED Display Outdoor Vedio
Intelligent P2.5mm Street Light Pole LED Display Outdoor Vedio
Intelligent P2.5mm Street Light Pole LED Display Outdoor Vedio
Intelligent P2.5mm Street Light Pole LED Display Outdoor Vedio
Specifications
Brand Name :
CRTOP
Model Number :
P2.5mm
Certification :
CE/CCC
Place of Origin :
CHINA
Other Name :
Advertising Light Pole LED Display
Pixel Pitch :
2.5mm
Apply for :
Outdoor Light Pole / Street light pole
Feature :
high brightness, high color rendering coefficient
Display function :
Vedio
module size :
320*160mm
view angle :
≧120²
Description

Intelligent P2.5mm Street Light Pole LED Display Outdoor Vedio

Intelligent Outdoor P2.5mm Street Advertising Led Display Vedio Led Display

Product Details :
As a smart city terminal , the LED smart light pole screen has the function of real-time information release , can immediately release emergency information , and automatically generate a play log ; the content split-screen display function , that is , one screen can play text , video and pictures at the same time ; fixed-point delivery Function , content is played at a fixed point , different content can be played on the same screen , and the same content can be played on different screens.

parameters:

project parameter Remark

BASIC PARAMETER

 pixel pitch 2.5mm _
pixel structure 1R1G1B
pixel density 160000 /m 2
Module resolution 128 (W)* 64 (H)
Module size 320mm * 160mm _

OPTIC PARAMETER

 Single point luminance, chromaticity correction have
white balance brightness ≥ 5 0 00cd/㎡
color temperature 3200K—9300K adjustable
Horizontal viewing angle ≥ 120°
vertical viewing angle ≥ 120°
Visible distance ≥8 meters
Brightness uniformity ≥97%
Contrast ≥ 5 000:1

PROCCESSING PARAMETER

 Signal processing bits 16 bits*3
grayscale 16Bit
control distance Gigabit Ethernet cable: 100 meters, Optical fiber: 10 kilometers
drive mode High gray-scale constant current source driver IC
frame rate ≥ 60HZ
refresh rate ≥ 1920 Hz
way to control Synchronize
Brightness adjustment range 0 to 100 stepless adjustment

OPERATION PARAMETER

 Continuous working time ≥72 hours
Typical life 50,000 hours
Protection class Front IP65, back IP43
range of working temperature -20℃ to 50℃
Operating humidity range 10 %- 80% RH non-condensing
Storage temperature range -20 ℃ to 60 ℃

ELECTRIC PARAMETER

 Operating Voltage DC 5V
Power Requirements AC: 220×(1±10%)V, 50×(1±5%)Hz
Maximum power consumption 8 5 0W/ ㎡
Average power consumption 350W/ ㎡


Intelligent P2.5mm Street Light Pole LED Display Outdoor VedioIntelligent P2.5mm Street Light Pole LED Display Outdoor VedioIntelligent P2.5mm Street Light Pole LED Display Outdoor VedioIntelligent P2.5mm Street Light Pole LED Display Outdoor VedioIntelligent P2.5mm Street Light Pole LED Display Outdoor VedioIntelligent P2.5mm Street Light Pole LED Display Outdoor Vedio
Intelligent P2.5mm Street Light Pole LED Display Outdoor VedioIntelligent P2.5mm Street Light Pole LED Display Outdoor VedioIntelligent P2.5mm Street Light Pole LED Display Outdoor Vedio

WARRANTY
Quality warranty : Two years quality warranty and lifetime technology support and maintenance from the third year . If you improperly operates or something is wrong with our products , we are responsible for the maintaining and repairs instruction or guide free of charge .
SERVICE
Before delivery, we will test the display, and check all the parts of the display to confirm it is fine for delivery, include waterproof testing and the vibration test .You can send your engineer to our factory for inspection before delivery.
