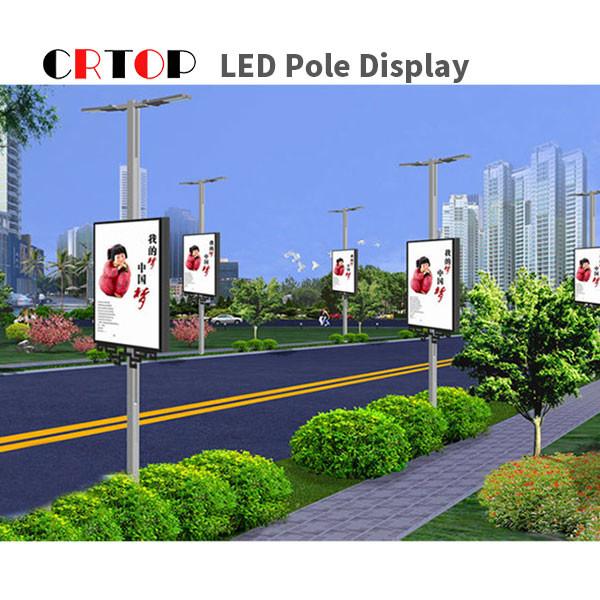

Full Color 1R1G1B Street Light Pole LED Display Outdoor Waterproof
Full Color 1R1G1B Street Light Pole LED Display Outdoor Waterproof
Full Color 1R1G1B Street Light Pole LED Display Outdoor Waterproof
Full Color 1R1G1B Street Light Pole LED Display Outdoor Waterproof
Full Color 1R1G1B Street Light Pole LED Display Outdoor Waterproof
Full Color 1R1G1B Street Light Pole LED Display Outdoor Waterproof
Specifications
Brand Name :
CRTOP
Model Number :
P2.5mm
Certification :
CE/CCC
Place of Origin :
China
Keyword :
Street Light Pole LED Display
Pixel Pitch :
2.5mm
Brightness :
5000cd
Color :
Full Color
Warranty :
3 Years
view angle :
120º
pixel density :
16000/m²
contrast ratio: :
5000:1
Description

Full Color 1R1G1B Street Light Pole LED Display Outdoor Waterproof

Waterproof Full Color Street Light Pole Led Display P2.5mm Outdoor Led Display

Product Details :

1 . It integrates the functions of Internet , Internet of Things, remote interaction , etc .

2 . It has the characteristics of high brightness , high color rendering coefficient , and built-in temperature sensing device that can automatically adjust the brightness .

3 . It can also accurately control the terminal LED advertising machine and adapt to Windows , Android , IOS system , with remote power supply , power off, timing switch , digital screen synchronization , ambient light sensing , real-time environmental monitoring (temperature , humidity , wind speed , wind direction , noise , PM2.5 , PM10) and other functions .

4 . The special waterproof design of Outdoor light pole LED screen protects it from water and dust .

parameters:

project parameter Remark

BASIC PARAMETER

 pixel pitch 2.5mm _
pixel structure 1R1G1B
pixel density 160000 /m 2
Module resolution 128 (W)* 64 (H)
Module size 320mm * 160mm _

OPTIC PARAMETER

 Single point luminance, chromaticity correction have
white balance brightness ≥ 5 0 00cd/㎡
color temperature 3200K—9300K adjustable
Horizontal viewing angle ≥ 120°
vertical viewing angle ≥ 120°
Visible distance ≥8 meters
Brightness uniformity ≥97%
Contrast ≥ 5 000:1

PROCCESSING PARAMETER

 Signal processing bits 16 bits*3
grayscale 16Bit
control distance Gigabit Ethernet cable: 100 meters, Optical fiber: 10 kilometers
drive mode High gray-scale constant current source driver IC
frame rate ≥ 60HZ
refresh rate ≥ 1920 Hz
way to control Synchronize
Brightness adjustment range 0 to 100 stepless adjustment

OPERATION PARAMETER

 Continuous working time ≥72 hours
Typical life 50,000 hours
Protection class Front IP65, back IP43
range of working temperature -20℃ to 50℃
Operating humidity range 10 %- 80% RH non-condensing
Storage temperature range -20 ℃ to 60 ℃

ELECTRIC PARAMETER

 Operating Voltage DC 5V
Power Requirements AC: 220×(1±10%)V, 50×(1±5%)Hz
Maximum power consumption 8 5 0W/ ㎡
Average power consumption 350W/ ㎡

Full Color 1R1G1B Street Light Pole LED Display Outdoor WaterproofFull Color 1R1G1B Street Light Pole LED Display Outdoor WaterproofFull Color 1R1G1B Street Light Pole LED Display Outdoor WaterproofFull Color 1R1G1B Street Light Pole LED Display Outdoor WaterproofFull Color 1R1G1B Street Light Pole LED Display Outdoor WaterproofFull Color 1R1G1B Street Light Pole LED Display Outdoor Waterproof

Full Color 1R1G1B Street Light Pole LED Display Outdoor WaterproofFull Color 1R1G1B Street Light Pole LED Display Outdoor WaterproofFull Color 1R1G1B Street Light Pole LED Display Outdoor Waterproof

After-sale service

Rest assured to buy it and feel free to contact us if you have any problems of this product .

Product tags

outdoor led display waterproof

,

outdoor waterproof led billboard

,

outdoor waterproof led screen
