LED soft Module 320*160mm：P1.86 P2 P2.5 P3.07
LED soft Module 320*160mm：P1.86 P2 P2.5 P3.07
LED soft Module 320*160mm：P1.86 P2 P2.5 P3.07
LED soft Module 320*160mm：P1.86 P2 P2.5 P3.07
LED soft Module 320*160mm：P1.86 P2 P2.5 P3.07
LED soft Module 320*160mm：P1.86 P2 P2.5 P3.07
LED soft Module 320*160mm：P1.86 P2 P2.5 P3.07
LED soft Module 320*160mm：P1.86 P2 P2.5 P3.07
Specifications
Brand Name :
CRTOP
Model Number :
P1.86
Certification :
CE/FCC
Place of Origin :
CHINA
pixel pitch :
P1.86
Module size :
32 0mm* 16 0mm
Module resolution :
172 (W)* 86 (H)
Single point luminance, chromaticity correction :
have
white balance brightness :
≥ 600 cd /㎡
color temperature :
2000K—12500K adjustable
Visible distance :
≥5 meters
Description

CE FCC Flexible LED Video Display Adjustable Color Temperature

High plasticity P1.86mm flexible led display screen

1. Using special materials and advanced technology, ultra-thin and ultra-light, the thickness of the three sizes of modules is 9-10mm,

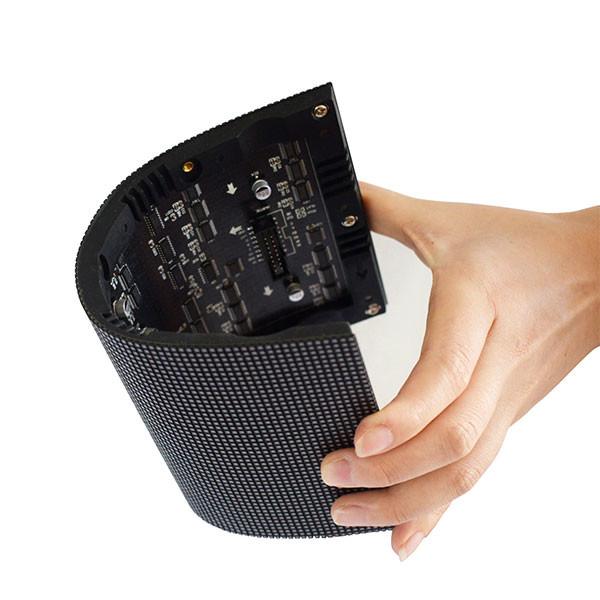

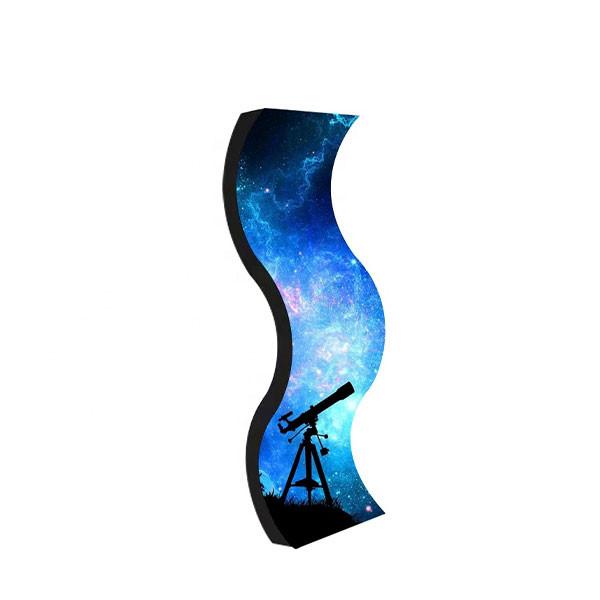

Strong flexibility, can be bent up to 120°, and can be shaped into any shape (cylinder, wave, ring, spherical, heterosexual, etc.)

4. Good ductility and can be arbitrarily shaped. Among them, the cylindrical screen has high brushing performance, which can be hoisted, installed, hung, etc., to meet the requirements of live sound to the greatest extent. Using advanced digital video processing, technology distributed scanning, 360-degree high-definition display, modular design, constant current static drive, high-brightness true color output, the picture is clear and free from jitter; it can also realize multi-picture soft module, through the connection of the main control The computer has three large ring-shaped LED display screens on the appearance of the cylinder, which can play pictures synchronously. No matter you stand at any angle of the display, you can enjoy three identical and lifelike pictures.

pixel structure: 1R1G1B

Module size: 320* 160mm

Horizontal viewing angle: ≥ 140°

vertical viewing angle :≥ 120°

Visible distance: ≥5 meters

Brightness uniformity: ≥97%

Contrast :≥5000:1

Module size: 320*160mm 256*128mm 240*120mm 200*150mm

Module size: 320*160mm:

PITCH: P1.86mm P2mm P2.5mm P3.07mm

Module size: 200*150 mm:

PITCH: P1.5625mm P1.875mm P1.579mm P2.5mm P3mm

Module size: 256*128mm:

PITCH: P2mm P4mm

project parameter Remark

BASIC PARAMETER

 pixel pitch 1.86mm
pixel structure 1R1G1B
pixel density 289050 /m 2
Module resolution 172 (W)* 86 (H)
Module size 320mm* 160mm

OPTIC PARAMETER

 Single point luminance, chromaticity correction have
white balance brightness ≥ 600cd /㎡
color temperature 2000K—12500K adjustable
Horizontal viewing angle ≥ 140°
vertical viewing angle ≥ 120°
Visible distance ≥5 meters
Brightness uniformity ≥97%
Contrast ≥5000:1

PROCCESSING PERFORMANCE

 Signal processing bits 16 bits*3
grayscale 65536
control distance Network cable: 100 meters, Optical fiber: 10 kilometers
drive mode High gray-scale constant current source driver IC
frame rate ≥ 60HZ
refresh rate ≥ 1920-3840 Hz
way to control Synchronize
Brightness adjustment range 0 to 100 stepless adjustment

OPERATION PERFORMANCE

 Continuous working time ≥72 hours
Typical life 50,000 hours
Protection class IP20
range of working temperature -20℃ to 50℃
Operating humidity range 10 %- 80% RH non-condensing
Storage temperature range -20 ℃ to 60 ℃

ELECTRIC PARAMETER

 Operating Voltage DC 4.2-5V
Power Requirements AC: 220×(1±10%)V, 50×(1±5%)Hz
Maximum power consumption 650W/ ㎡
Average power consumption 270W/ ㎡
