CE FCC ETL P1.579mm Flexible LED Display Screen 1R1G1B Pixel Structure
CE FCC ETL P1.579mm Flexible LED Display Screen 1R1G1B Pixel Structure
CE FCC ETL P1.579mm Flexible LED Display Screen 1R1G1B Pixel Structure
CE FCC ETL P1.579mm Flexible LED Display Screen 1R1G1B Pixel Structure
CE FCC ETL P1.579mm Flexible LED Display Screen 1R1G1B Pixel Structure
CE FCC ETL P1.579mm Flexible LED Display Screen 1R1G1B Pixel Structure
Specifications
Brand Name :
CRTOP
Model Number :
P1.579mm
Certification :
CE/FCC/ETL
Place of Origin :
CHINA
pixel pitch :
1.579mm
light :
guoxing
IC :
FM6363B
pixel structure :
1R1G1B
grayscale :
65536
Module size :
24 0mm* 12 0mm
frame rate :
≥ 60HZ
Module resolution :
152 (W)* 76 (H)
Description

CE FCC ETL P1.579mm Flexible LED Display Screen 1R1G1B Pixel Structure

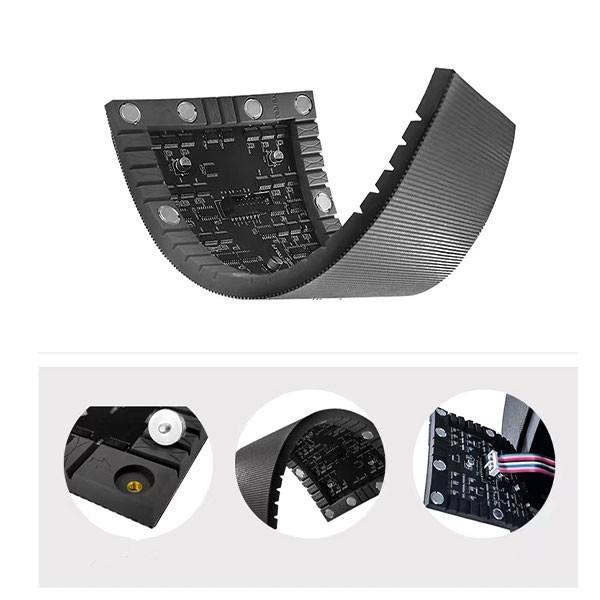

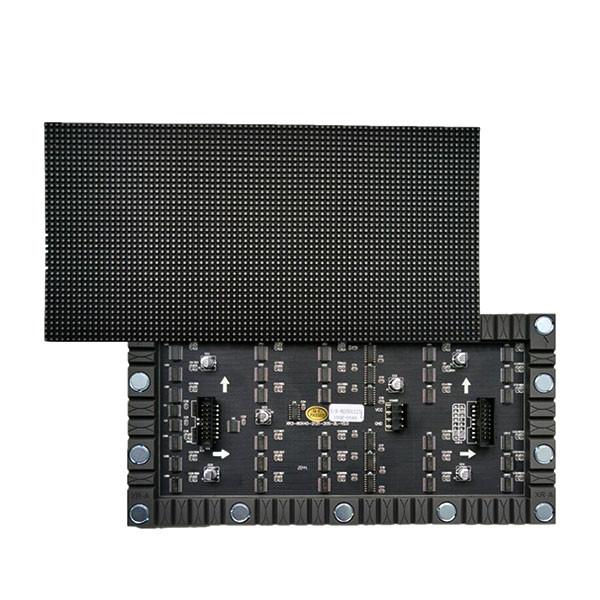

Technology advanced P1.579mm soft module LED display

1. Using a magnetic suction module, the left and right and up and down directions can be adjusted by the translation of the module; by rotating the magnetic column, the height can be adjusted, thereby adjusting the flatness of the entire screen body

2. Using special materials and advanced technology, ultra-thin and ultra-light, the thickness of the three sizes of modules is 9-10mm,

Strong flexibility, can be bent up to 120°, and can be shaped into any shape (cylinder, wave, ring, spherical, heterosexual, etc.)

3. Adopt strong magnetic adsorption installation, direct adsorption, more convenient installation and maintenance. The box body is omitted, the structural load is reduced, and the cost is effectively reduced. Support floor-standing, hanging, embedded, hoisting and other installation methods.

vertical viewing angle :≥ 120°

Brightness uniformity: ≥97%

Contrast :≥3000:1

ignal processing bits: 16 bits*3

grayscale :65536

frame rate :≥ 60HZ

refresh rate :≥ 1920 Hz

project parameter Remark

BASIC PARAMETER

 pixel pitch 1.579mm _
pixel structure 1R1G1B
pixel density 401084 /m 2
Module resolution 152 (W)* 76 (H)
Module size 24 0mm* 12 0mm

OPTIC PARAMETER

 Single point luminance, chromaticity correction have
white balance brightness ≥700 cd/㎡
color temperature 3200K—9300K adjustable
Horizontal viewing angle ≥ 140°
vertical viewing angle ≥ 120°
Visible distance ≥3 meters
Brightness uniformity ≥97%
Contrast ≥3000:1

PROCCESSING PERFORMANCE

 Signal processing bits 16 bits*3
grayscale 65536
control distance Network cable: 100 meters, Optical fiber: 10 kilometers
drive mode High gray-scale constant current source driver IC
frame rate ≥ 60HZ
refresh rate ≥ 1920 Hz
way to control Synchronize
Brightness adjustment range 0 to 100 stepless adjustment

OPERATION PERFORMANCE

 Continuous working time ≥72 hours
Typical life 50,000 hours
Protection class IP20
range of working temperature -20℃ to 50℃
Operating humidity range 10 %- 80% RH non-condensing
Storage temperature range -20 ℃ to 60 ℃

ELECTRIC PARAMETER

 Operating Voltage DC 4.2-5V
Power Requirements AC: 220×(1±10%)V, 50×(1±5%)Hz
Maximum power consumption 650W/ ㎡
Average power consumption 260W/ ㎡

CE FCC ETL P1.579mm Flexible LED Display Screen 1R1G1B Pixel StructureCE FCC ETL P1.579mm Flexible LED Display Screen 1R1G1B Pixel StructureCE FCC ETL P1.579mm Flexible LED Display Screen 1R1G1B Pixel Structure
