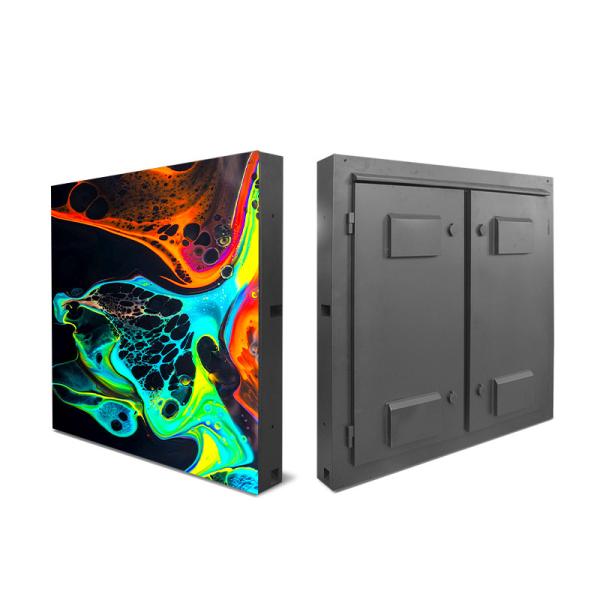

Front IP65 P8 Outdoor LED Advertising Screen Low Power Consumption
Front IP65 P8 Outdoor LED Advertising Screen Low Power Consumption
Front IP65 P8 Outdoor LED Advertising Screen Low Power Consumption
Front IP65 P8 Outdoor LED Advertising Screen Low Power Consumption
Front IP65 P8 Outdoor LED Advertising Screen Low Power Consumption
Front IP65 P8 Outdoor LED Advertising Screen Low Power Consumption
Specifications
Brand Name :
CRTOP
Model Number :
P8mm
Certification :
CE/FCC/ETL
Place of Origin :
CHINA
pixel pitch :
8mm
Module resolution :
40(W)*20(H)
Module size :
320mm*160mm
refresh rate :
high refresh
Protection class :
Front IP65, back IP43
white balance brightness :
≥ 55 00cd/㎡
grayscale :
16Bit
Contrast :
≥3000:1
color temperature :
3200K—9300K adjustable
Single point luminance, chromaticity correction :
have
light :
HongSheng Highlight
Description

Front IP65 P8 Outdoor LED Advertising Screen Low Power Consumption

P8 Low voltage and Low power consumption Outdoor Led advertising Screen

1. Support 4.2V~5V and 2.8V/3.8V power supply mode, the power supply selection is more flexible, and there is no risk of burning the module with mixed power supply

2. To enable real-time playback of major events

3. The system has the advantages of stable and reliable operation, strong anti-interference ability and long screen life.

Pitch:P2.5, P3, P3.07, P3.91, P4, P5, P5.33, P6.66, P8, P10

Module size:192x192mm,160x160mm,320x160mm,250x250mm,256x128mm

Cabinet size:640x640mm,768x768mm,960*960mm,500x500mm,1024x768mm 1024x768mm

project parameter Remark

BASIC

PARAMETER

 pixel pitch 8mm
pixel structure 1R1G1B
pixel density 15625/m 2
Module resolution 40(W)*20(H)
Module size 320mm*160mm
Box size 960mm*960mm

OPTIC

PARAMETER

 Single point luminance, chromaticity correction have
white balance brightness ≥ 55 00cd/㎡
color temperature 3200K—9300K adjustable
Horizontal viewing angle ≥ 120°
vertical viewing angle ≥ 120°
Visible distance ≥16 meters
Brightness uniformity ≥97%
Contrast ≥3000:1

Proccessing Performance

 Signal processing bits 16 bits*3
grayscale 16Bit
control distance Gigabit Ethernet cable: 100 meters, Optical fiber: 10 kilometers
drive mode High gray-scale constant current source driver IC
frame rate ≥ 60HZ
refresh rate ≥ 3840 Hz
way to control Synchronize
Brightness adjustment range 0 to 100 stepless adjustment

Operation performance

 Continuous working time ≥72 hours
Typical life 50,000 hours
Protection class Front IP65, back IP43
range of working temperature -20℃ to 50℃
Operating humidity range 10 %- 80% RH non-condensing
Storage temperature range -20 ℃ to 60 ℃

Electric

parameter

 Operating Voltage DC 5V
Power Requirements AC: 220×(1±10%)V, 50×(1±5%)Hz
Maximum power consumption 850W/ ㎡
Average power consumption 360W/ ㎡

Front IP65 P8 Outdoor LED Advertising Screen Low Power Consumption

Front IP65 P8 Outdoor LED Advertising Screen Low Power Consumption

Front IP65 P8 Outdoor LED Advertising Screen Low Power Consumption
