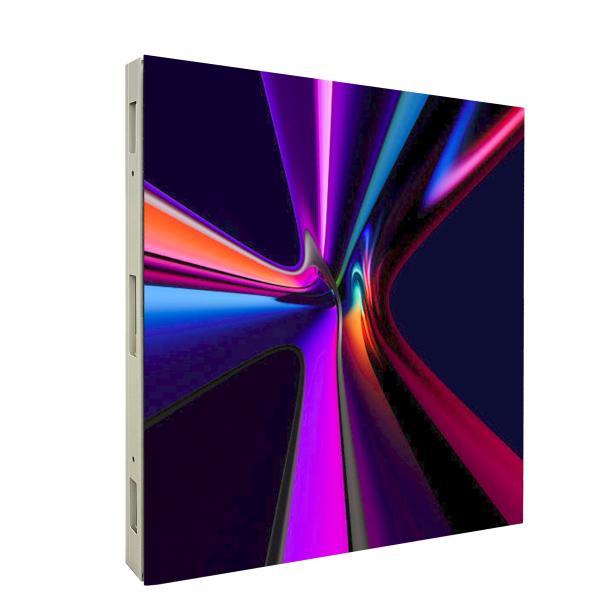

P8mm outdoor lED display screen For Shopping Center Advertising
P8mm outdoor lED display screen For Shopping Center Advertising
P8mm outdoor lED display screen For Shopping Center Advertising
P8mm outdoor lED display screen For Shopping Center Advertising
P8mm outdoor lED display screen For Shopping Center Advertising
P8mm outdoor lED display screen For Shopping Center Advertising
Specifications
Brand Name :
CRTOP
Model Number :
P8mm
Certification :
CE/FCC/ETL
Place of Origin :
CHINA
pixel pitch :
8mm
Module resolution :
40(W)*20(H)
Module size :
320mm*160mm
refresh rate :
normal refresh
Protection class :
Front IP65, back IP43
white balance brightness :
≥ 5500cd/㎡
grayscale :
16Bit
Contrast :
≥3000:1
color temperature :
3200K—9300K adjustable
Description

P8mm Outdoor LED Display Screen For Shopping Center Advertising

P8 watertight Outdoor Led advertising Screen for shopping center

1. Using high-grade chip packaged LED lights, low gray and high brightness, fully guarantees the service life and display quality of the display screen.
2.The display system meets the requirements of water-proof, moisture-proof, corrosion-proof, wind-proof, high temperature-proof, anti-static, fire-proof, flame-proof and earthquake-proof.
3.The image color is soft and lifelike, the gray scale is rich, the level sense and the three-dimensional sense are strong.





Pitch:P2.5, P3, P3.07, P3.91, P4, P5, P5.33, P6.66, P8, P10
Module size:192x192mm,160x160mm,320x160mm,250x250mm,256x128mm
Cabinet size:640x640mm,768x768mm,960*960mm,500x500mm,1024x768mm 1024x768mm

projectparameterRemark

BASIC

PARAMETER

pixel pitch8mm
pixel structure1R1G1B
pixel density15625/m 2
Module resolution40(W)*20(H)
Module size320mm*160mm
Box size960mm*960mm


OPTIC

PARAMETER

Single point luminance, chromaticity correctionhave
white balance brightness≥ 55 00cd/㎡
color temperature3200K—9300K adjustable
Horizontal viewing angle≥ 120°
vertical viewing angle≥ 120°
Visible distance≥16 meters
Brightness uniformity≥97%
Contrast≥3000:1

Proccessing Performance

Signal processing bits16 bits*3
grayscale16Bit
control distanceGigabit Ethernet cable: 100 meters, Optical fiber: 10 kilometers
drive modeHigh gray-scale constant current source driver IC
frame rate≥ 60HZ
refresh rate≥ 1920 Hz
way to controlSynchronize
Brightness adjustment range0 to 100 stepless adjustment

Operation performance

Continuous working time≥72 hours
Typical life50,000 hours
Protection classFront IP65, back IP43
range of working temperature-20℃ to 50℃
Operating humidity range10 %- 80% RH non-condensing
Storage temperature range-20 ℃ to 60 ℃

Electric

parameter

Operating VoltageDC 5V
Power RequirementsAC: 220×(1±10%)V, 50×(1±5%)Hz
Maximum power consumption850W/ ㎡
Average power consumption360W/ ㎡


P8mm outdoor lED display screen For Shopping Center Advertising
P8mm outdoor lED display screen For Shopping Center Advertising
P8mm outdoor lED display screen For Shopping Center Advertising
