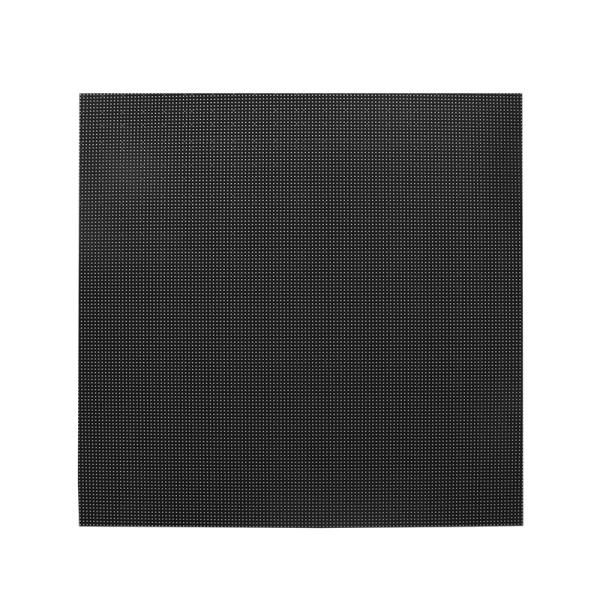

High Definition P8 outdoor video display screens LED Stage Wall
High Definition P8 outdoor video display screens LED Stage Wall
High Definition P8 outdoor video display screens LED Stage Wall
High Definition P8 outdoor video display screens LED Stage Wall
High Definition P8 outdoor video display screens LED Stage Wall
High Definition P8 outdoor video display screens LED Stage Wall
Specifications
Brand Name :
CRTOP
Model Number :
P8mm
Certification :
CE/FCC/ETL
Place of Origin :
CHINA
pixel pitch :
8mm
Module resolution :
40(W)*20(H)
Module size :
320mm*160mm
refresh rate :
high refresh
Protection class :
Front IP65, back IP43
white balance brightness :
≥ 5000cd/㎡
Contrast :
≥3000:1
color temperature :
3200K—9300K adjustable
Single point luminance, chromaticity correction :
have
grayscale :
16Bit
light :
Nation Star Gold thread
Description

High Definition P8 Outdoor Video Display Screens LED Stage Wall

P8 High definition and smooth Outdoor Led Wall Stage

1. Select high-quality LED chip, large angle, good flatness, anti-static strong brightness attenuation, high wavelength stability

2.The image color is soft and lifelike, the gray scale is rich, the level sense and the three-dimensional sense are strong

3.Outdoor full-color led large screen, a strong visual impact, super-clear graphics, a huge impact.

Pitch:P2.5, P3, P3.07, P3.91, P4, P5, P5.33, P6.66, P8, P10

Module size:192x192mm,160x160mm,320x160mm,250x250mm,256x128mm

Cabinet size:640x640mm,768x768mm,960*960mm,500x500mm,1024x768mm 1024x768mm

project parameter Remark

BASIC

PARAMETER

 pixel pitch 8mm
pixel structure 1R1G1B
pixel density 15625/m 2
Module resolution 40(W)*20(H)
Module size 320mm*160mm
Box size

960mm*960mm

OPTIC

PARAMETER

 Single point luminance, chromaticity correction have
white balance brightness ≥ 55 00cd/㎡
color temperature 3200K—9300K adjustable
Horizontal viewing angle ≥ 120°
vertical viewing angle ≥ 120°
Visible distance ≥16 meters
Brightness uniformity ≥97%
Contrast ≥3000:1

Proccessing Performance

 Signal processing bits 16 bits*3
grayscale 16Bit
control distance Gigabit Ethernet cable: 100 meters, Optical fiber: 10 kilometers
drive mode High gray-scale constant current source driver IC
frame rate ≥ 60HZ
refresh rate ≥ 3840 Hz
way to control Synchronize
Brightness adjustment range 0 to 100 stepless adjustment

Operation performance

 Continuous working time ≥72 hours
Typical life 50,000 hours
Protection class Front IP65, back IP43
range of working temperature -20℃ to 50℃
Operating humidity range 10 %- 80% RH non-condensing
Storage temperature range -20 ℃ to 60 ℃

Electric

parameter

 Operating Voltage DC 5V
Power Requirements AC: 220×(1±10%)V, 50×(1±5%)Hz
Maximum power consumption 850W/ ㎡
Average power consumption 360W/ ㎡

High Definition P8 outdoor video display screens LED Stage Wall

High Definition P8 outdoor video display screens LED Stage Wall
