Specifications
Brand Name :
No brand; customizable; OEM
Model Number :
P5 960*960
Certification :
CE, RoHS, 3C
Place of Origin :
China
MOQ :
10 square meter
Price :
USD 345~418 / PC
Payment Terms :
T/T
Supply Ability :
1200 square meter per month
Delivery Time :
20~25 days
Packaging Details :
6-in-1 flycase packing
product name :
P5 960*960 LED display aluminum outdoor stage LED panel OEM high refresh frequency 3840hz
Pixel Pitch :
5mm
Dribing IC :
ICN2037
LED Type(outdoor) :
SMD2525
Module Size :
320*160 mm
Module Resolution :
64*32 pixels
Cabinet Size :
960*960 mm
Cabinet Resolution :
192*192 pixels
Module Qty :
3*6 pcs
Cabinet Weight :
28kg
Material :
Die-casting aluminum shell
Brightness :
4000cd/m2
Scanning Mode for outdoor :
1/8 scan
Description

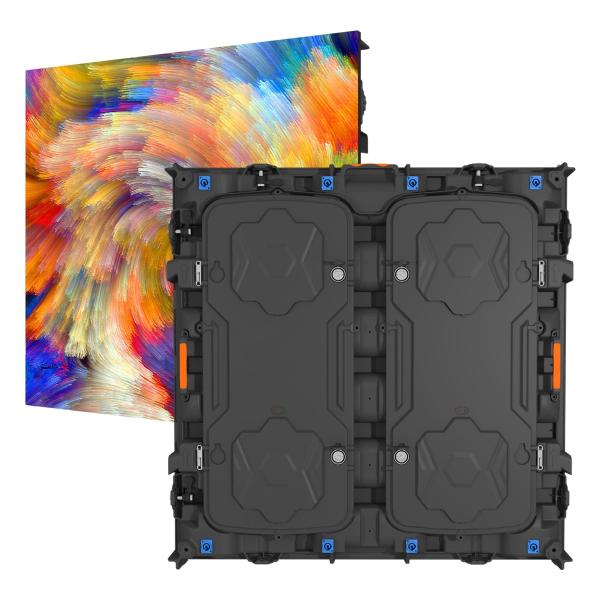

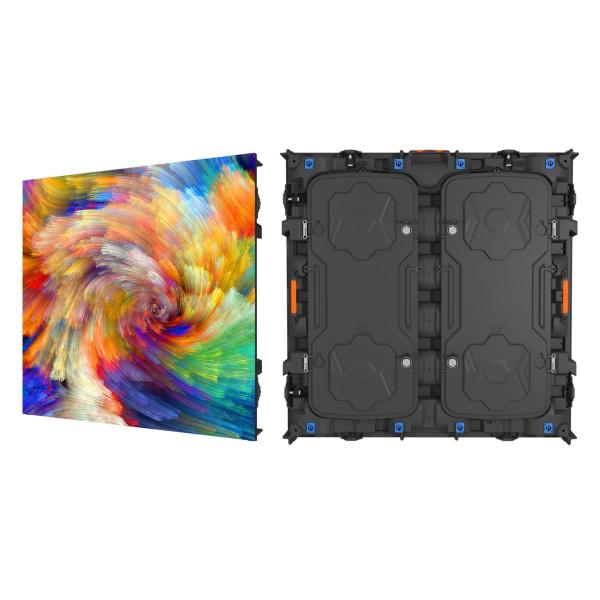

P5 960*960 LED display aluminum outdoor stage LED panel OEM high refresh frequency 3840hz

Company Profile

We are HK Brilliance Tech Co., LTD. Our headquater is located on HK, China; and our factory is located on Shenzhen and Guangzhou, China. We have over 10 years manufacturing experience. We provide wide option of model of this type of product and we support customization for products and brand and logo.

Our products enjoy quick sale all over the world. We have more than 3 steps and procedure for quality check and quality assurance system. Each of products will ensure over 48h final performacne testing. With good quality, client always give good repute for our products.

Detailed Product Description

Module Specifications
1 Pixel Pitch 5mm
2 Led Type SMD2525
3 Module Size 320x160mm
4 Module Resolution 64x32 pixels
5 Driving IC 2037
6 LED lamp Hongsheng
Cabinet Specification

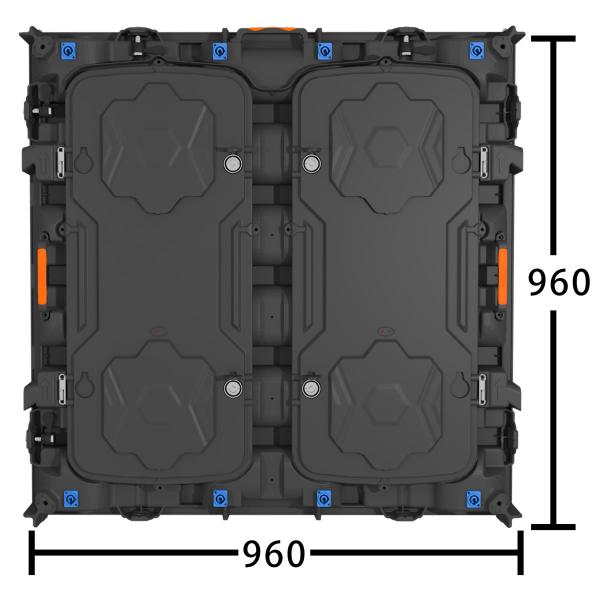

1 Cabinet Size 960x960mm
2 Cabinet Resolution 192x192pixels
3 Module Qty. 3x6pcs
4 Cabinet Materials Die-casting aluminum
5 Cabinet Weight 28Kg
Screen Parameters
1 Screen Size
2 Screen Resolution
3 Cabinet Qty.
4 Brightness 4000cd/m2
5 Scanning Mode 1/8scan
6 Viewing Angle H:140°;V:140°
7 Viewing Distance >5m
8 Gray Level 16 Bit
9 Refresh Frequency 3840 Hz
10 Power Input AC 220-240V
11 Power Comsuption Max: 800W/ Average: 350W/
12 MTBF--hours >10,000 hours
13 Life--hours ≥100,000 hours
14 IP Grade IP65
15 Operating Temperature -30~ 60
16 Storage Humidity 10~80RH
17 Control Syetem Novastar
18 Operating System Windows7/Windows10
19 Power Supply G-ENERGY
20 Maintance Access Back service

3840hz Outdoor LED Panel Display Aluminum P5 960*960 Windows10

3840hz Outdoor LED Panel Display Aluminum P5 960*960 Windows10

3840hz Outdoor LED Panel Display Aluminum P5 960*960 Windows10

Application

Widely used in Outdoor billboard, Electronic poster, LED Creative Display etc.

3840hz Outdoor LED Panel Display Aluminum P5 960*960 Windows10

Australian outdoor P6 full color display

3840hz Outdoor LED Panel Display Aluminum P5 960*960 Windows10

Xichang Luoji Mountain outdoor P10 display

3840hz Outdoor LED Panel Display Aluminum P5 960*960 Windows10

India New Delhi outdoor P5 full color display

3840hz Outdoor LED Panel Display Aluminum P5 960*960 Windows10

OUTLETS Mall outdoor P8 display

3840hz Outdoor LED Panel Display Aluminum P5 960*960 Windows10

Kaili city of Guizhou province outdoor P8 display

Certificate

3840hz Outdoor LED Panel Display Aluminum P5 960*960 Windows10 3840hz Outdoor LED Panel Display Aluminum P5 960*960 Windows10 3840hz Outdoor LED Panel Display Aluminum P5 960*960 Windows10 3840hz Outdoor LED Panel Display Aluminum P5 960*960 Windows10

3840hz Outdoor LED Panel Display Aluminum P5 960*960 Windows10 3840hz Outdoor LED Panel Display Aluminum P5 960*960 Windows10 3840hz Outdoor LED Panel Display Aluminum P5 960*960 Windows10 3840hz Outdoor LED Panel Display Aluminum P5 960*960 Windows10 ​​

FAQ (frequently asked questions):

Q1: Do you have certificates?

A1: Yes, we have certification like CE, RoHS, CCC, FCC, ISO9001, etc; and for specific certification for some countries, we can help apply for these certificates. Furthermore, we can also provide certificate of origin.

Q2: What about the lead time?

A2: Each type of product has its own lead time, thus, for the lead time, please advise us what products you are interested in and what is your quantity towards the product. As for this products, for small trial order or sample order, usually it takes about 20~25 days; and for bulk order, it depends on quantity, usually for 300 square meter, it takes about 20~25 days.

Q3: What is your MOQ?

A3: MOQ depends on product. Please contact us to check the MOQ based on the products that your are interested in.

Q4: How do you ship the goods and how long does it take to arrive?

A4: We accept EXW, FOB, CIF, DAP, etc terms. If you have your own shipping agent, you can deal with us in EXW or FOB; If you do not have forwarder, we suggest you deal with us in CIF or DAP terms. For shipping time, it depends on the destination country; and we can talk with and confirm it before we sign contract with each other.

Q5: Is it OK to print our own logo to the products?

A5: Yes. We provide OEM service. You can print your own brand and logo on our products. Just advise us and give us logo icon before we confirm and start producing. By the way, we also support no brand production. If you want to use our own brand “HKB”, it is also OK.

Q6: How to deal with the faulty?

A6: First, our products are produced in very strict quality control system under our expert QC and QA team. Second, we will prepare some spare parts in proportion to your order quantity and provide tel-technology support.

Q7: How to proceed an order for our products?

A7: First, advise us what products you need and the quantity and the parameter of them. Please be sure to let us know all details of your requirement. Second, we quote according to your requirement and will give us suggestion if you need. Third, you place the order and transfer deposit to confirm the order. Fourth, we start our production and QA test. Fifth, you pay for the balance to close the order, and we help deliver or ship at your requirement.

Payment & Packing Transport

1.Transfer deposit when confirm order, and pay for balance when goods is ready.

2.Accept EXW, FOB, CIF, etc based on your request.
