Specifications
Brand Name :
Evcome
Model Number :
SHYR-C04
Certification :
CE/TUV/ROHS/FCC
Place of Origin :
CHINA
MOQ :
20
Delivery Time :
8-10days
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
500000 PIECE PER MONTH
Price :
negotiation
Type :
COMERCIAL EV Charger station
Product Name :
WALL MOUNTED EVCHARGER
Rated Voltage :
220-250V
Rated Current :
16A/32A
Cable length :
5Meters(customized)
Charging Port :
Type2/type1
Protection Grade :
IP66
Charging standards :
IEC62196-2
CERTIFICATION :
CE/rohs/FCC
Description

Comercial evcharger 11kw AC EV Charger Level 3 Electric Car Charging Solar Ev Charging Station electric vehicle car

EV Charger Specification
Electrical

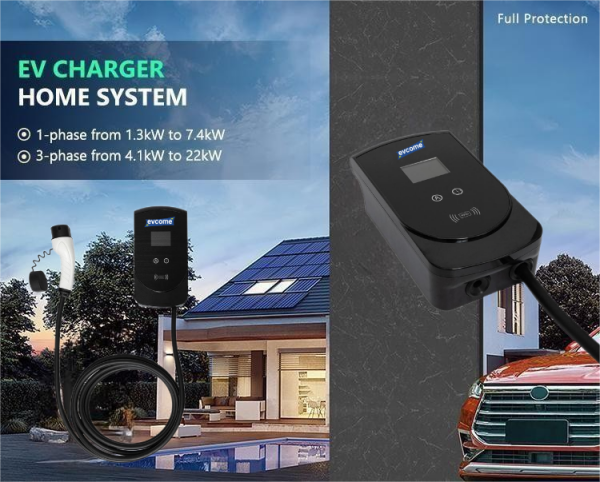

Charging capacity 1.3kW – 7.4kW / 4.1kW – 22kW
Charge mode Mode 3 (IEC 61851-1)
Output power Selectable 1-phase or 3-phase, 230-400V 16 A to 32 A, 50-60 Hz
Connector options Fixed cable type 2 plug or type 2 Socket
Fixed cable length 6m (18 ft)
Cable entry Rear or bottom

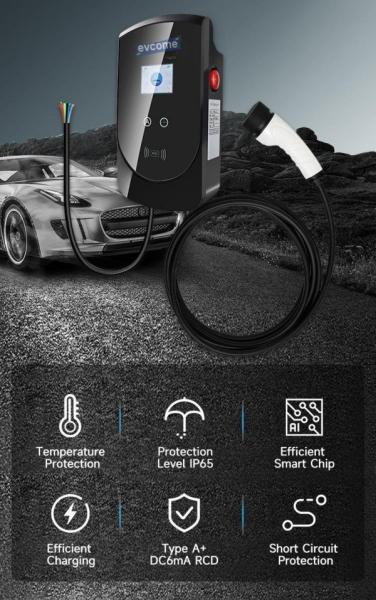

Protection and Certification
Ground fault detection Patent Design 0.3mA AC
Build-in RCD TYPE A + DC6mA leakage sensor built-in
With cable IP65
Socket IP65
Housing fire ratings V0
Operating temperature -25℃ to +55℃
Compliance IEC61851-1,IEC61851-21-2,IEC61000-4
CE EMC EU/2014.CE Low Voltage EU/2014/35
Certificate CE, UKCA, SAA
Commectivity
Authorization Auto-start standard / RFID card option
Status indication LED ring
WLAN communication Wi-Fi / Smart App
Mechanical
Housing Polycarbonate
Dimension (W*H*D) 169*380*151mm
Mounting Wall or Pole

Charging station power station 7kw-22kw

Business Car Stations Commercial Ev Chargers For Sale 11kw AC Level 3 Solar

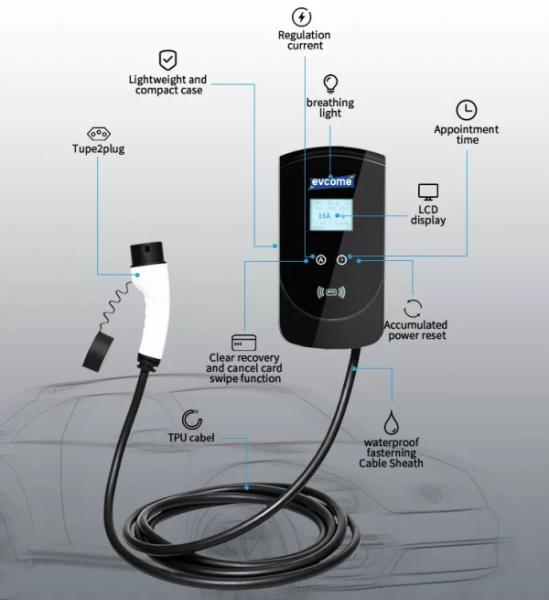

Product introduction

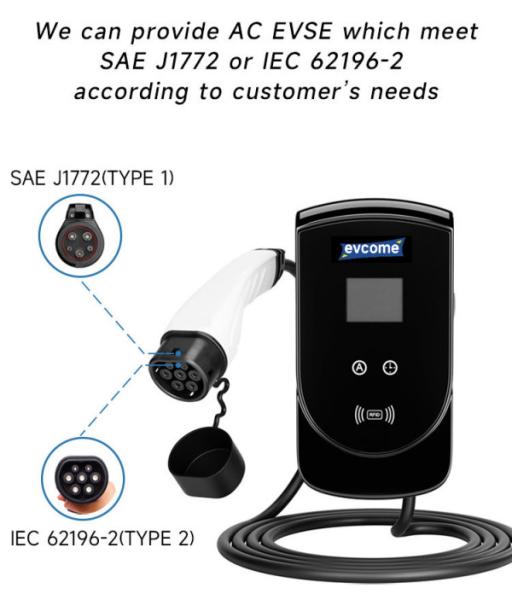

YTPE1/TYPE2

Business Car Stations Commercial Ev Chargers For Sale 11kw AC Level 3 Solar

Business Car Stations Commercial Ev Chargers For Sale 11kw AC Level 3 Solar

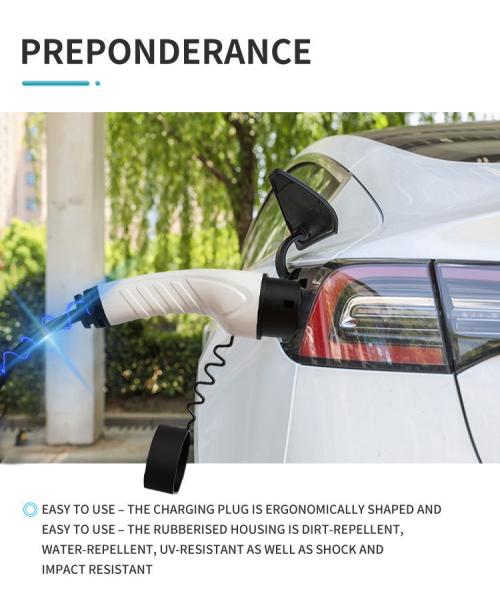

Our products have passed the relevant certification of European standards to ensure that the products can be sold and used with confidence. TPU material can well protect the internal harness from normal operation under repeated bending conditions, and ensure longer service life of the equipment. Even when used at -30 ℃, the elasticity and flexibility of the cable can still be maintained. Therefore, it will not be stiff and difficult to use in winter. It can be used indoors and outdoors. The cables and plugs have temperature protection, which makes them durable and reliable under all conditions, including rainy and snowy days
