Specifications
Brand Name :
Evcome
Model Number :
SHYR-D06
Certification :
CE/TUV/ROHS/FCC
Place of Origin :
China
MOQ :
20
Delivery Time :
8-10days
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
500000 PIECE PER MONTH
Price :
negotiation
Type :
EV Charger
Rated current :
120kw
Function :
screen display, Power Off Memory, Signal Stabilizatio
Cable Length :
5M
Charging Port :
Type1/2
Logo :
Customized
User Interface :
7"UV SCREEN
Input voltage :
380V
Color/logo :
white（custom）
Efficiency :
≥95%
Description

Mode3 EVcharger 120kw dc smart electric vehicle (ev) fast charging station with type 2 charging plug

Product number
SHYR-45KW
SHYR-80KW
SHYR-120KW
Detailed specification
rated power
45KW
80KW
120KW
Charging equipment
User Interface
7 inch LCD color display touch screen
installation
Floor-standing/Down in down out
Routing mode device size
635*423*1600(mm)
Input voltage
AC380V±20%
Input frequency
45~65Hz
The output voltage
200-750VDC
Single gun output current range
200V-500V
200V-500V
200V-500V
The output voltage
0-90A
0-120A
0-160A
Single gun output current range
200V-750V
200V-750V
200V-750V
The output voltage
0-60A
0-80A
0-107A
Charging equipment
Single gun output current range
0-112A
0-150A
/
Cable length
5m
Electrical index
Measurement accuracy
Level 0.5
Current limit protection value
≥110%
Voltage regulation accuracy
≤±0.5%
Steady flow accuracy
≤±1%
Ripple coefficient
≤±0.5%
effectiveness
≥94.5%
Power factor
≥0.99 (50% load or more)
Harmonic content THD
≤5% (50% load or more)
feature design
HMI
7 inch LCD color display touch screen, LED indicator
Charging mode
Auto full / fixed power / fixed amount / fixed time
payment method
Credit card payment / APP payment /
scan code payment
Communication Interface
Ethernet 2/3/4G (optional)
Safety design
Executive standard
GBT 20234, GB/T 18487, GB/T 27930, NBT 33008
Security function
over temperature protection,
overvoltage protection,
Charge gun temperature detection,
undervoltage protection,
overload protection,
short circuit protection,
grounding protection,
low temperature protection,
insulation monitoring protection,
polarity reverse connection protection,
lightning protection,
emergency stop protection,
leakage protection
Environmental indicators
Operating temperature

-25°C~50°C
Working humidity
5%~95% non-condensing
Working elevation
<3000m
Protection level
IP54
cooling method
Forced air cooling
Noise control
≤60dB
MTBF
100,000

120kw Ev Charger Mode 3 Ev Charging Point Dc Smart Electric Vehicle

IP54 Protection class

Easily face various complex weather conditions such as rainy day

120kw Ev Charger Mode 3 Ev Charging Point Dc Smart Electric Vehicle

Preferred international cable

The cable conforms to international inspection standards, with good quality, not easy to heat ,Car charging is safe and stable

TPU material can well protect the internal harness from normal operation under repeated bending conditions, and ensure longer service life of the equipment.

120kw Ev Charger Mode 3 Ev Charging Point Dc Smart Electric Vehicle

National standard plug

Applicable to most new national standard electric vehicles, the latch is made of copper and silver-plated, and the gun head is made of high flame-retardant nylon material, which is safe and durable, and is not easy to ignite.

120kw Ev Charger Mode 3 Ev Charging Point Dc Smart Electric Vehicle

120kw Ev Charger Mode 3 Ev Charging Point Dc Smart Electric Vehicle

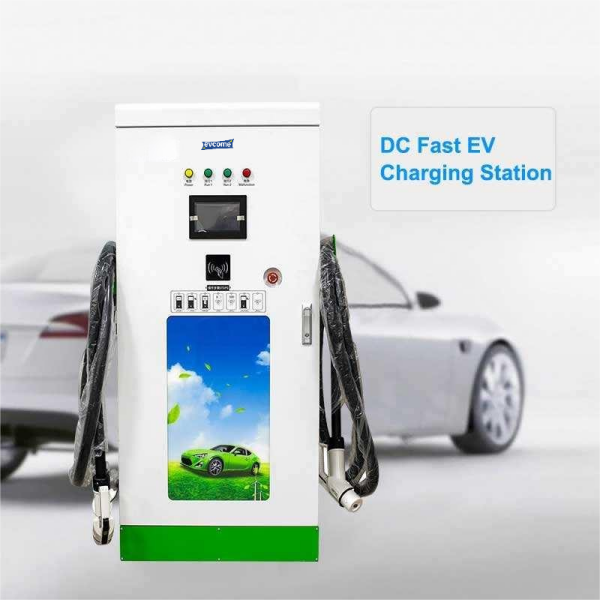

This series of DC fast charging station is a dual DC outlets(CHAdeMO and CCS) 120kw fast charger with an optional Yype-2 AC output up to 22kw that can be configured to meet different charging needs of both European and north American customers. It supports simultaneous charging and balancer reel for advanced cable management.With user-friendly interface display and control guidance function.customers can complete the charging process easily.It is IP54 Rated which makes it suitable for outdoor&indoor public charging and commercial places charging application.
