Specifications
Model Number :
SHYR-P01
Certification :
CE/TUV/ROHS/FCC
Place of Origin :
CHINA
Brand Name :
EVCOME
MOQ :
20
Delivery Time :
8-10days
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
500000 PIECE PER MONTH
Price :
negotiation
Marerial :
abs & pc
Charging interface type :
IEC62196-2(SAEJ1772)
Cables Length :
5 M/Custom
Input Voltage :
230V 50Z(1-P)
Output Voltage :
230V AC 16-32A
Rated Power :
3.5KW/7KW
Protection level :
IP67& Control Box(IP54)
Operating Temperature :
-30℃to +120℃
Relative humidity :
5%-95%
Cables size :
3*6MM² * 0.75MM²
Product Name :
Portable evcharger
Description

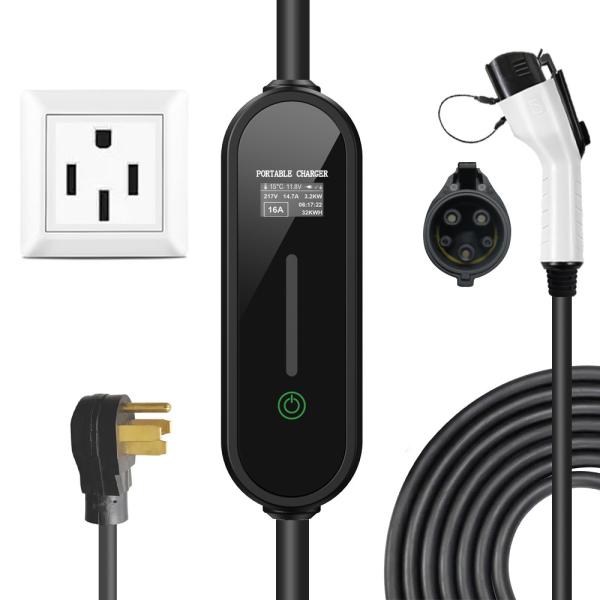

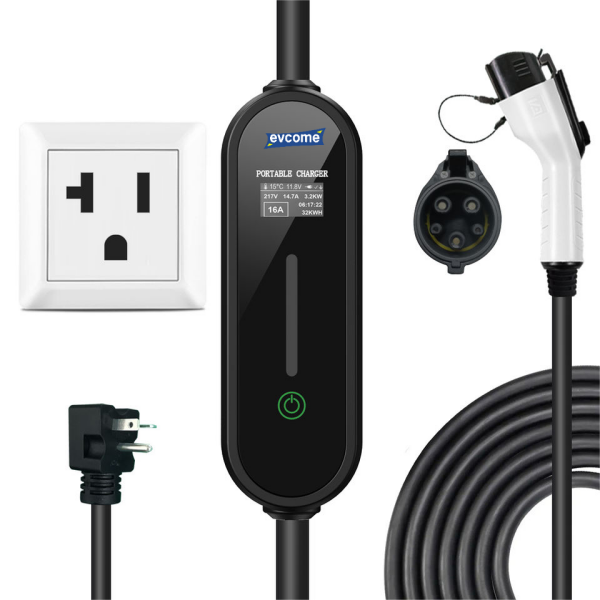

Home Portable Electric Car Charging 3.5/7kw 16A/32A Nema 14-50 Charging Box

Portable EV Charger, with power ratings of 3.5KW, 7 kW, is suitable for different types of vehicles

1.The Voltage and Current are stable during charging, which can protect the battery and delay using time.

2.We can use normally in ultra-high temperature environment up to 100℃

3.It can also be used normally in the -30℃

4.The buttons are made of aluminum alloy+ insulating plastic, which will not generate arcs,leakage.

5.Using H-62 brass alloy striker, which have plated with 3mm silver layer,and hard to age and blacken,will greatly improve the electrical conductivity.

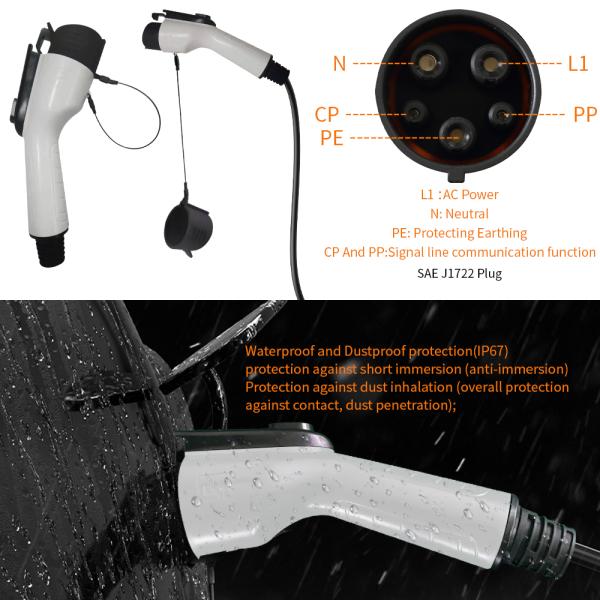

6.IP67 level,20,000 plug-in tests, long service life.

7.The cable is made of oxygen-free pure copper wire+TPU material, low temperature and halogen-free and the cable does not heat and deform for a long time charging

(32A cable specification:3*6m㎡+1*0.75m㎡)

8.Each product has undergone rigorous testing and we need to responsible for the quality.

Current adjustable Level 2 mode 2 Electric Vehicle Charging Car Portable EV Charger
Electrical Specification
Input Voltage
80-265VAC
Output voltage
100V/250V AC
Max. output power
3.5kW
Max. output current
16A 1 Phase
Input frequency
47~63Hz
Charging interface type
GBT
Functions and Accessories
LCD
Yes
RCD
Type A / Type A +6mA DC
LED Indicator light
Yes
Intelligent power adjustment
8A 10A 13A 16A
Working Environment
Environment temperature
-40℃ ~+75℃
Relative humidity
0-95% non-condensing
Maximum altitude
<2000m
Standby power consumption
<8W
