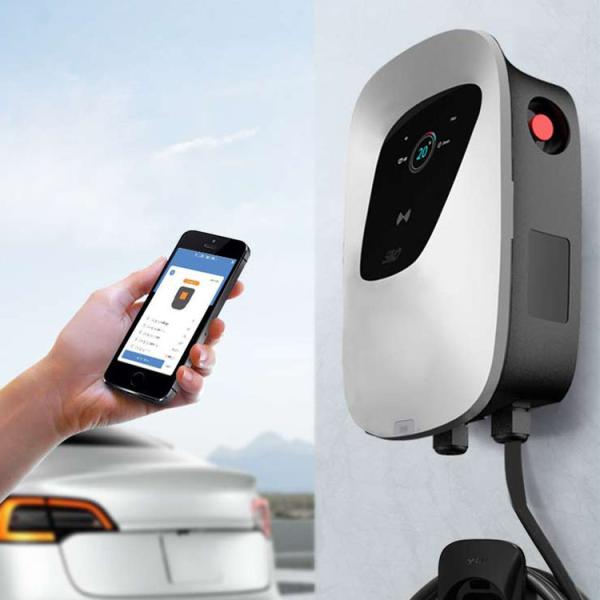

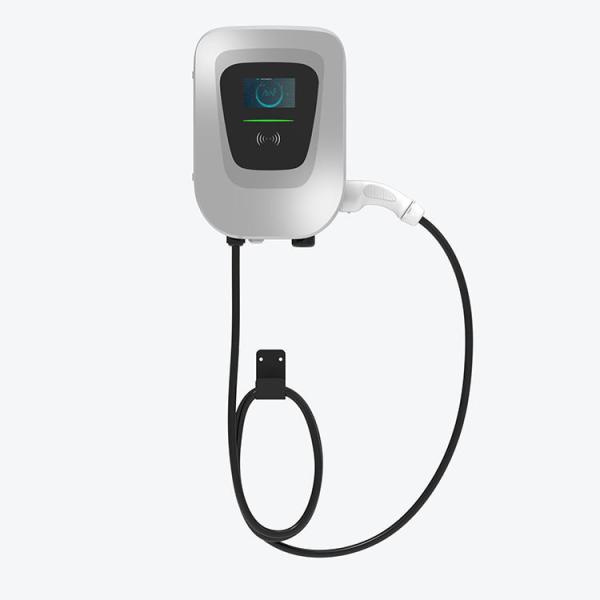

7 Kw Type 1 Ev Charger Wallbox Single Phase Smart Home Electric Car Charger Station
7 Kw Type 1 Ev Charger Wallbox Single Phase Smart Home Electric Car Charger Station
7 Kw Type 1 Ev Charger Wallbox Single Phase Smart Home Electric Car Charger Station
7 Kw Type 1 Ev Charger Wallbox Single Phase Smart Home Electric Car Charger Station
7 Kw Type 1 Ev Charger Wallbox Single Phase Smart Home Electric Car Charger Station
7 Kw Type 1 Ev Charger Wallbox Single Phase Smart Home Electric Car Charger Station
7 Kw Type 1 Ev Charger Wallbox Single Phase Smart Home Electric Car Charger Station
7 Kw Type 1 Ev Charger Wallbox Single Phase Smart Home Electric Car Charger Station
7 Kw Type 1 Ev Charger Wallbox Single Phase Smart Home Electric Car Charger Station
7 Kw Type 1 Ev Charger Wallbox Single Phase Smart Home Electric Car Charger Station
Specifications
Brand Name :
Evcome
Model Number :
SHYR-T04
Certification :
CE/TUV/ROHS/FCC
Place of Origin :
CHINA
MOQ :
20
Delivery Time :
8-10days
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
500000 PIECE PER MONTH
Price :
negotiation
Installation :
floor-standing
Modell Number :
SHYR-T04
Size :
Floor-standing: 270*194*1500mm(WD*H)
Protection Grade :
IP55
Input/Output :
220V±20%/ 50Hz±5Hz
Output Power :
22KW/11kw/7kw
Cable length :
5 Meters
Charging Method :
Swipe card
Communication method :
Blue tooth, WIFi, Ethernet/4G （Optional）
HMI :
4.3 inch LCD
Protective function :
Over voltage protection, over current protection, short circuit protection, lightning protection, emergency stop protection, PE connection detection protection, LIN reverse connection detection protection, over temperature protection, anti-dumping protecti
Operating temperature :
-30℃-61℃
Storage temperature :
-40℃-86℃
Operating Humidity :
≤94%, non-condensing
Logo :
Customized
Type plug :
Type1/2
Description

Evse 32A Single Phase Type 1 Ac Ev Charger Wallbox 7Kw Home Electric Car Charger Station Ev Charging Portable

SHYR-T04 Electric vehicle charging station is a Level 2 charging station that charges your vehicles much faster. With a charging station installed at home or your shop, you will not have to drive down to a public charging station to get your car charged. This can mean a long time wait. If you want to lower the cost of driving, get the EVC3AA0 for your home. It is portable and can be carried along to charge the car at another location.

FEATURES:

  • The SHYR-T04 Electric Vehicle Charging Station generates from 7.2kW to 7.7kW of power output, 8 times faster than Level 1. It is a 30 amp Level 2 charger that gets the vehicle charged rapidly.
  • This single phase standard home charging station is non-networked and requires no special activation.
  • This NEMA 4 rated charging station and can be installed indoors or outdoors.
  • It is engineered for use in extreme climates where temperatures can range from -22F to 122F.
  • The EVC3AA0 features a Universal J1772 Cable Connection. The J1772 plug was specifically designed for electric car charging.
  • This Universal SAE J1772 charger can service all models of electric vehicles and plug-in hybrid electric vehicles. You will need an adaptor to charge a TESLA vehicle.
  • This model includes optional Hardwire and Electrical. You can mount it to the wall or a pedestal. Modern compact design ensures safe management of the charging cable.
  • You can plug this unit into a 240V outlet in your home using its NEMA 6-50 Plug.
  • This model is equipped with an 18 or 25 ft charging cable for maximum user flexibility. The device is compatible with all charging station cables. The spring-loaded tether suspends the cable for easy drawback.
  • You may mount the unit on a wall near the garage or outside near the driveway to best meet your specific needs.
  • This Electric Vehicle Charging Station can be hardwired by a professional electrician.
  • This EVC3AA0 Electric Vehicle Charging Station is UL/cUL listed for safety certification. The EvoReel with cable is ETL certified.

Power Suppply 3P+N+PE
Rated Voltage 400VAC±10%(50Hz±5Hz)
Output voltage 400VAC±20%
Output current 16A/32A
Output power 11KW/22KW
Electric energy measurement Accuracy Class 1 energy meter
Connector Type Type 1, Type 2, GB/T
Cable length 5m (Custom)
Protection functions Over voltage/under voltage protection, over current/short circuit protection, over/under temperature protection, lightning
protection, emergency stop protection, RCD Type A and DC 6mA RCD leakage protection.
Communication Ethernet/WIFI/4G LTE
Protocol OCPP-1.6 (JSON)
HMI 4.3 inch LCD
Insulation resistance 1000VDC≥10MΩ
Dielectric Strength AC2500≤10mA(input/output to ground)
Connector type IEC 62196-2
Standards IEC 61851-1, IEC 62196-1/2
Ingress Protection(IP/IK rating) IP55
Installation method wall mount/Floor standing
Shell material (PC+ABS)-Blend
Product Dimension 300mm*420mm*153.8mm
Operating Temperature -30℃-60℃
Storage Temperature -40℃-80℃
Altitude ≤2000m
Operating Humidity ≤95%, non-condensing

7 Kw Type 1 Ev Charger Wallbox Single Phase Smart Home Electric Car Charger Station

7 Kw Type 1 Ev Charger Wallbox Single Phase Smart Home Electric Car Charger Station

7 Kw Type 1 Ev Charger Wallbox Single Phase Smart Home Electric Car Charger Station

7 Kw Type 1 Ev Charger Wallbox Single Phase Smart Home Electric Car Charger Station

7 Kw Type 1 Ev Charger Wallbox Single Phase Smart Home Electric Car Charger Station

Such kind smart wall box is widely used by our clients just like our portable evchargers.You can use anytime you want and charger your car faster than common3.7kw protable charger in public place

7 Kw Type 1 Ev Charger Wallbox Single Phase Smart Home Electric Car Charger Station
