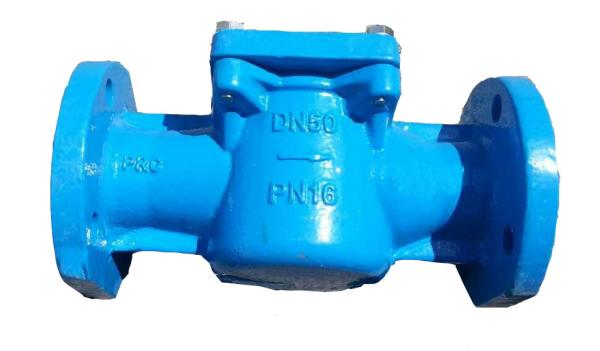

OEM Water Meter Strainer DN50 ~ DN200 , Filter Size 20 / 40 / 60 / 80 Mesh
OEM Water Meter Strainer DN50 ~ DN200 , Filter Size 20 / 40 / 60 / 80 Mesh
OEM Water Meter Strainer DN50 ~ DN200 , Filter Size 20 / 40 / 60 / 80 Mesh
OEM Water Meter Strainer DN50 ~ DN200 , Filter Size 20 / 40 / 60 / 80 Mesh
Specifications
Brand Name :
OEM
Model Number :
YS
Certification :
WRAS/ ISO 9001
Place of Origin :
Shanghai, China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
T/T advance or L/C at sight
Supply Ability :
90,000pcs per month
Delivery Time :
1usually within 35 days after received your payment
Packaging Details :
Usually packing by plywood case suit for sea delivery
end connection: :
Flange
Design pressure. :
PN10 ~PN16
Filter mesh size. :
as your requirement(20/40/60/80mesh etc.,)
Design specific fluid gravity. :
Design specific fluid gravity.
Body :
Ductile iron GGG 40 / GGG 50 , Cast Iron GG25
Filter/ Screen :
SS 304 / SS 316 / Stainless steel
Size :
DN 50~ DN200
Medium :
Water, Oil, Gas Etc.,
Description

Straight Basket Type GGG40 Epoxy Coating Water Meter Strainer DN50 ~ DN200

Specifications:

Installstion dimensions

DN(mm)

A

B

C

D

E

H

L

P

T

50

165

42

125

19

4

170

300

19

8

80

200

70

160

19

8

205

350

19

8

100

220

85

180

19

8

235

350

19

8

200

340

170

295

22

12

360

500

22

12

OEM Water Meter Strainer DN50 ~ DN200 , Filter Size 20 / 40 / 60 / 80 Mesh OEM Water Meter Strainer DN50 ~ DN200 , Filter Size 20 / 40 / 60 / 80 Mesh

Description:

Water meter Strainers consist of three basic components: the main case, the screen and the top plate.

The main case and top plate are made of Epoxy coated cast iron. The screen is made of high strength

stainless steel.

Construction material. :

NO.

Part

Material

Description

1

body:

GGG 50

Ductile iron

2

cover:

GGG 50

Ductile iron

3

sleve:

AISI 316

Stainless steel

4

cover bolt:

A2

Stainless steel

5

washer:

A2

Stainless steel

6

O-ring:

EPDM

Rubber

7

sleve bolt:

A2

Stainless steel

OEM Water Meter Strainer DN50 ~ DN200 , Filter Size 20 / 40 / 60 / 80 Mesh

Applications:

Water meter Strainers are designed to protect cold or hot water meters from debris and foreign mater

extending the life of the meter The strainer should be installed immediately upstream from the meter.

Competitive Advantage:

Water meter Strainers are designed to protect cold or hot water meters from debris and foreign mater extending the life of the meter
