Screen Mesh CUSTOM flanged foot valve With Stainless Steel Screen Strainer
Screen Mesh CUSTOM flanged foot valve With Stainless Steel Screen Strainer
Screen Mesh CUSTOM flanged foot valve With Stainless Steel Screen Strainer
Screen Mesh CUSTOM flanged foot valve With Stainless Steel Screen Strainer
Specifications
Brand Name :
OEM
Model Number :
H42X
Certification :
WRAS/ ISO 9001
Place of Origin :
Shanghai , China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
T/T advance or L/C at sight
Supply Ability :
90,000pcs per month
Delivery Time :
1usually within 35 days after received your payment

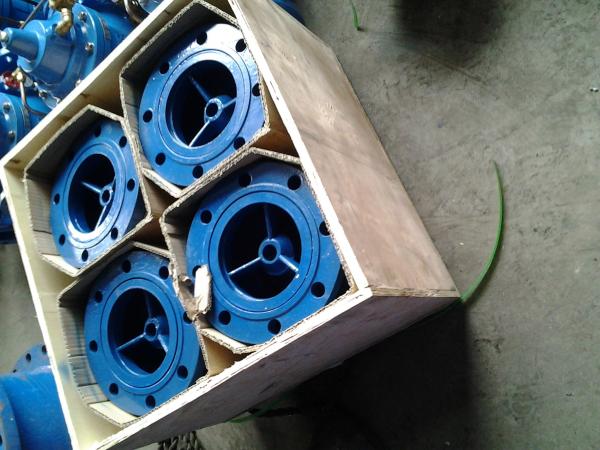

Packaging Details :
Usually packing by plywood case suit for sea delivery
Application :
Sewage, water etc.,
Size :
DN15 ~DN300
Pressure :
PN16 / 150lbs
standard :
DIN/BS/AWWA/JIS
Temperature :
-20~120 C
body :
Cast iron/ ductile iron/ stainless steel
Strainer/filter :
Stainless steel/ SS304/SS316
Surface :
Epoxy Powder Coating / Painting
Screen :
SS304 / SS316
Description

Screen Mesh CUSTOM flanged foot valve With Stainless Steel Screen Strainer

Working Principle

Foot valve consists of cover, disc, bush, seal ring, etc.

Water enter into the valve body through cover. Under the influence of flow pressure, disc will be opened.

When stop, pressure in the oulet pipe will close the disc instantly, water will not flow back to water

source. It effects the functions of smooth pumping and saves water loss.

Screen Mesh CUSTOM flanged foot valve With Stainless Steel Screen Strainer

Description:

Foot valve is a kind of energy saving valve, usually installed at the bottom of pump suction pipe, to

prevent medium in the pipe flow back to water source. There are many inlet holes and reinforcing ribs

in the valve cover, so the pipe will not be easily clogged up.

Material

Body

Cast iron/Ductile iron

Disc

Cast iron/Ductile iron

Disc ring

iron with NBR seal

Spring

Stainless steel/Steel with zinc

Screen

Stainless steel / Steel zinc plated

Design

Face to face is according to ISO STANDARD

Flange drilled is according to DIN,BS,JIS,ANSI etc

Test

Working pressure

PN10/PN16

Class125/150

Shell pressure

PN15/PN24

300PSI

Seat pressure

PN11/PN17.6

200PSI

Dimension unit:mm
Size(DN) 50 65 80 100 125 150 200 250 300
h 166 201 221 265 300 360 580 568 653
Remark: Our design can be suitable for all standard(BS,DIN,ANSI,JIS standard etc.)

Applications:

* unidirectional valve used to prevent medium from backflow

* only used at the inlet of various pumps

* prevent impurity enter into pipes

Screen Mesh CUSTOM flanged foot valve With Stainless Steel Screen Strainer
