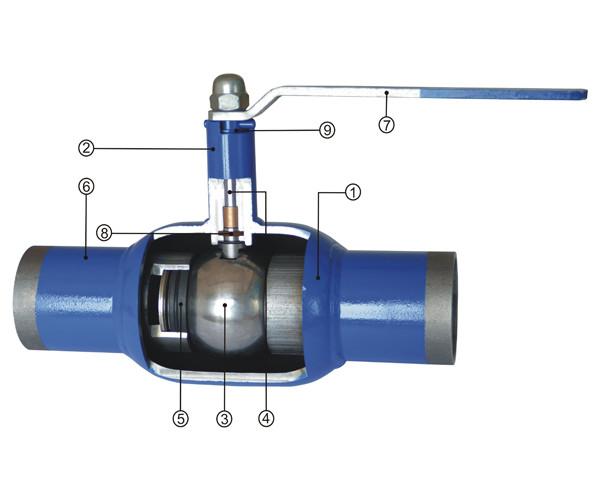

Fully Welded Floating Ball Valve For Underground Installation Minimum Flow Resistance

Floating Ball Valve Technical Specifications

Product Description:

The fully-weled ball valve adopts forged material , welded body, instead of bolts and nuts,to aviod any potential leakage from body.

The forged body with regular structure and even thickness can avoid shrinkage cavities, pin holes, cracks, sand holes and other defects occurring to casted valves.

Technical Specifications

Floating Ball Valve Application:

Long distance pipe lines for petroleum, chemical industry, metallurgy, light industry, power station,

urban construction water supply, as well as oil, gas and natural gas transmission and so on

Body Material : ASTM A216 WCB

Ball and Trim Material : Stainless Steel

Lever Material : Forged steel with Zn coated

Seat Material : PTFE

Working Temperature : 05°C to 50°C

Working Pressure : 150 Psig./350 Psig.

Fluid to be handled : Natural Gas

(Odorized) containing 0.5% CO2 by volume.

API 6D Certificate

Description:

The ball valve is designed and manufactured according well to API 608. Floating ball when small caliber,

and fixed ball when large caliber.

It has fire protection structure and antistatic device. Widely used for petroleum, chemistry, water

treatment industries.

Features:

- Anti-blowout Structure of Valve Stem

When medium pass through the valve, the pressure in valve body may possibly push the stem out, or

when the valve is in repair, if there is pressure in the middle cavity, the stem or medium seems to easily

fly out upon disassembling the valve, which can cause injures to human beings, To prevent the

possibilities, a dummy club is packing and thrust bearing are burnt or packing is damaged due to other

causes, the pressure of medium in valve body will make the dummy club of valve stem in close contact

with the upper seal face of valve body. Thus to prevent medium leaking out from the damage packing

position.

- Reliable Seal Structure

The seat is made of PTFE. Because the contact area between seat and the ball will becomes more high

with rising of pressure of the middle cavity, Small Resistance ball valve has the smallest resistance of all

the valve, in the case of reduced bore, the resistance is little still.

-Prompt switch

The ball valve circumrotates in 90°,It work quickly to open or close.

Type	Size(mm)		Dimension(mm)
	inch	DN	L	D	D1	D2	b	Z-Φd	H	W
Q41F/H/Y-600Lb Q341F/H/Y-600Lb Q641F/H/Y-600Lb	1/2″	15	165	95	66.5	35	15	4-Φ15	88	115
	3/4″	20	190	118	82.5	43	16	4-Φ19	98	130
	1″	25	216	124	89	51	18	4-Φ19	105	150
	11/2″	40	241	156	114.3	73.2	23	4-Φ22 Product tags three way flanged valves , ball valve construction , drill pipe float valve Send your message to this supplier Message* Email* Phone or WhatsApp* Name Company Please reply me within 24 hours. Yes! I would like your verified suppliers matching service! Send Now Submission successful! Fully Welded Floating Ball Valve For Underground Installation Minimum Flow Resistance Ask Latest Price Product Detail Brand Name : OEM Model Number : Q61 Certification : WRAS/ ISO 9001 Place of Origin : Shanghai , China MOQ : 1pcs Price : negotiation Contact Supplier Shanghai kangquan Valve Co. Ltd. Active Member 11 Years shanghai, shanghai Since 1999 Business Type : Manufacturer Main Products : Resilient Seated Gate Valve, Cast Steel Gate Valve, Water Meter Strainer Total Annual : >9，600,000 Employee Number : >228 Certification Level : Active Member Discover similar products Automatic Trunnion Mounted Ball Valve , 2 Way Floating Ball Check Valve Contact Now Flange Floating Ball Valve Carbon Steel Q341F/H/Y-300Lb / Forged Ball Valve Contact Now Water Floating Ball Valve With Lock NPT BSPT BSPP Connect 150lbs ~ 2500lbs Contact Now CF8 / CF8M / CF3M 1-PC Floating Ball Valve Stainless Steel Thread End Q41F/H/Y Contact Now Floating Two Piece Ball Valve DIN / BS / ANS I/ JIS / API / ASME For Oil And Gas Contact Now Stainless Steel CF8 / CF8M / CF3M 2 - PC Floating Ball Valve Female Threaded Contact Now 4 Inch Industrial Floating Ball Valve 2 Piece PN16 ~ PN160 Q641 F/H/Y-150Lb Contact Now Miniature SUS316 Floating Ball Valve 3/4" 3/8" Q341 F/H/Y-150Lb , API 608 Ball Contact Now DN15 ~DN100 Floating Type Ball Valve / Stainless Steel Ball Valve Compact Contact Now PN16 - PN160 Metal Seated Ball Valves Cast Steel Body Corrosion Resistance Contact Now View More Find Similar Products By Category: Supplier Homepage Products Floating Ball Valve MachineU China Products Tools & Hardware Valve Valves Contact Supplier Message* Email* Phone or WhatsApp* Name Company Submit Requirement Please reply me within 24 hours. Yes! I would like your verified suppliers matching service! Submitted successfully! Your request message has been successfully sent to the supplier. Please keep in touch and they will contact you as soon as possible. OK
