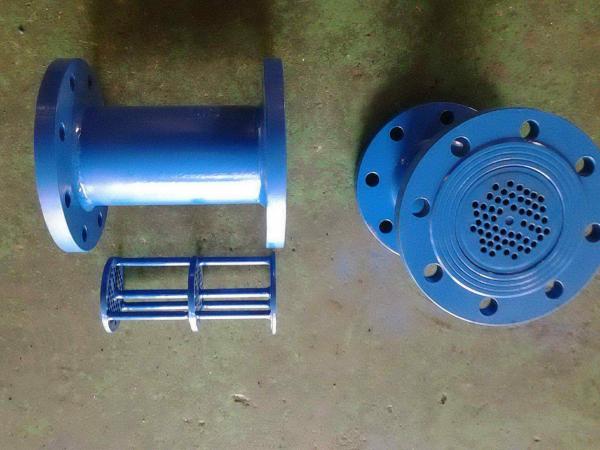

Y Type Industrial Water Strainers , Stainless Steel Suction Strainer
Y Type Industrial Water Strainers , Stainless Steel Suction Strainer
Specifications
Brand Name :
OEM
Model Number :
263-16
Certification :
WRAS/ ISO 9001
Place of Origin :
Shanghai, China
MOQ :
negotiation
Price :
negotiation
Payment Terms :
T/T advance or L/C at sight
Supply Ability :
90,000pcs per month
Delivery Time :
1usually within 35 days after received your payment
Packaging Details :
Usually packing by plywood case suit for sea delivery
Name :
Industrial Water Strainers
Type :
Y Type
Filter :
Stainless Steel Filter
Design specific fluid gravity. :
Design specific fluid gravity.
Body :
PVC
Material :
Stainless Steel Suction Strainer
Size :
DN 15~DN50
Medium :
Water, Oil, Gas Etc.,
Description

Y Type Industrial Water Strainers , Stainless Steel Suction Strainer

Industrial Water Strainers Mail part & material

Body: gray cast iron, cast iron, ductile iron

Filter: stainless steel

O-ring: NBR

Industrial Water StrainersTechnical Specification

- Nominal diameter:65～500mm

- Nominal pressure:1.0/1.6/2.5Mpa

Industrial Water Strainers FEATURES
• Iron strainers are complete with Flat Face (Series 125YF) or Raised Face (Series 250YF)
flanges in accordance with ASME B16.1.


• Strainer body meets applicable ASME Standard.


• One piece cast body.


• 304 SS perforated screens are standard.


• Drain/Blow-off connection furnished with plug as standard.


• Generous screen area and properly proportioned straining chamber to minimize initial pressure

drop while maximizing time between cleanings.


• Compact end to end dimension.

STRAINER INSTALLATION INSTRUCTIONS
A . Ensure all machined surfaces are free of defects and that the inside of the
strainer is free of foreign objects.
B . For horizontal pipelines, the strainer should be installed so that the drain
connection is pointed downwards.
C . For flanged end strainers, the flange bolting should be tightened gradually in
a back and forth clockwise motion.
D . Once installed, increase line pressure gradually and check for leakage around joints
E . If the strainer is supplied with a start-up screen, monitor pressure drop carefully.

Y Type Industrial Water Strainers , Stainless Steel Suction Strainer

SIZE INCH 2 2½ 3 4 5 6 8 10 12 14 16 18
MM 50 65 80 100 130 150 200 250 300 350 400 450
A INCH 7.875 10 10.125 12.125 15.625 18.5 21.625 25.75 30 33.25 38.75 43.12
MM 200 254 257 308 397 470 549 654 759 846 984 1095
B INCH 5.25 6.5 7.5 9 13.125 15.75 18 18.5 22 28.625 30 31
MM 133 165 190 227 335 401 457 471 557 727 762 788
C INCH 2 2.5 3 4 5 6 8 10 12 14 16 18
MM 51 65 76 102 127 152 203 254 305 356 406 457
Weight kgs 13 16 21 30 43 60 90 140 175 392 627 1032

Y Type Industrial Water Strainers , Stainless Steel Suction Strainer

DN

G

L

E

B

H

6

1/4"

65

11.5

24

42

10

3/8"

65

13

24

42

15

1/2"

65

14

26

43

20

3/4"

80

15

32

50

25

1"

89

17

41

60

32

1-1/4"

105

20

49

64

40

1-1/2"

120

20

56

70

50

2"

140

22

69

88

Specification

Nominal pressure(Mpa)

PN

2.5,4.0

Strength testing pressure(Mpa)

PT

3.8,6.0,9.6

Low pressure seal test(Mpa)

　

0.6

High pressure seal test(Mpa)

　

2.8,4.4,7.04

Applicable medium

water, oil, gas, nitric acid, acetic acid

Applicable temperature

-40～180℃

Main part & material

Part name

Material

body

WCB,ZG1Cr18Ni9Ti,CF8,CF8M

Mesh

1Cr18Ni9Ti 304,316

stem

1Cr18Ni9Ti 304,316

packing

Polytetrafluoroethlene(PTFE)
