Resin Bond Diamond Grinding Wheel Diamond Wheel For Sharpening Tct Carbide
Resin Bond Diamond Grinding Wheel Diamond Wheel For Sharpening Tct Carbide
Resin Bond Diamond Grinding Wheel Diamond Wheel For Sharpening Tct Carbide
Resin Bond Diamond Grinding Wheel Diamond Wheel For Sharpening Tct Carbide
Resin Bond Diamond Grinding Wheel Diamond Wheel For Sharpening Tct Carbide
Resin Bond Diamond Grinding Wheel Diamond Wheel For Sharpening Tct Carbide
Resin Bond Diamond Grinding Wheel Diamond Wheel For Sharpening Tct Carbide
Resin Bond Diamond Grinding Wheel Diamond Wheel For Sharpening Tct Carbide
Specifications
Brand Name :
Shine Abrasives
Model Number :
4V2 1A1 14A2
Certification :
ISO
Place of Origin :
China
MOQ :
2 pcs
Price :
FOB
Payment Terms :
L/C, T/T
Supply Ability :
1000 PCS in one week
Delivery Time :
5 work days
Packaging Details :
one in paperbox
Bond Type :
Resin Bond
Arbor Hole :
5/8 inch
Maximum Operating Speed :
6000-12000 RPM
Wheel Structure :
Varies
Bond Hardness :
Medium
Wheel Bond :
Resin
Design :
Standard, Customized
Surface Finish :
Customized
Bonding :
resinoid
Wheel Type :
Straight
Life Span :
Long
Wheel Color :
Varies
Country Of Origin :
China
Speed :
High
Grit :
Customized
Description

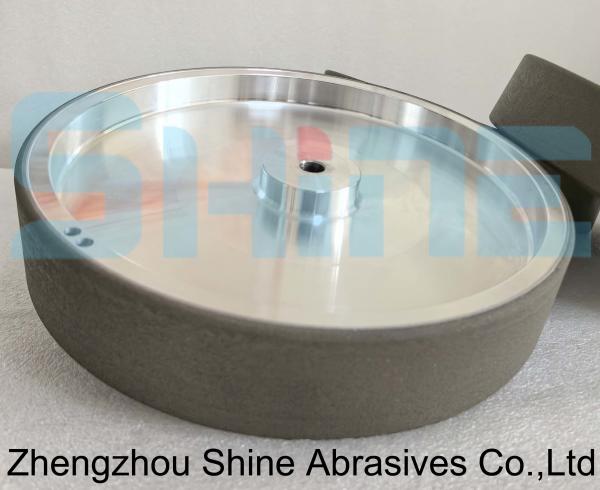

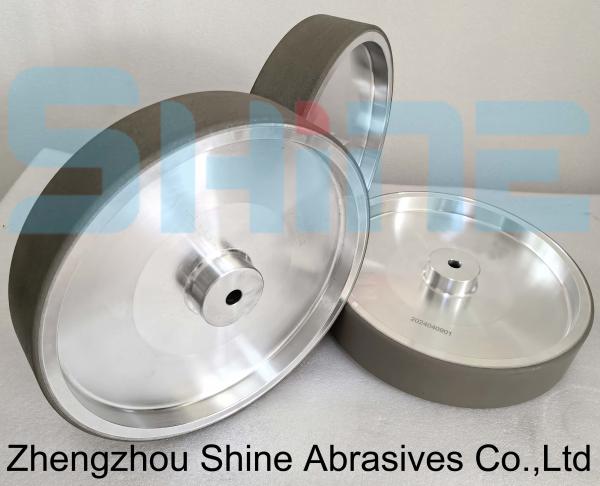

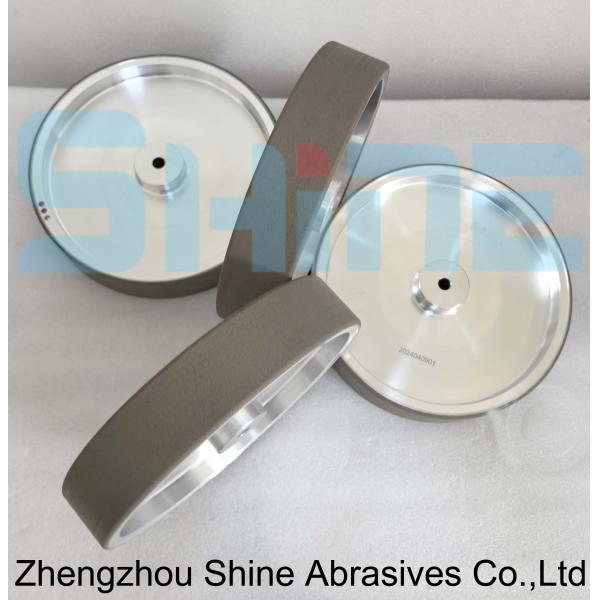

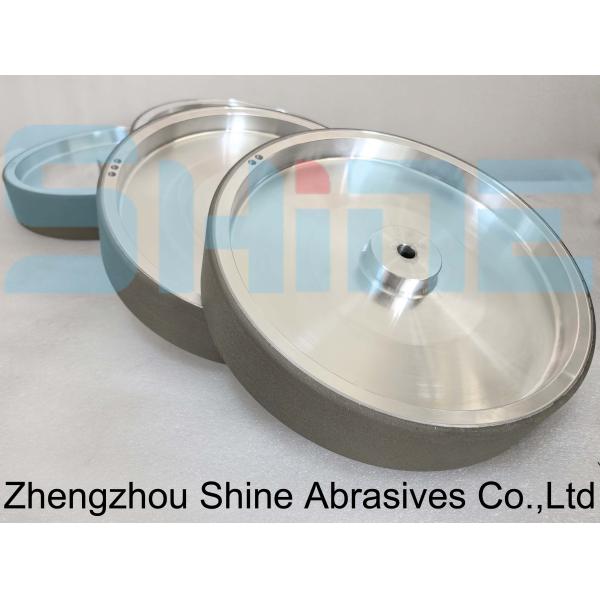

Resin Bond Diamond Grinding Wheel Diamond Wheel for Sharpening Tct Carbide

The flat resin diamond grinding wheel is mainly used for cylindrical grinding and cutting edge processing of cemented carbide.

Diamond & CBN centerless wheels are for TCT cutting tools,bearing parts, automobile parts, plungers, cylinders and engine valves.

Type:
1A1 Flat resin bond diamond grinding wheel
Concentration:
50%,75%,125%,150%
Mesh
46#,60#,80#,100#,120#(coarse grinding);
120#,150#,180#,200#,240#(medium grinding);
280#,320#,400#,500#,600#(fine grinding);
800#,1000#,1200#,1500#,2000#,3000#(polishing)
Specification:
D75-H10-T5-X10 D150-H19-X5-T5
D125-T10-X10-H20/31.75 D100-T10-X10-H20/31.75
D175-H127-X4-T5 D250-H40-X10-T3
D300-H127-X10-T40 D350-H127-T20-X10
D400-H127-T40-X10 D500-H203-X10-T32
Specification sizes can be customized
Application:
hard alloy,high alumina porcelain,optical glass agate gemstone, semiconductor material,ceramics,stone,etc
The specifications are basically complete, and some specifications are not marked. Pleasecontact
customer service if necessary. Can also be customized
1. Good self-sharpening and sharp cutting.
2. High efficiency and high precision.
3. High resistence and best polishing.
4. Low roughness of work piece surface.
5. Less heat generating.
6. Without burning work piece.
Resin Bond Diamond Grinding Wheel Diamond Wheel For Sharpening Tct Carbide
Resin Bond Diamond Grinding Wheel Diamond Wheel For Sharpening Tct Carbide
