Shine Abrasives 1A1R Diamond Wheels 100x1.0x20 Cbn Cutting Wheel
Shine Abrasives 1A1R Diamond Wheels 100x1.0x20 Cbn Cutting Wheel
Shine Abrasives 1A1R Diamond Wheels 100x1.0x20 Cbn Cutting Wheel
Shine Abrasives 1A1R Diamond Wheels 100x1.0x20 Cbn Cutting Wheel
Shine Abrasives 1A1R Diamond Wheels 100x1.0x20 Cbn Cutting Wheel
Shine Abrasives 1A1R Diamond Wheels 100x1.0x20 Cbn Cutting Wheel
Specifications
Brand Name :
Shine Abrasives
Model Number :
1A1R
Certification :
ISO
Place of Origin :
CHINA
MOQ :
5 PCS
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
5000 PCS per week
Delivery Time :
5 working days
Packaging Details :
5 pcs in one paper box
Shape :
1A1R
Bond :
Resin
Diameter :
100mm
Grit Size :
100#
Thickness :
1.0mm
HS Code :
8207901000
Description

Shine Abrasives 1A1R 100x1.0x20 D126 Diamond Cutting Wheels

Shine Abrasives 1A1R Diamond Wheels 4 Inch 100mm diameter For Tungsten Carbide tools Cutting

the cutting off wheels with Resin bond, the thickness is 1.0mm, the wheels bore is 20mm.

Shine Abrasives 1A1R cutting off wheels are available diameter range from 50mm to 400mm

and thickness from 0.2 to 2mm.

The matrix-type diamond cutting disc means that the outer ring belt of the grinding wheel is the abrasive working layer,

and the central part is made of high-strength and high-rigidity metal material. Since the high-rigidity metal material is used as the steel core and the working layer of the outer ring, the With high rigidity, high load and deep cutting can be realized. It is generally slightly thicker in size.

Due to its good rigidity, it is mostly used for grooving and cutting of medium and large cutting depths, such as cutting of carbide bars.

Drawing of Shine Abrasives 1A1R 100x1.0x20 D126 Diamond Cutting Wheels

Shine Abrasives 1A1R Diamond Wheels 100x1.0x20 Cbn Cutting Wheel

Main sizes form of Shine Abrasives 1A1R 100x1.0x20 D126 Diamond Cutting Wheels

Abrasive Material:Diamond Bond Type:Resin
Diamond Grit:D126 Wheel Diameter: 4inch 100mm
Wheel Bore:20mm Rim width:5mm
Wheel Thickness:1.0mm Wheel core: Steel

Other standard sizes also are available as requested.

Shine Abrasives 1A1R Diamond Wheels 100x1.0x20 Cbn Cutting Wheel

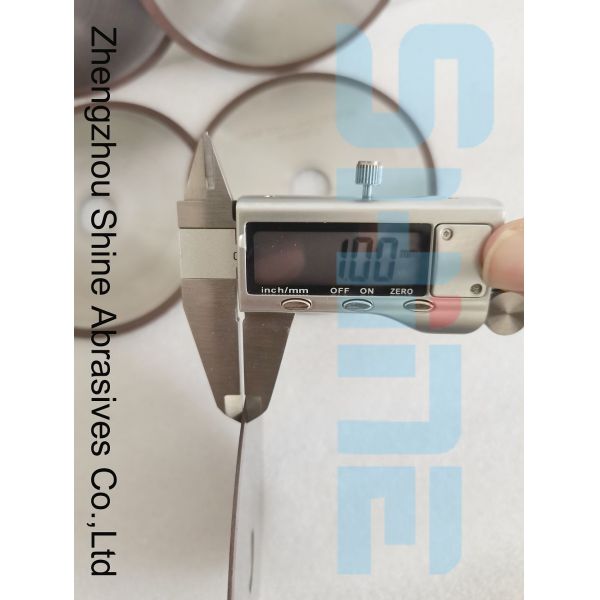

1.0mm thickness picture as below.

Features of Shine Abrasives 1A1R 100x1.0x20 D126 Diamond Cutting Wheels

High good quality diamond abrasives and experienced resin bond for free cutting.

Long time wheel working life.

Cost-efficient.

Fast delivery for usual sizes.

Application picture for reference.
Shine Abrasives 1A1R Diamond Wheels 100x1.0x20 Cbn Cutting Wheel
Attention:Workers should ensure that you are fully informed on the safe operation of abrasive cutting and grinding wheels
