ISO CNC Grinding Wheels Resharpening Diamond Cbn Grinding Wheels
ISO CNC Grinding Wheels Resharpening Diamond Cbn Grinding Wheels
ISO CNC Grinding Wheels Resharpening Diamond Cbn Grinding Wheels
ISO CNC Grinding Wheels Resharpening Diamond Cbn Grinding Wheels
Specifications
Brand Name :
Shine Abrasives
Model Number :
1A1-1V1-11V9
Place of Origin :
CHINA
MOQ :
2 PCS
Payment Terms :
L/C, T/T
Supply Ability :
500 PCS per week
Delivery Time :
5 working days
Packaging Details :
1 pcs in one paper box
Certification :
ISO
Shape :
1A1 1V1
Diameter :
75mm 100mm 125mm
Bond Type :
Hybrid or Metal
Grit Size :
D64
Diamond Rim Size :
10x10mm
HS Code :
6804211000
Description

CNC Grinding Wheels Diamond for carbide round tools manufacture or resharpening.

Shine Abrasives CNC Diamond and CBN wheels are application for carbide and steel round tools manufacture or

resharpening by CNC grinder. fluting, end fluting, gashing, and OD relief.

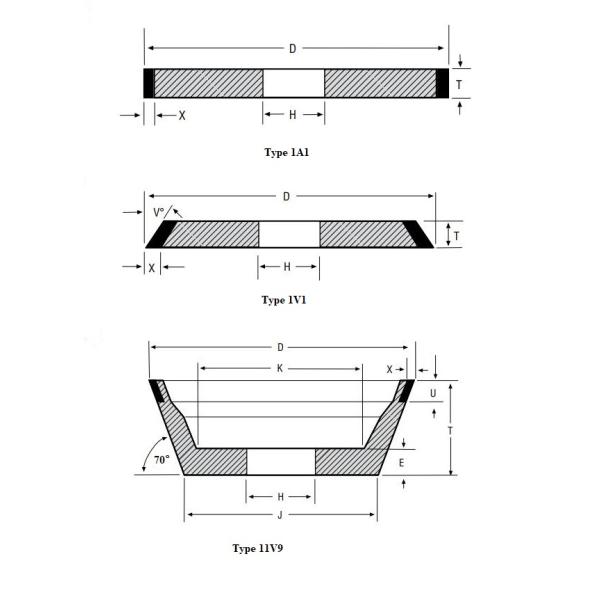

The drawing of Shine Abrasives CNC Grinding Wheels Diamond for carbide round tools manufacture or resharpening.

ISO CNC Grinding Wheels Resharpening Diamond Cbn Grinding Wheels

The typical and standard sizes form of Shine Abrasives

CNC Grinding Wheels Diamond for carbide round tools manufacture or resharpening.

Wheel

type

D

Diameter

T or U

Wheel

Thickness

H

Hole

X

Diamond

Or

CBN depth

T or U

Diamond

Or

CBN thickness

V°Angle

Diamond

Or

CBN

Grit size

1A1

 75mm

10mm

12mm

15mm

20mm

customized

20mm

31.7mm

32mm

customized

5mm

10mm

10mm

12mm

15mm

20mm

customized

/

D64

D46
100mm
125mm

1V1

 100mm

20°

30°

45°
125mm
150mm

11V9

 75mm 35mm

3mm

10mm

/
100mm 45mm
125mm 45mm

Other standard types and sizes also are available as requested.

Features:

Top quality CBN and diamond abrasives.

Special metal or hybrid bond.

Highest high form-holding

Wear and load resistance to achieve superior grinding and cutting performance

Wheels with long time lasting sharp cutting edges.

Economical for round tools manufacture.

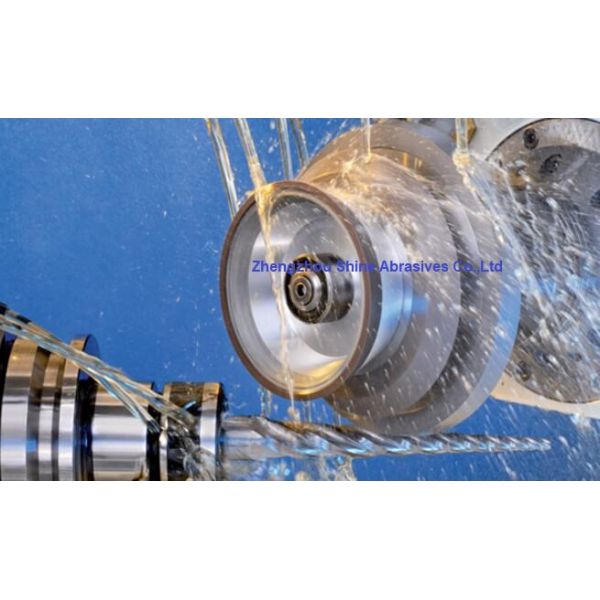

Application picture for reference

ISO CNC Grinding Wheels Resharpening Diamond Cbn Grinding Wheels
