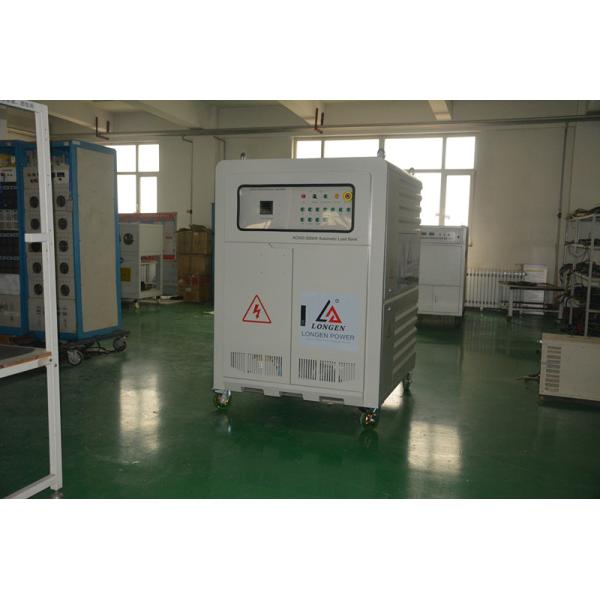

600kw Grey Color Portable Electrical Load Bank With ISO Approvement
600kw Grey Color Portable Electrical Load Bank With ISO Approvement
Specifications
Brand Name :
KAIXIANG
Model Number :
600KW
Certification :
ISO9001
Place of Origin :
HEBEI CHINA
MOQ :
ONE SET
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram, D/P
Supply Ability :
20 SETS ONE MONTH
Delivery Time :
ONE MONTH AFTER GET DEPOSIT
Packaging Details :
WOODEN CASE
Rating Voltage :
400VAC/50Hz, 3 phase 4 wir
Rated Load Power :
Resistive load: 600kW
Rated Voltage :
400 VAC
Installed Capacity :
Resistive load: 600kW
Load Tolerance(overall) :
±3%
Control Power :
380VAC/50Hz, 3 phase 4 wir
Description

600kw Red Color Portable Electrical Load Bank With ISO

Product Description

The system can accurately test output power and load capacity with all kinds of generators. System consists of testing/control and load bank, mainly includes AC load bank, data capture system, auto load/unload control system, heat dissipation device, assist control and PC software. User can control load bank through local control panel, also through software.

Technical Parameters

Rating Voltage/Frequency 400VAC/50Hz, 3 phase 4 wire,
Rated Load Power Resistive load: 600kW
Installed Capacity Resistive load: 600kW
Load Step 1,2,2,5,10,10,20,50,100,200,200kW, min step load: 1kW
PF(Power Factor) 1
Load Tolerance (each step) ±5%
Load Tolerance(overall) ±3%
Display Precision 0.5 class
Control Power 380VAC/50Hz, 3 phase 4 wire,
Wire Connection

Load power supply input——busbar
Control power supply input——terminal block
Insulation F
Duty Cycle Continuous
Casing Dimensions and Cooling about 1550*1250*1680mm (length*width*height) Forced air cooling,Horizontal inlet air,Horizontal outlet air
Weight About 750kgs/set
Transportation Hoisting, there are lifting lug in top of casing
Casing Color Grey(RAL7035)
Ambient Temperature -10℃～+50℃
Relative Humidity ≤95%
Altitude ≤1500 meter
Atmospheric Pressure 86～106kPa
Contactor Schneider
Fuse DELIXI
MCU INFINEON
Data processing software Kaixiang(self-developed)
Alloy Resistance Kaixiang(self-developed)


Product Advantage

1.Control Mode: local, remote or intelligent control(software) for choosing.
2.Local Control: local control panel with several power steps, load or unload by switch on-off and read parameter values from measuring meter.

Application

1.Manufacturers of standby power generators commonly use load banks to test and tune newly assembled units
2.generator has been set up in a test cell within the factory, a test engineer uses the load bank to apply a discrete, selectable electrical load to the generator and measure the response stability and endurance.
3.During this process, the test engineer calibrates and adjusts the generator performance to ensure it meets the intended product specifications and tolerances.

600kw Grey Color Portable Electrical Load Bank With ISO Approvement
